Quick Details
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
3.2
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
OLT
-
Voltage:
-
AC 220V/50Hz / AC 380V/50Hz
-
Dimension(L*W*H):
-
2200*2600*1540mm
-
Weight (KG):
-
1400
-
Weight:
-
1000kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field installation, commissioning and training
-
Product name:
-
4 axis cnc router machine 1325 wood carving machine for advertisment
-
Spidle:
-
3KW variable speed , water-cooled
-
Processing accuracy:
-
0.01mm
-
Power(W):
-
3KW
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
3.2
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
OLT
-
Voltage:
-
AC 220V/50Hz / AC 380V/50Hz
-
Dimension(L*W*H):
-
2200*2600*1540mm
-
Weight (KG):
-
1400
-
Weight:
-
1000kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field installation, commissioning and training
-
Product name:
-
4 axis cnc router machine 1325 wood carving machine for advertisment
-
Spidle:
-
3KW variable speed , water-cooled
-
Processing accuracy:
-
0.01mm
-
Power(W):
-
3KW

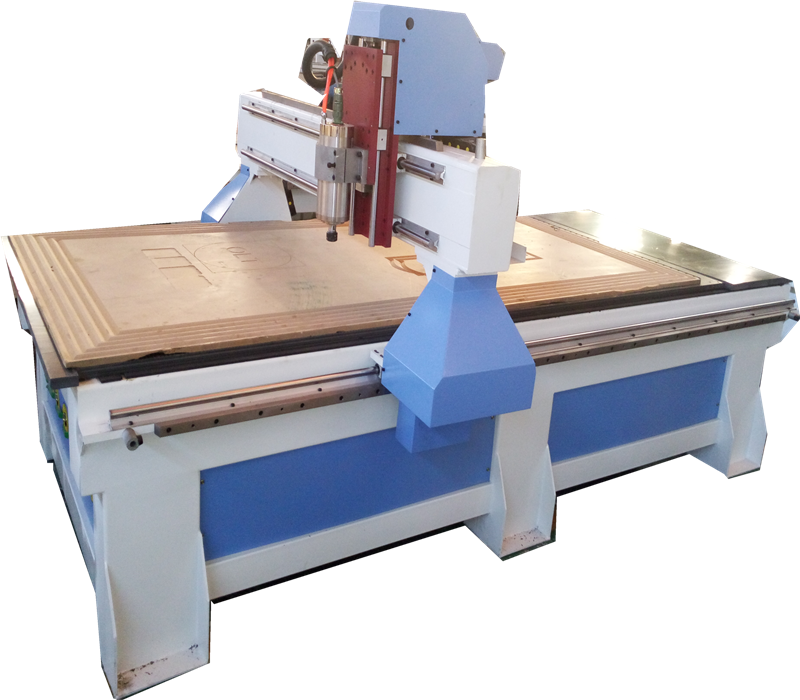

Wood Stone Marble 4 axis cnc router machine 1325 wood carving machine for advertisement
Machine Features
This machine is widely used in woodworking, carving, cutting, engraving, work materials are wood, MDF,
aluminum panels, ABS,acrylic, PVC, a variety of decorative materials.
The machine structure of strong, large cutting force, high speed,suitable for processing large quantities of
material, there are four spindle, it is suitable for processing the same pattern and shape of the plate, twice
the efficiency of an ordinary machine.
1,Solid gantry, well structure of lathe bed ,stable lathe table, fast speed and high accuracy .
2, Highspeed water cooling spindle and high performance subdivision driver ensure to work stably for a long
time.
3, Adopt advanced CNC system (NCstudio or DSP control system), This system have break point memory
mode and special saving made of different points so that can make sure continuous working after electronic
drop or other postpone situation. This function can guarantee the processing precision of long time operation.
configured with practical and easily Clearned software , can conveniently check the moving path of tool, and
adjust the processing depth of Z axis and the speed of motor.
Technical Parameter
|
Description |
Parameter |
|
X,Y Working Area |
1300*2500mm |
|
Z Working Area |
200mm |
|
Resolution |
+0.01mm |
|
Lathe Structure |
Sealed welded steel structure |
|
X,Y Structure |
Rack and pinion transmission |
|
Z Structure |
ball screw, |
|
Max. Idling Speed |
350mm/min |
|
Spindle |
3KW |
|
Spindle Rotate Speed |
0-24000r/min, variable speed |
|
Inverter |
Delta |
|
Working Voltage |
AC380V three phase/ 220V single phase 50Hz |
|
Working Mode |
Stepper Motor |
|
Command |
G code,HPGL,U00,mmg,plt |
|
Operating System |
NC-STUDIO |
|
Diameter of cutter |
φ3.175-φ12.7mm |
|
Cooling Mode |
Water-cooling |
|
Work-holding |
By Clamp |
|
Gross Weight |
1600KG |
Applicable Materials:
Wood, aluminum board, plastic, density board, MDF board, wave board, PVC,
acrylic
,
crystal, light marble
and other nonmetal materials and light metal material
Samples
packing processing
"Careful design, selection of materials, excellent workmanship" is the basicrequirement of our production After machine finished have 3 times test could guarantee high precision
Machine packing
After test ,packing is very carefully,5 picese,then packed into wooden box
Warranty : 2 years warranty period
24 hours technical support by phone, email or skype (email or skype) .
Free traning and friendly English verson manual and operation video CD diskbo
About us
OLT is a bigger manufacturer in the northern of China,with
Advance manufacturer tech,high quality product,High precision and reputation,competitive price,Fast delivery
OLT products is:
cnc router machine/laser cutting engraving machine(YAG&fiber laser machine)/plasma cutting machine
