- Product Details
- {{item.text}}
Quick Details
-
Knitting Method:
-
adjustable
-
Computerized:
-
Yes
-
Gauge:
-
12 GG, 10GG, 18GG
-
Knitting width:
-
72 inch
-
Product Type:
-
upholstery farbic
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SANTA
-
Power:
-
1.5 W
-
Weight:
-
1370 KG
-
Dimension(L*W*H):
-
3330*1270*2170 mm
-
After-sales Service Provided:
-
Online support
Quick Details
-
Type:
-
jacquard
-
Production Capacity:
-
High
-
Knitting Style:
-
Weft
-
Knitting Method:
-
adjustable
-
Computerized:
-
Yes
-
Gauge:
-
12 GG, 10GG, 18GG
-
Knitting width:
-
72 inch
-
Product Type:
-
upholstery farbic
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SANTA
-
Power:
-
1.5 W
-
Weight:
-
1370 KG
-
Dimension(L*W*H):
-
3330*1270*2170 mm
-
After-sales Service Provided:
-
Online support
Product Description

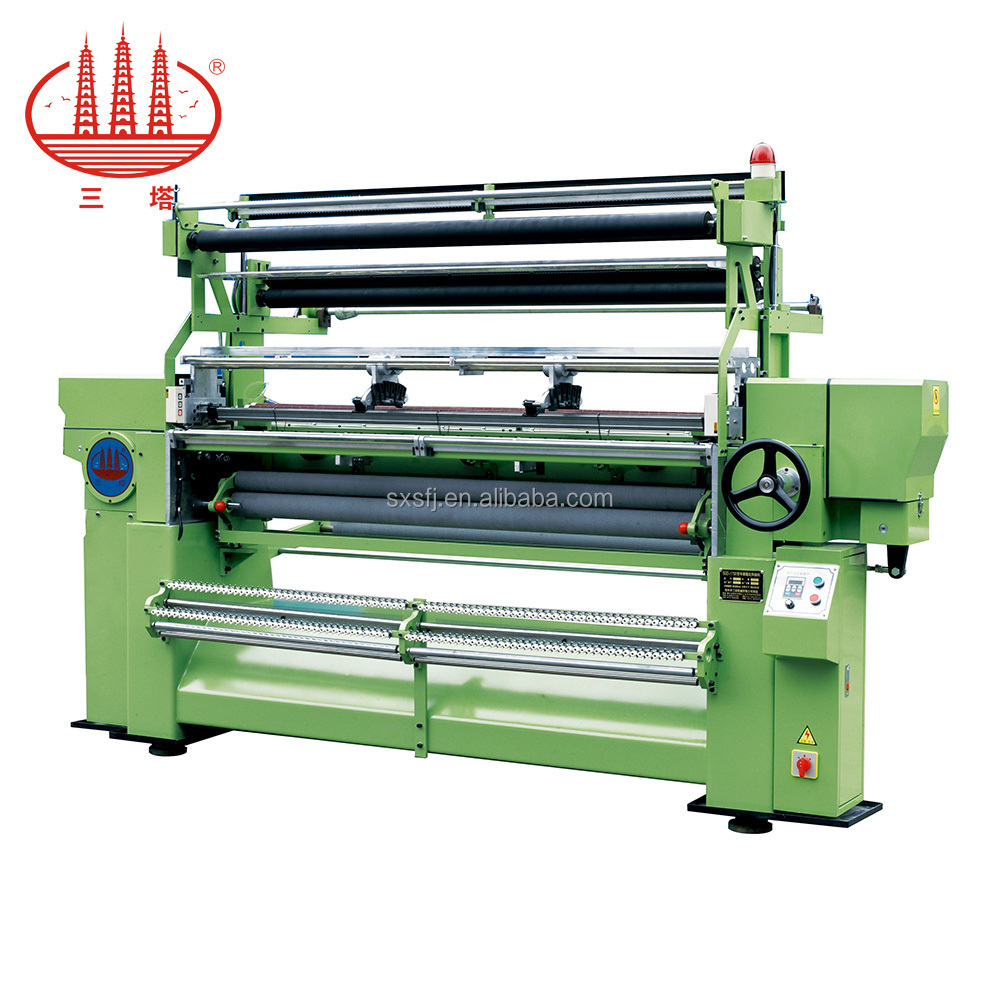

SGD-1700S knitting machine patterns for curtain crochet SGD-1700S Upholstery fabric crochet machine is used to embroider diverse laces for special Jacquard fabrics,such as window curtain fabric,table & towel fabrics,bedding articles,finished garments and different type laces and is a perfect supporting equipment for the knitting and garment-making industries.This machine boasts a simple operation and easy maintenance.All the different laces are obtained by controlling the weft yarns through diversified arrangements of the pattern chain plates.
Technical Parameters
| Operational breadth | 1700mm |
| Gauge | 10,15 |
| Weft bars | 2-6 bars |
| Control device | 1 set |
| Motor | 1.5kw |
| Fabric tension controller | 1 set |
| Finished product collecting roller | 1 set |
| Fabric traversing device | 1 set |
| Bearded needle | 300 pcs |
| Weft guide tubes | 500 pcs |
| Warp needle | 500 pcs |
| Dropper | 600 pcs |
| Link chain | 1 set |
| Tool | 1 set |
| Creel for 260 bobbins | 1 set |
| Net weight of machine | 1250kg |
| Net weight of creel | 120kg |
| Weight of machine and crate | 1650kg |
| Weight of creel and crate | 320kg |
| Crate of machine | 3330*1270*2170 mm |
| Crate of creel | 2860*750*290 mm |
Sample
Packaging & Shipping
| Packing | standard exporting wooden case with waterproof plastic nylon cover inside |
| Shipping | within 20 days after receive your prepayment |
