Quick Details
-
Dimension(L*W*H):
-
950*530*500mm
-
Weight:
-
80kg
-
Length of roller (mm):
-
600
-
Rotate speed of roller(r/min):
-
0-200
-
Certification:
-
CE
Quick Details
-
Voltage:
-
220V
-
Place of Origin:
-
China
-
Brand Name:
-
weizhen
-
Dimension(L*W*H):
-
950*530*500mm
-
Weight:
-
80kg
-
Length of roller (mm):
-
600
-
Rotate speed of roller(r/min):
-
0-200
-
Certification:
-
CE
Product Description

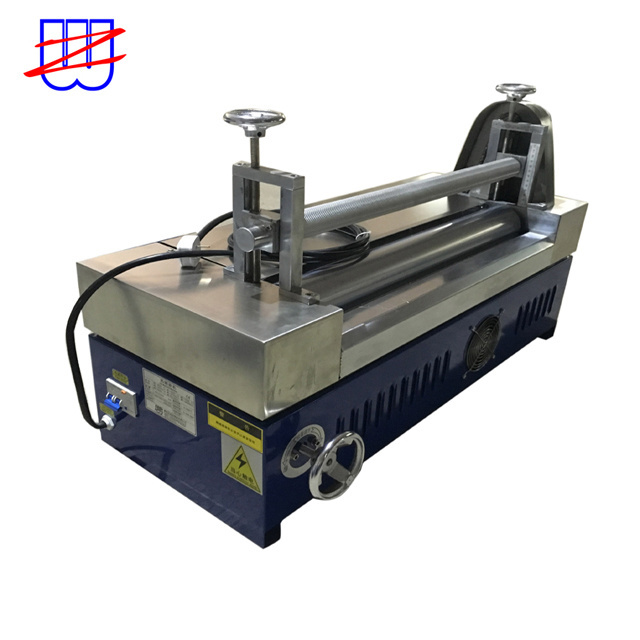

Double roller hot melt glue machine
Used for materials such as EPE, sponge, foam, shoe material, EVA to be coated evenly with hot melt glue.
|
Model
|
WZ-S600L
|
|
Working width
|
600mm
|
|
Working thickness
|
100mm
|
|
Power
|
2.2kw
|
|
Voltage
|
AC220V
|
|
Dimension
|
900*530*320
|
|
Weight
|
90kw
|
Usage
The machine can melt glue glue, then the rolle will run with glue on it, and the machine can stick the epe, eva, sponge, pu and other plastic.
-
Description of application effect
1, Novel design, attractive appearance and compact and rational construct.
2, Intelligent control and easy-operation.
3, Speedy melting glue, the glue spreading and running speed can be adjusted .
4, Fully enclosed construct and no leaking glue.
5, The whole machine has protection functions such as overheat, short circuit, overload and creepage.
6, Especially used for thin and large area of material to be coated.
7, Upper roller can be easily disassembled or assembled.
2, Intelligent control and easy-operation.
3, Speedy melting glue, the glue spreading and running speed can be adjusted .
4, Fully enclosed construct and no leaking glue.
5, The whole machine has protection functions such as overheat, short circuit, overload and creepage.
6, Especially used for thin and large area of material to be coated.
7, Upper roller can be easily disassembled or assembled.
Detailed Images
The machine can melt glue glue, then the rolle will run with glue on it, and the machine can stick the epe, eva, sponge, pu and other plastic.
Size Information
MODEL
|
Model
|
Working width
|
Working thickness
|
Power
|
Voltage
|
Size
|
Weight
|
|
WZ-S600L
|
600mm
|
100mm
|
2.2kw
|
AC220V
|
900*530*320mm
|
90kg
|
|
WZ-S800L
|
800mm
|
100mm
|
3kw
|
AC220V
|
1100*530*320mm
|
125kg
|
Related Products
Packing&Shipping
The grooving machine cut the epe foam by electir heating, it can cut many different depends on changing the cutting mould.The machine make the groove very fast, and automatic feeding.
After Sales Service
After sales
One year free warranty. Componet send to client no need charge, but clients need to bear the transport.
Engineer to factory, client need to pay the transport, visa, living and eating. no need to pay the engineer salary.
