- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LEITENG
-
Model Number:
-
LT-30GF
-
Speed:
-
1500/1800rpm
-
Weight:
-
300kgs
-
Engine::
-
with Perkins, with Weichai, with Yuchai , etc
-
Alternator::
-
Stamford/ Marathon/ Siemens/ Leroysomer/Faraday etc
-
Color::
-
According to clients' requirement
-
Certificate::
-
CE/ISO9001/ISO14001
-
Control panel::
-
Deepsea / Harsen / Smartgen 6110
-
Warranty::
-
12 Months/1000 Hours
-
Rated frequency:
-
50/60HZ
-
Rated output voltage:
-
230V/400V
-
Protection grade:
-
IP22
-
Certification:
-
CE
Quick Details
-
Rated Voltage:
-
230V/400V
-
Rated Current:
-
54A
-
Frequency:
-
50/60HZ
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LEITENG
-
Model Number:
-
LT-30GF
-
Speed:
-
1500/1800rpm
-
Weight:
-
300kgs
-
Engine::
-
with Perkins, with Weichai, with Yuchai , etc
-
Alternator::
-
Stamford/ Marathon/ Siemens/ Leroysomer/Faraday etc
-
Color::
-
According to clients' requirement
-
Certificate::
-
CE/ISO9001/ISO14001
-
Control panel::
-
Deepsea / Harsen / Smartgen 6110
-
Warranty::
-
12 Months/1000 Hours
-
Rated frequency:
-
50/60HZ
-
Rated output voltage:
-
230V/400V
-
Protection grade:
-
IP22
-
Certification:
-
CE
Product Description

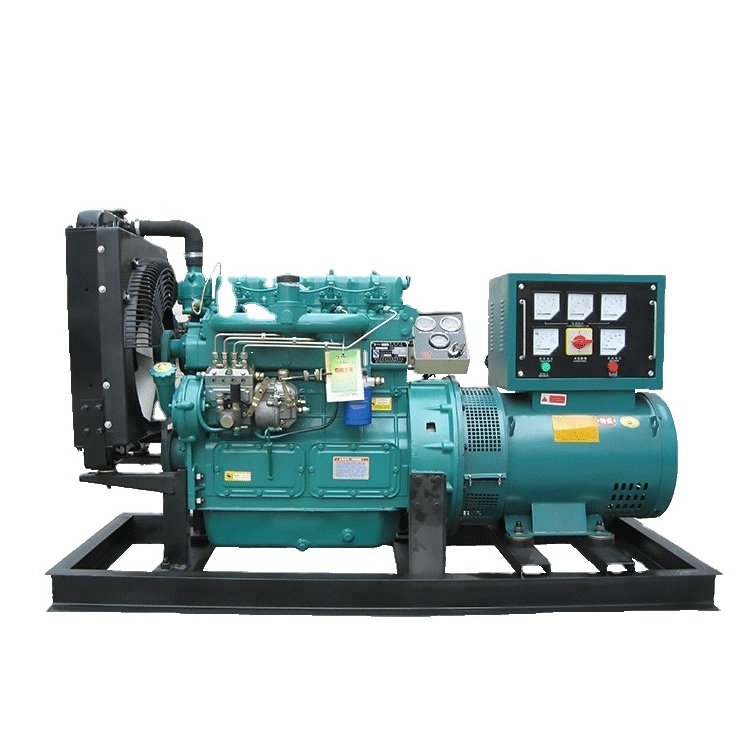

best price 30KW genarators used as standby power
Specification
|
Technical specification parameters of 30KW series diesel generator set
|
|
|
|
|||
|
Unit model
|
LT-30GF
|
Rated power
|
30KW
|
|||
|
Rated output voltage
|
230V/400V
|
Rated power factor
|
0.8
|
|||
|
Rated current
|
54A
|
Insulation grade
|
H
|
|||
|
Rated speed
|
1500/1800rpm
|
Protection grade
|
IP22
|
|||
|
Rated frequency
|
50/60HZ
|
Overall dimension (mm)
|
1800*700*1200
|
|||
|
Voltage Control Methods
|
AVR
|
Overall weight
|
500KG
|
|||
|
Technical specification parameters of diesel engine
|
|
|
|
|||
|
Brand
|
Leiteng
|
Model
|
K4100D
|
|||
|
Cylinders
|
4
|
Speed
|
1500/1800rpm
|
|||
|
Bore * stroke(mm)
|
100*115
|
Power
|
30.1KW
|
|||
|
Displacement
|
3.6
|
Fuel consumption rate
|
209g/kwh
|
|||
|
Type
|
Straight line, four stroke
|
Lubrication mode
|
Pressure and splash type
|
|||
|
Intake mode
|
Direct injection
|
Start-up mode
|
12V DC electric start
|
|||
|
speed regulation
|
Mechanical speed regulation
|
Cooling mode
|
Closed water cooling
|
|||
Certifications
international certification
Company has obtained the export license and record of the Chinese government, and obtained CE certification, ISO9001 certification, ISO14001 certification, GB / T28001 certification, and obtained multiple patents.
OEM
We have established long-term cooperative relations with weichai, Yuchai and Shangchai, which are famous engine manufacturers in China.In 2020, weichai, Yuchai and Shangchai obtained the official OEM agent qualification to provide customers with diesel generator sets with better price advantages
.
