Quick Details
-
Voltage:
-
Customer Request
-
Dimension(L*W*H):
-
500*400*500mm
-
Warranty:
-
1 Year
-
Weight:
-
1t-22t
-
Power:
-
1.5KW - 75 KW
-
Certification:
-
ISO
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Yahua
-
Model Number:
-
XLB-D
-
Voltage:
-
Customer Request
-
Dimension(L*W*H):
-
500*400*500mm
-
Warranty:
-
1 Year
-
Weight:
-
1t-22t
-
Power:
-
1.5KW - 75 KW
-
Certification:
-
ISO

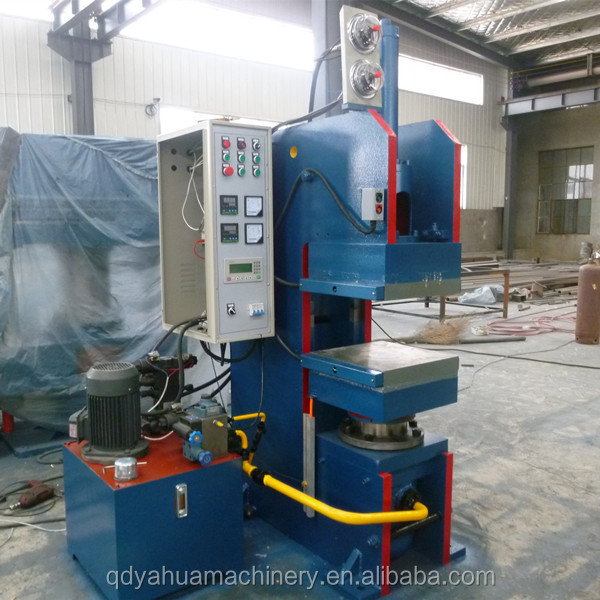

Rubber Rotocure/press Machine
Conveyor belt vulcanizer, also called conveyor belt vulcanizing press or belt vulcanizing press machine. It's vulcanize equipment and tools for repairing & splicing of conveyor belt. It suits for various conveyor belt, such as EP, Rubber, Nylon, Canvas and Steel cord belt, etc.
The belt vulcanizer is dependable, lightweight and portable machine, which is widely used in the field of metallurgy, mining, power plants, ports, building materials, cement, coal mine, chemical industry, etc. Heating plates are available for rhombic, rectangular and modular type (two or more sets of heating plates together).
Universal column type vulcanizing machine
This machine is the main device which is used for pressing and forming various rubber model and non-model products. It can also be used for pressing various thermosetting plastic products. It has independent drive mechanism and electrical system, adopts button to centralized control. Working pressure and heating temperature can be adjust in the range.
It has the function of automatic pressure retrieve and oil pump stops overtime system. Circuit configuration is more reasonable and reliable.
Heating temperature, vulcanizing time, vulcanizing pressure, hydraulic pressure compensation can be set according to your need, easy to operate.
Hydraulic cylinder adopts to independent oil cylinder structure, easy to exchange. Piston adopts chilled cast iron, high wearable and long time use.
User can configure and select machine type according to the characteristic of products.
| type | XLB-D350x350x2 | XLB-D400x400x2 | XLB-D500x500x2 | XLB-D600x600x2/4 | XLB-D750x850x1 |
| nominal mold power(mn) | 0.25 | 0.5 | 0.8 | 1 | 1.6 |
| working layer | 2 | 2 | 2 | 2 | 2 |
| piston stroke(mm) | 250 | 250 | 250 | 300 | 300 |
| plate pressure(Mpa) | 2.04 | 3.13 | 2.4 | 4.94/2.78 | 2.51 |
| main motor power(kw) | 1.5 | 2.2 | 2.2 | 2.2 | 2.2 |
| plate clearance(mm) | 125-200 | 125-200 | 125-200 | 125-250 | 125-250 |
| heating mode | electric oil steam | electric oil steam | electric oil steam | electric oil steam | electric oil steam |
| configuration | column | column | column | column | column |
| electric power(kw) | 1.8 | 2.7 | 3.0 | 2.7/3.6 | 4.8 |
Fast lifting efficient vulcanizing machine
The machine is mainly used for pipeline oil seal production, with hydraulic cylinder for fast mold closing and opening, it's energy-saving and efficient.
Durable Siemens electric parts are used in the mian electric components.PLC control makes it easy to operate and high intelligence. It can replace imported equipment and it's an ideal choice for pipeline oil seal production.
| type | XLB-D900x500x1 | XLB-D1000x600x1 |
| nominal clamping mold force(MN) | 1.20 | 1.60 |
| piston stroke(mm) | 400 | 400 |
| main motor power(kw) | 4 | 5.5 |
| plate clearance(mm) | 400 | 400 |
Adopting exhaust vacuum technology, could produce high accurate rubber components.
Controlled by PLC, several programs could to be process through automatic control, to check and adjust the heating temperature with automatic, improving control level, labor strength and product efficiency.
This large plate vulcanizing press is used to produce textile construction conveyor belt, such as ordinary rubber conveyor belt, nylon conveyor belt, PVG belt, steel wire core conveyor belt etc.
This machine is mainly used for vulcanizing and processing large rubber components, rubber products and large width rubber conveyor belt.
| type | 1500x2000 | 1800x1800 | 2000x2000 | 3000x3000 | 3100x4200 |
| nominal mold clamping force(mn) | 12.00 | 20.00 | 20.00 | 31.50 | 48.00 |
| plate size(mm) | 1500x2000 | 1800x1800 | 2000x2000 | 3000x3000 | 3100x4200 |
| working layer | 2 | 2 | 2 | 2 | 2 |
| number of cylinder | 4 | 4 | 4 | 6 | 12 |
| diameter of piston(mm) | 500 | 500 | 600 | 600 | 600 |
| stroke of piston(mm) | 600 | 600 | 600 | 800 | 250 |
| daylight(mm) | 300 | 300 | 300 | 800 | 250 |
| unit area pressure of hot plate(Mpa) | 4.0 | 6.17 | 5.0 | 3.5 | 3.7 |
| main motor power | 17 | 20.5 | 22 | 61 | 66 |
| overall size(mm) | 2000x2500x4040 | 2500x2300x4100 | 2500x2500x4180 | 4500x4820x4200 | 4800x6500x4500 |
