Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
qizhou
-
Model Number:
-
T4
-
Product name:
-
Solar Cable Connector
-
Model:
-
T4
-
Cover Material:
-
PPO
-
Waterproof Level:
-
IP67
-
Wire Range:
-
2.5-6.0mm²
-
Voltage:
-
1000V DC
-
Current:
-
30A
-
Temperature Range:
-
-40℃-110℃
-
Sample:
-
Available
-
Shipping by:
-
Customer Demand
Quick Details
-
Type:
-
ADAPTER
-
Application:
-
Power
-
Gender:
-
Both
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
qizhou
-
Model Number:
-
T4
-
Product name:
-
Solar Cable Connector
-
Model:
-
T4
-
Cover Material:
-
PPO
-
Waterproof Level:
-
IP67
-
Wire Range:
-
2.5-6.0mm²
-
Voltage:
-
1000V DC
-
Current:
-
30A
-
Temperature Range:
-
-40℃-110℃
-
Sample:
-
Available
-
Shipping by:
-
Customer Demand
Product Description

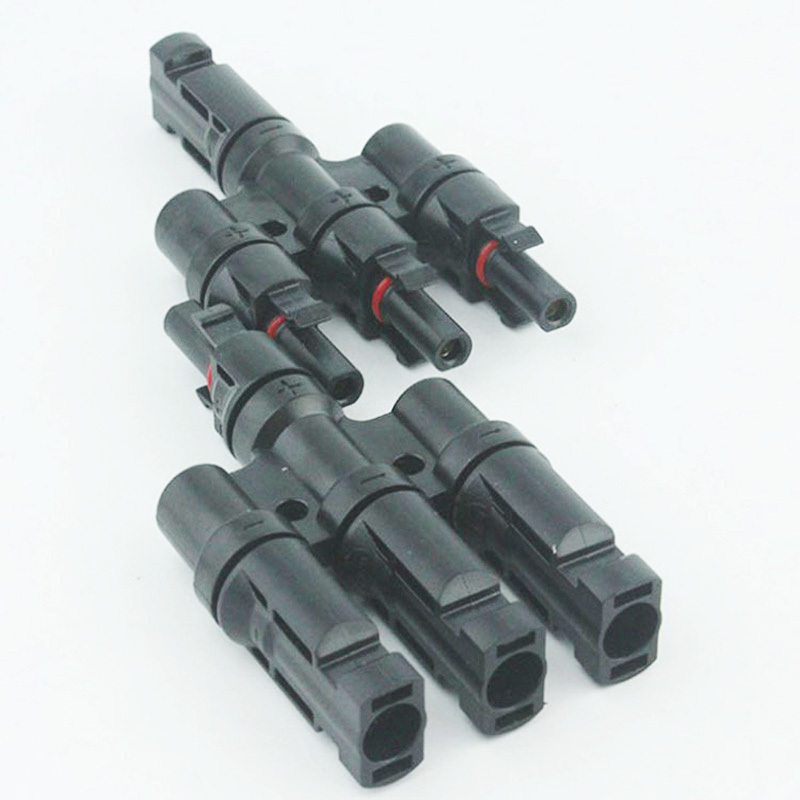

Product Name: T4 Solar Cable Connector
Cover Material: PPO
Cover Material: PPO
Conductor Material: Copper Silver Plating
|
Rated Current:
|
30A
|
|
Rated Voltage:
|
1000V DC
|
|
Testing Voltage
|
6000V(50Hz 1min)
|
|
IP grade
|
IP67
|
|
Contact Resistance:
|
≤1mΩ
|
|
Flame Retardant Rating
|
UL94-V0
|
|
Wire Range
|
2.5-6.0mm²
|
|
Insertion Force
|
≤50N
|
|
Withdrawal Force
|
≥50N
|
|
Working Temperature
|
-40℃~+110℃
|
