Quick Details
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
200 mm
-
Spindle Motor Power(kW):
-
5.5kw
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CNCSUPER
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
3100*2230*1760
-
Power (kW):
-
5.5
-
Weight (KG):
-
950
-
Product name:
-

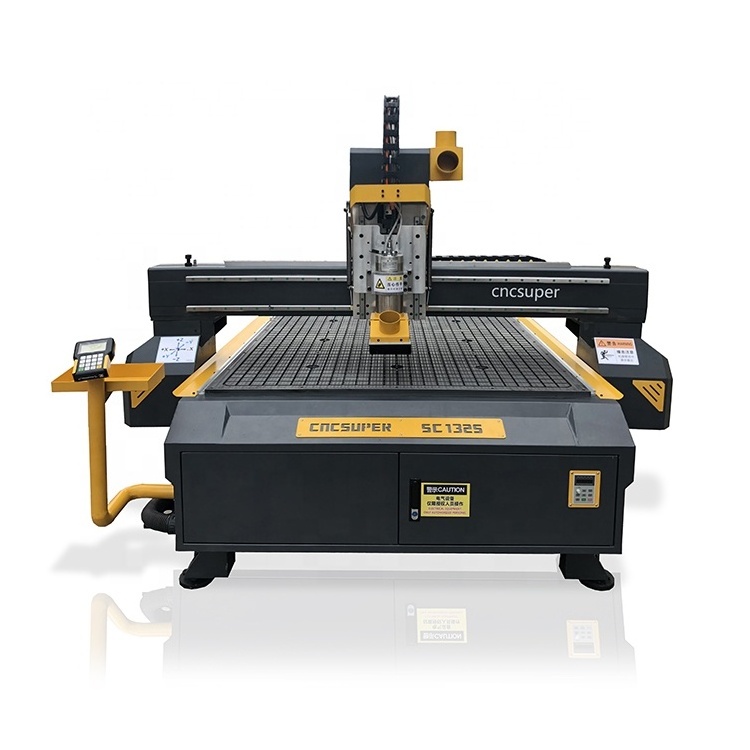

High power Woodworking Furniture Carving Machine 1325 Cnc Router
-
Working area:
-
1300(X)x2500(Y)x200(Z)mm
-
Table size:
-
1500x3000mm
-
Table:
-
Vacuum table plus 5.5KW air vacuum pump
-
Weight:
-
950kgs
-
Positional accuracy:
-
±0.03/300mm
-
Repeatability:
-
±0.03
-
Power:
-
5.5KW water-cooling spindle
-
NO. of revolution:
-
24000rpm
-
Motor and drivers:
-
Servo motor and drivers
Quick Details
-
Working Table Size(mm):
-
1500x3000mm
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
10000 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
200 mm
-
Spindle Motor Power(kW):
-
5.5kw
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CNCSUPER
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
3100*2230*1760
-
Power (kW):
-
5.5
-
Weight (KG):
-
950
-
Product name:
-
High power Woodworking Furniture Carving Machine 1325 Cnc Router
-
Working area:
-
1300(X)x2500(Y)x200(Z)mm
-
Table size:
-
1500x3000mm
-
Table:
-
Vacuum table plus 5.5KW air vacuum pump
-
Weight:
-
950kgs
-
Positional accuracy:
-
±0.03/300mm
-
Repeatability:
-
±0.03
-
Power:
-
5.5KW water-cooling spindle
-
NO. of revolution:
-
24000rpm
-
Motor and drivers:
-
Servo motor and drivers
Product Description
Product parameters
|
Specification
|
Parameters
|
|
||
|
Size |
|
1300*2500*200mm, 4*8ft
|
||
|
|
|
1500*3000*200mm, 5*10ft
|
||
|
|
|
2000*3000*200mm, 6*10ft
|
||
|
|
|
2000*4000*200mm, 6*13ft
|
||
|
|
|
2000*6000*200mm, 6*20ft
|
||
|
|
Table
|
Vacuum table plus 5.5KW air vacuum pump
|
||
|
|
Weight
|
950kgs
|
||
|
Accuracy
|
Positional accuracy
|
±0.03/300mm
|
||
|
|
Repeatability
|
±0.03
|
||
|
Spindle motor
|
Power
|
5.5KW water-cooling spindle
|
||
|
|
NO. of revolution
|
24000rpm
|
||
|
|
Motor and drivers
|
Servo motor and drivers
|
||
|
Traverse system
|
Rapid Traverse
|
20000mm/min
|
||
|
|
Cutting Speed
|
15000mm/min
|
||
|
|
Guide
|
Original TAIWAN HIWIN
|
||
|
Control parts
|
Controller
|
DSP control system
|
||
|
|
Software
|
Type3
|
||
|
|
Format
|
G code HPGL
|
||
|
Lubrication system
|
|
Automatic lubrication system
|
||
|
Tool diameter
|
|
3.175-12.7mm
|
||
|
Power supply
|
|
220V/380V,50HZ
|
||
|
Package dimension
|
|
3.1LX2.23WX1.76H
|
||
|
Options:
|
|
|
||
|
1. Aluminium plus PVC slot table
2. Dust collector
3. TAIWAN DELTA servo 4. JAPAN SHIPMO reducer 5.Removable rotary axis |
|
|
||
Product application
