Quick Details
-
Screw Speed (rpm):
-
150 rpm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XHD
-
Voltage:
-
220 V/380 V/415 V/440 V
-
Dimension(L*W*H):
-
12.5 X 5.5 X 4.6 M
-
Power (kW):
-
190
-
Weight:
-
15000 KG
-
Film Layer:
-
CBA/CABAC
-
Finished product width:
-
1500 mm
-
Film Thickness:
-
10~50 microns
-
Designed linear speed:
-
200 M/min
-
Main motors:
-
JIANGSHENG or Siemens
-
Drive brand:
-
Senlan or Delta
-
PLC brand:
-
Mitsubishi
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
30D
-
Screw diameter (mm):
-
90 mm
-
Screw Speed (rpm):
-
150 rpm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XHD
-
Voltage:
-
220 V/380 V/415 V/440 V
-
Dimension(L*W*H):
-
12.5 X 5.5 X 4.6 M
-
Power (kW):
-
190
-
Weight:
-
15000 KG
-
Film Layer:
-
CBA/CABAC
-
Finished product width:
-
1500 mm
-
Film Thickness:
-
10~50 microns
-
Designed linear speed:
-
200 M/min
-
Main motors:
-
JIANGSHENG or Siemens
-
Drive brand:
-
Senlan or Delta
-
PLC brand:
-
Mitsubishi

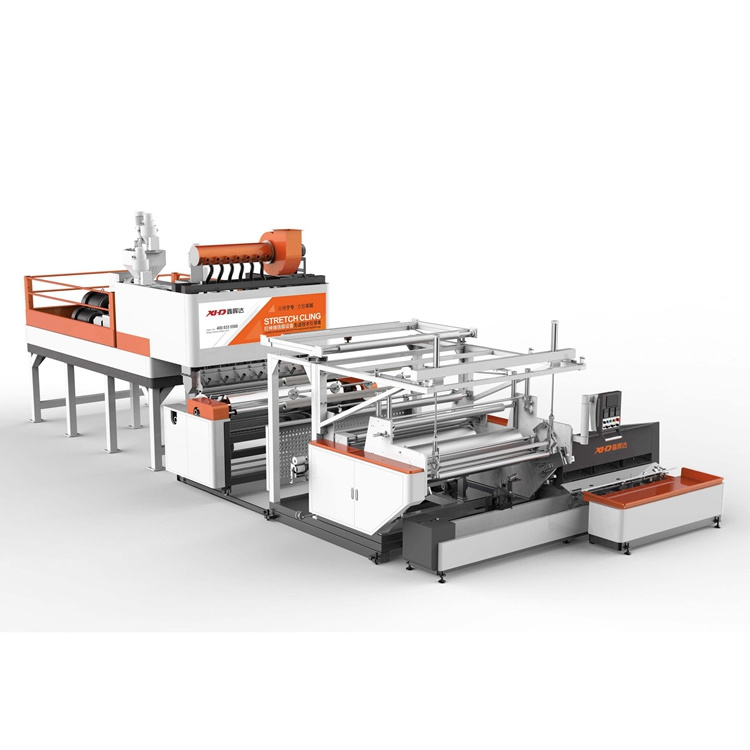

3 layers or 5 layers 1500 mm factory price high output LLDPE/HDPE/PE XHD stretch film extruder machine
Products Description
|
NO.
|
ITEM
|
DESCRIPTION
|
|
1)
|
Model:
|
XHD-65/90/65-1850
|
|
2)
|
Industrial Power Supply:
|
3 phases industrial power supply
|
|
3)
|
Total Installation Power:
|
190 KW (for the machine only)
|
|
4)
|
Pneumatic drive requirement:
|
0.8 MPA
|
|
5)
|
Main Raw Material:
|
LLDPE, LDPE (few) & MLLDPE
|
|
6)
|
Thickness of Film:
|
12-50 μm (the minimum thickness can be 8 microns).
|
|
7)
|
Width of the Useful Film:
|
Maximum width 1500 mm
|
|
8)
|
Film Thickness Tolerance:
|
<=5%
|
|
9)
|
Film Layer Structure:
|
Three or five layers
|
|
10)
|
Designed Linear Speed:
|
200 M/min
|
|
11)
|
production capacity:
|
150-280 Kg/H
|
|
12)
|
Dimensions (L×W×H):
|
12.5*5.5*4.6 M (for reference only!)
|
|
13)
|
Gross Weight:
|
15,000 KGS (for reference only)
|
XHD-65/90/65-1850 is one of the most popular models among our customers and it is mainly used for producing:
1) stretch film rolls with below specs
* 2~5 KGS/roll small hand use stretch film rolls.
* 10~18 KGS/roll machine use stretch film rolls.
* Medium size rolls with roll weight around 33.5 KGS at 500 mm film width.
2) 8~10 microns
250~500 mm
PE cling film rolls.
3) 30~35 microns 250 mm/300 mm/500 mm/750 mm silage film rolls (UV protective film rolls).
stretch film rolls
PE cling food (wrap) film
silage film (UV protective) film
Highlights on configuration and performance
Highlights on machine performances:
***Remarks: we also have the winder design for the jumbo rolls (up to 50 KGS per roll at 500 mm film width).
1. High speed design: up to 200 M/min (standard) or 250 M/min (optional).
2. High working speed: 140~160 M/min (standard) or 160~200 M/min (optional).
3. High production capacity: 250~280 KGS/H (depends on the film thickness and line speeds).
4. Quality stretch film which can compare with the film produced by European machines.
5. Excellent production capacity and power consumption ratio: around 0.4 KWH/KG.
8. One man is enough to manipulate the whole machine!
9. Automatic paper cores unloading, finished rolls unloading, standby air shaft loading.
2. High working speed: 140~160 M/min (standard) or 160~200 M/min (optional).
3. High production capacity: 250~280 KGS/H (depends on the film thickness and line speeds).
4. Quality stretch film which can compare with the film produced by European machines.
5. Excellent production capacity and power consumption ratio: around 0.4 KWH/KG.
8. One man is enough to manipulate the whole machine!
9. Automatic paper cores unloading, finished rolls unloading, standby air shaft loading.
***Remarks: we also have the winder design for the jumbo rolls (up to 50 KGS per roll at 500 mm film width).
149 M/MIN run by our Mexican customer
1500 mm MC bought by Mexican customer
160 M/min run by our domestic customer
Highlights on machine configuration:
1) Coupling with rubber type of element is used to connect the main motor and the gear box.
2) Alloy screws and barrels with good nitrogen treatment.
3) Automatic screen changers powered by hydraulic station.
4) Top quality XHD T-die (standard) or JC-TIMES T-die (optional).
5) Big diameter (standard 720 mm/optional 800 mm) and quality cooling rollers from professional suppliers.
6) Silicone-coated roller is installed for cleaning the primary cooling roller.
7) Synchronous wheels and belts, idle rollers with hardened surface are used for high speed production.
8) Automatic air shaft inflation and deflation, automatic spare air shaft loading.
9) Powerful crusher and new hopper design for recycled flakes feeding.
10) Patented automatic system for paper cores unloading and loading.
2) Alloy screws and barrels with good nitrogen treatment.
3) Automatic screen changers powered by hydraulic station.
4) Top quality XHD T-die (standard) or JC-TIMES T-die (optional).
5) Big diameter (standard 720 mm/optional 800 mm) and quality cooling rollers from professional suppliers.
6) Silicone-coated roller is installed for cleaning the primary cooling roller.
7) Synchronous wheels and belts, idle rollers with hardened surface are used for high speed production.
8) Automatic air shaft inflation and deflation, automatic spare air shaft loading.
9) Powerful crusher and new hopper design for recycled flakes feeding.
10) Patented automatic system for paper cores unloading and loading.
***Remarks:
We can use some certain brands for the machine parts if the customer agrees to pay extra cost.
Customized proposals are always available for top quality, higher speeds, higher output and higher benefits.
Service and warranty
Professional and customized proposal from our experienced sales team
Professional designs from our electrical and mechanical engineers
Professional and experienced fitters and after-sale service engineers
India, Vietnam, Thailand, Turkey, Azerbaijan, Russia ad Mexico
2) One (01) year’s warranty on receipt of the machine and equipment within Mainland China.
3) The Chinese engineer dispatch is only available when the epidemic is over or when it is safe for traveling.
3) The Chinese engineer dispatch is only available when the epidemic is over or when it is safe for traveling.
4) Any available local or nearby country engineer dispatch can be arranged on the condition that the buyer or the end user can accept the cost.
5) Online technical support is always available if the buyer or the end user wants to install the machine by themselves.
*** For more about the after-sale service, please feel free to contact with us, thanks.
