Desktop USB RFID Chip Reader Writer 900mhz Long Distance RFID Reader Writer
Features:
1. Reading and writing in equipment limited area above 0-60 CM of the narrow space;
2. Provide setups SDK, and can provide C#,VC,VB,Java development routines;
3. EPC area, reservations, the user area support locking unlock function, can be used for privacy and security requirements of high occasion;
4. Support adjacent discriminant function, can prevent with a card in short time (1-255 seconds adjustable) upload repeat inside;
5. Supports fast write operation, convenient for reading and writing.
Product Description:
|
Specifications |
|
|
Working Frequency |
902~928 MHz or 865~868MHz |
|
Protocol |
ISO18000-6C(EPC C1 GEN2) |
|
Communication port |
Left USB to serial port / Right USB to Data output |
|
Software & SDK |
DEMO and C#,VC,VB,Java,DELPH, etc., |
|
Encryption |
Can be directly encrypted, copy prevention. |
|
Reading range |
Stable reading 0~60cm |
|
Writing range |
Stable writing 0~10cm |
|
Physical parameters |
|
|
Adaptor |
USB |
|
Output power |
0~17dBm |
|
Working temperature |
-20℃~+55℃ |
|
Storage temperature |
-20 ℃ ~+55 ℃ |
|
Item size |
142x 85x20mm |
|
Package size |
180x120x50mm |
|
Net weight |
500g |
|
Shell material |
ABS |

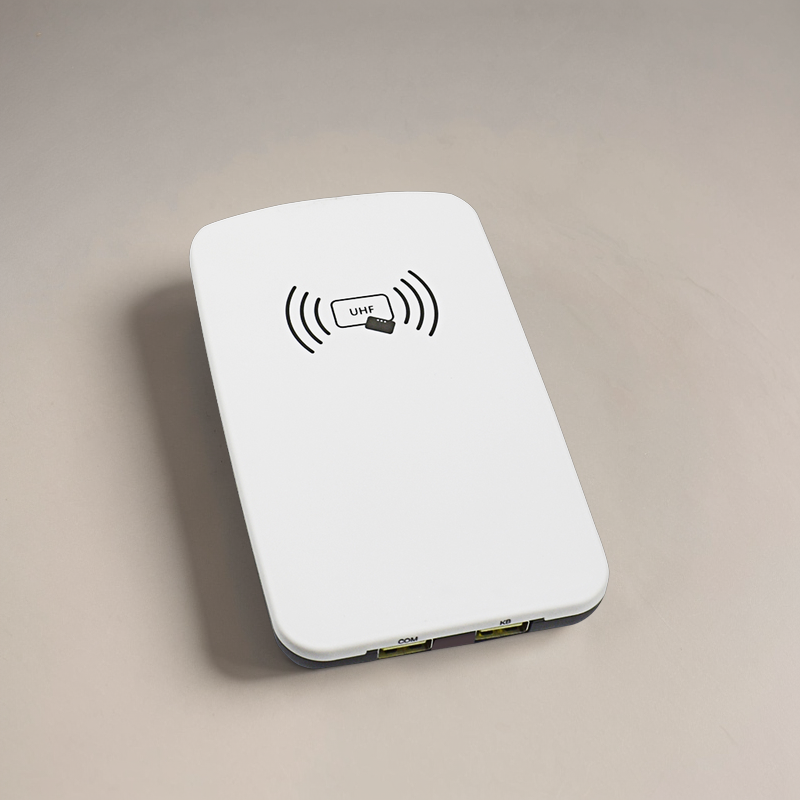

Products Show:
Software Interface:
Application:
Intelligent traffic such as ETC;
Customs border-crossing, parking lot, automatic weighting;
Logistics such as container management, pallet management, asset management etc;
Ticketing& access control ;
Pharmaceuticals such as medical waste management ,etc.
