Quick Details
-
Function:
-
Waterproof, NIGHT VISION, WDR, Remote Control, FULL COLOR, G-Sensor, park MODE, Loop recording, Build-in WiFi, APP Control, Voice Interaction, Build-in GPS, Build-in GSM, Emergency Accident Lock, Build-in Battery, Andriod OS, SDK
-
Working Temperature Range:
-
-20 - 65 ℃
-
Warranty:
-
18 Months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
H7 4G mirror
-
chip:
-
Spreadtrum SL8541E (Quad Core)
-
Video resolution:
-
1920*1080P
-
4G/3G/2G network band:
-
Rearview mirror
-
OSD language:
-
Slovenian,Turkish,Spanish,Hebrew,Swedish,French...
-
Number of lenses:
-
WCDMA : B1/B2/B5/B LTE FDD :B1/B3/B7/B8/B20 LTE TDD: B38/B39/B40/B41
-
Battery lifi:
-
sleep mode ,it could standby about 10 hours
-
Systems:
-
Android 8.1
-
hands-free:
-
support
-
Touch screen:
-
10.0 inch Capacitive Touch Screen
-
ADAS:
-
Yes,support LDWS/FCWS/FYMA
Quick Details
-
Car Fitment:
-
Universal
-
Angle:
-
170°
-
Resolution:
-
1080P
-
Function:
-
Waterproof, NIGHT VISION, WDR, Remote Control, FULL COLOR, G-Sensor, park MODE, Loop recording, Build-in WiFi, APP Control, Voice Interaction, Build-in GPS, Build-in GSM, Emergency Accident Lock, Build-in Battery, Andriod OS, SDK
-
Working Temperature Range:
-
-20 - 65 ℃
-
Warranty:
-
18 Months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
H7 4G mirror
-
chip:
-
Spreadtrum SL8541E (Quad Core)
-
Video resolution:
-
1920*1080P
-
4G/3G/2G network band:
-
Rearview mirror
-
OSD language:
-
Slovenian,Turkish,Spanish,Hebrew,Swedish,French...
-
Number of lenses:
-
WCDMA : B1/B2/B5/B LTE FDD :B1/B3/B7/B8/B20 LTE TDD: B38/B39/B40/B41
-
Battery lifi:
-
sleep mode ,it could standby about 10 hours
-
Systems:
-
Android 8.1
-
hands-free:
-
support
-
Touch screen:
-
10.0 inch Capacitive Touch Screen
-
ADAS:
-
Yes,support LDWS/FCWS/FYMA

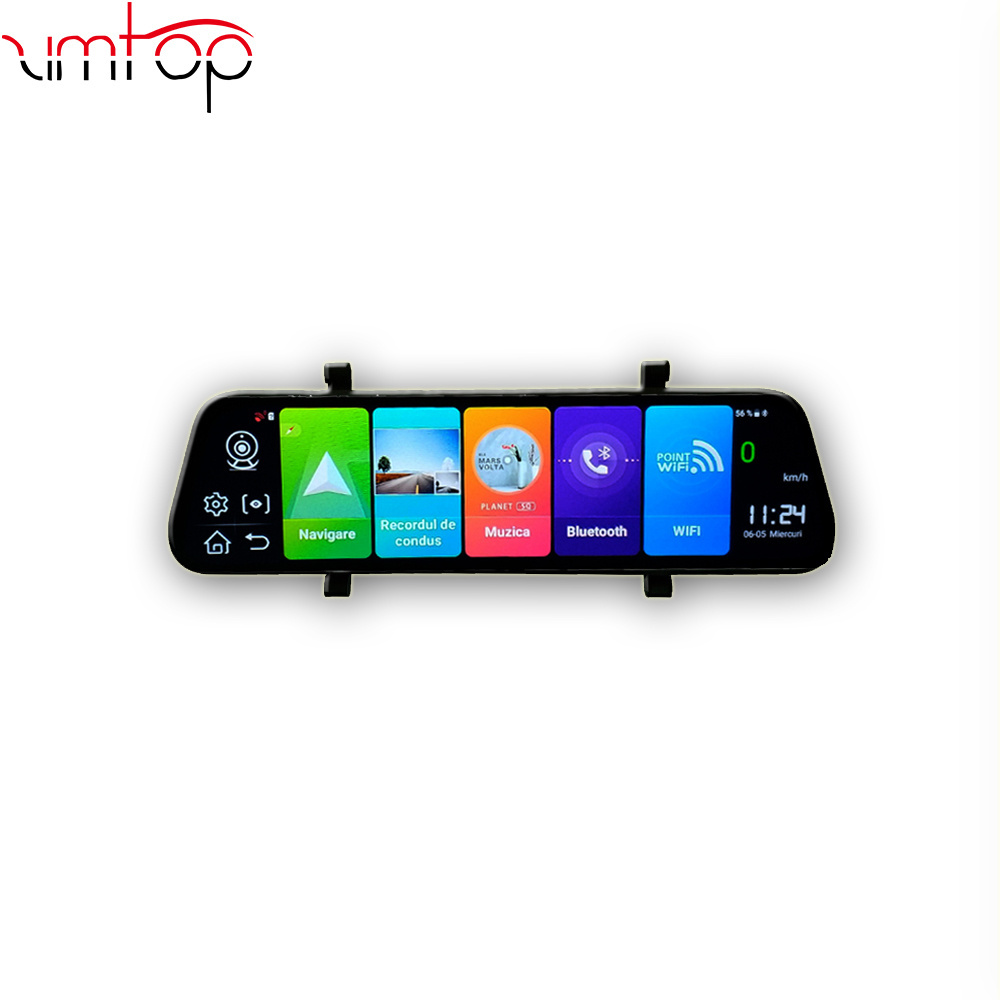

New 2019 Car DVR GPS Navigator Camera 4G 10"Android Stream Media Rear View Mirror FHD 1080P GPS Mirror Dash Cam Recorder
product description
1.1 Overview
V88 is a car intelligent streaming media rearview mirror motherboard developed based on Spreadtrum sl8541e platform. It mainly integrates Android 8.1 system, driving recorder function, navigation function, voice control, ahd streaming media function, 4g communication and other driving safety and driving convenience. Features.
1.2 Features
Function: two-way video before and after driving, gps navigation, fm launch, reversing visual, intelligent Android system, voice control, etc.
High integration: integrated CPU/PMU/G-SENSOR/LPDDR3/eMMC/WIFI/ISP/BT/4G equals one.
Basic function list
|
Processor, memory characteristics |
|
|
Processor type |
Spreadtrum SL8541E (Quad Core) Cortex-A53 1.4GHz Mali820@680MHz |
|
DDR |
1GB LPDDRⅢ |
|
eMMC Flash |
16G |
|
Functional characteristics |
|
|
Display |
Ips 9.66 inches |
|
Display resolution |
320*1280 pixels |
|
External i/o port |
1 usb 2.0 (power supply: dc5v/2.5a) |
|
1 sim card slot, support microsim card |
|
|
Expanded memory card: tf card capacity supports 8gb/16gb/32gb/64gb |
|
|
1 gps feeder interface |
|
|
1 analog rear pull camera (2.5mm 4-segment headphone) interface, compatible with automatic reversing function |
|
|
speaker |
Built-in (8ohm/2.0W, 4ohm/3.0W) |
|
MIC |
Built-in -42db ± 2db |
|
Rear pull camera |
Support ahd (HD camera) line length: 6 meters |
|
Full screen touch |
Support capacitive screen |
|
WIFI |
2.4G 802.11b/g/n |
|
Data service (4g) |
Supported frequency bands: GSM : B2/B3/B5/B8 WCDMA : B1/B2/B5/B8 LTE FDD : B1/B3/B7/B8/B20 LTE TDD : B38/B39/B40/B41 Supports a maximum rate of 150Mbps (the actual rate is determined by the network environment) |
|
BT |
Ble 4.0 can manually switch master and slave devices |
|
Gps navigation |
Dual mode Beidou + gps |
|
Fm launch |
Support 88-108MHz |
|
Automatic reversing |
stand by |
|
Front camera |
1080P |
|
Camera angle |
170° wide angle |
|
Video format |
MP4 |
|
Image Format |
JPG |
|
Storage compression |
Front h.264, rear h.264 |
|
type of battery |
800mAh polymer lithium battery 80 degrees 2C or more |
|
software support |
|
|
operating system |
Android 8.1 |
|
language support |
Support (Chinese and English) |
|
G-SENSOR |
Triaxial |
|
Loop recording |
Support, no seconds |
|
recording function |
stand by |
|
Time watermark |
stand by |
|
Front camera video quality |
Supports up to 1920*1080 (1080P 25f/s)/HD1280x720 (720p 25f/s) |
|
Rear camera video quality |
Ahd HD |
|
Photo resolution |
Up to 5m |
1.1 Overview
V88 is a car intelligent streaming media rearview mirror motherboard developed based on Spreadtrum sl8541e platform. It mainly integrates Android 8.1 system, driving recorder function, navigation function, voice control, ahd streaming media function, 4g communication and other driving safety and driving convenience. Features.
1.2 Features
Function: two-way video before and after driving, gps navigation, fm launch, reversing visual, intelligent Android system, voice control, etc.
High integration: integrated CPU/PMU/G-SENSOR/LPDDR3/eMMC/WIFI/ISP/BT/4G equals one.
1.It needs a micro card, which should be original and high speed C10, 4-32GB.Be carful there are many copies in the market.
2. Do not charge via usb cable from computer, please charge via the 12V car power line. It may burn the motherboard if on truck of 24v power, please add a 24v to 12v converter.
3. To keep driving safe, as the car temperature is very high when outdoors in summer, if large battery, it will be easy to explode,so the battery of car DVR are produced very small. The battery is only to save the video when power off suddenly. Therefore please charge via car power line when used.
4. How to loop recording?
1> Please turn on the loop recording in the menu of car camera.
2> Please format the card in the car camera before use.
3> Please turn low or off the G-sensor due to the high sensitivity, it will save many videos which can't be cycle covered, so the card is filled full soon, then it stops the video.
5. View Angle:
The angle showed in the display is not the view angle, please play the video on computer, it will be larger and clearer than in registrar.
