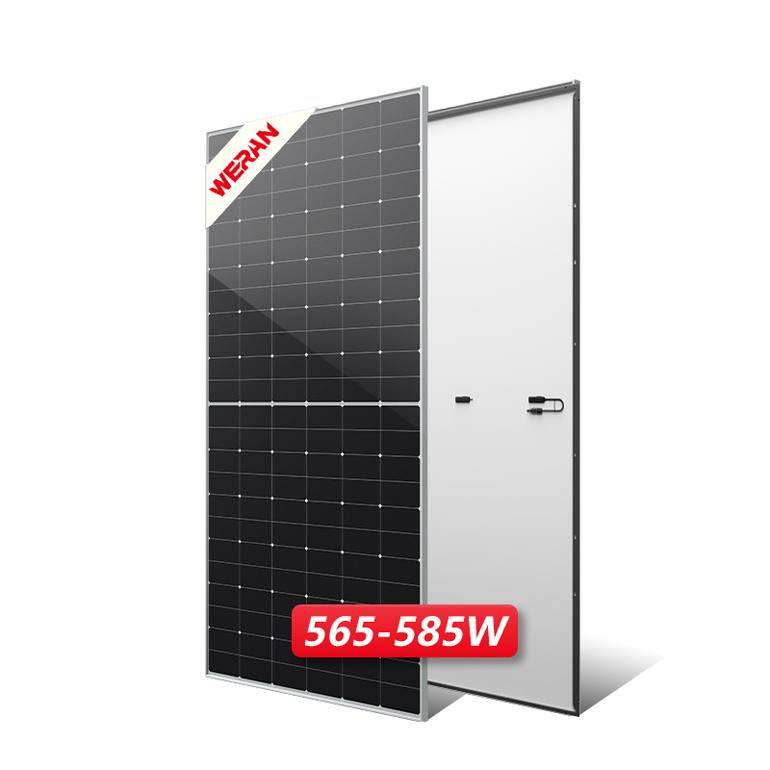

Quick Details
-
Warranty:
-
15 Years
-
Brand Name:
-
WERAN
-
Model Number:
-
WR5-72HTH 565-585M
-
Place of Origin:
-
China
-
Panel Dimensions:
-
2278*1134*30mm
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
Half Cell, All Black, hbc, HPBC
-
Panel Efficiency:
-
22.6%
-
Warranty:
-
15 Years
-
Brand Name:
-
WERAN
-
Model Number:
-
WR5-72HTH 565-585M
-
Place of Origin:
-
China
-
Panel Dimensions:
-
2278*1134*30mm
|
Electrical Characteristics
|
STC : AM1.5 1000W/m2 25℃ Test uncertainty for Pmax:±3%
|
|
|
|
|
||||
|
Module Type
|
LR5-72HTH-565M
|
LR5-72HTH-570M
|
LR5-72HTH-575M
|
LR5-72HTH-580M
|
LR5-72HTH-585M
|
||||
|
Testing Condition
|
STC
|
STC
|
STC
|
STC
|
STC
|
||||
|
Maximum Power (Pmax/W)
|
565
|
570
|
575
|
580
|
585
|
||||
|
Open Circuit Voltage (Voc/V)
|
51.76
|
51.91
|
52.06
|
52.21
|
52.36
|
||||
|
Short Circuit Current (Isc/A)
|
14.01
|
14.07
|
14.14
|
14.2
|
14.27
|
||||
|
Voltage at Maximum Power (Vmp/V)
|
43.61
|
43.76
|
43.91
|
44.06
|
44.21
|
||||
|
Current at Maximum Power (Imp/A)
|
12.96
|
13.03
|
13.1
|
13.17
|
13.24
|
||||
|
Module Efficiency(%)
|
21.9
|
22.1
|
22.3
|
22.5
|
22.6
|
||||
|
Mechanical Parameters
|
|
|
|
Cell Orientation
|
144 (6×24)
|
|
|
Junction Box
|
IP68
|
|
|
Output Cable
|
4mm
2
, +400, -200mm/±1400mm length can be customized
|
|
|
Glass
|
Single glass, 3.2mm coated tempered glass
|
|
|
Frame
|
Anodized aluminum alloy frame
|
|
|
Weight
|
27.2kg
|
|
|
Dimension
|
2278×1134×30mm
|
|
|
Packaging
|
36pcs per pallet / 180pcs per 20’GP / 720pcs per 40’HC
|
|
|
Operating Parameters
|
|
|
|
Operational Temperature
|
-40℃ ~ +85℃
|
|
|
Power Output Tolerance
|
0 ~ 3%
|
|
|
Voc and Isc Tolerance
|
±3%
|
|
|
Maximum System Voltage
|
DC1500V (IEC/UL)
|
|
|
Maximum Series Fuse Rating
|
25A
|
|
|
Nominal Operating Cell Temperature
|
45±2℃
|
|
|
Protection Class
|
Class II
|
|
|
Fire Rating
|
UL type 1 or 2
IEC Class C |
|
|
Mechanical Loading
|
|
|
|
Front Side Maximum Static Loading
|
5400Pa
|
|
|
Rear Side Maximum Static Loading
|
2400Pa
|
|
|
Hailstone Test
|
25mm Hailstone at the speed of 23m/s
|
|
|
Temperature Ratings（STC）
|
|
|
|
Temperature Coefficient of Isc
|
+0.050%/℃
|
|
|
Temperature Coefficient of Voc
|
-0.230%/℃
|
|
|
Temperature Coefficient of Pmax
|
-0.290%/℃
|
|
