Biodegradable Bespoke Packaging With Molded Fiber Lamp Trays Pot Trays Making Machine

Biodegradable Bespoke Packaging With Molded Fiber Lamp Trays Pot Trays Making Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $10000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 380V

Power:: 30 kw

Dimension(L*W*H):: 220*220*270 cm

Weight:: 2000 kg

Name:: Pulp Egg Tray Machine

Raw material:: Waste Paper,Waste Newspaper,Cardboard,

Finished products:: red wine trays,instrument trays,fruit trays,lamp trays

Electricity consumption:: 30 kw/hr

Speed:: 3-5 times/min

Quick Details

Production Capacity:: 3-5 times/min

Place of Origin:: Hebei, China

Brand Name:: Wongs

Voltage:: 380V

Power:: 30 kw

Dimension(L*W*H):: 220*220*270 cm

Weight:: 2000 kg

Name:: Pulp Egg Tray Machine

Raw material:: Waste Paper,Waste Newspaper,Cardboard,

Finished products:: red wine trays,instrument trays,fruit trays,lamp trays

Electricity consumption:: 30 kw/hr

Speed:: 3-5 times/min

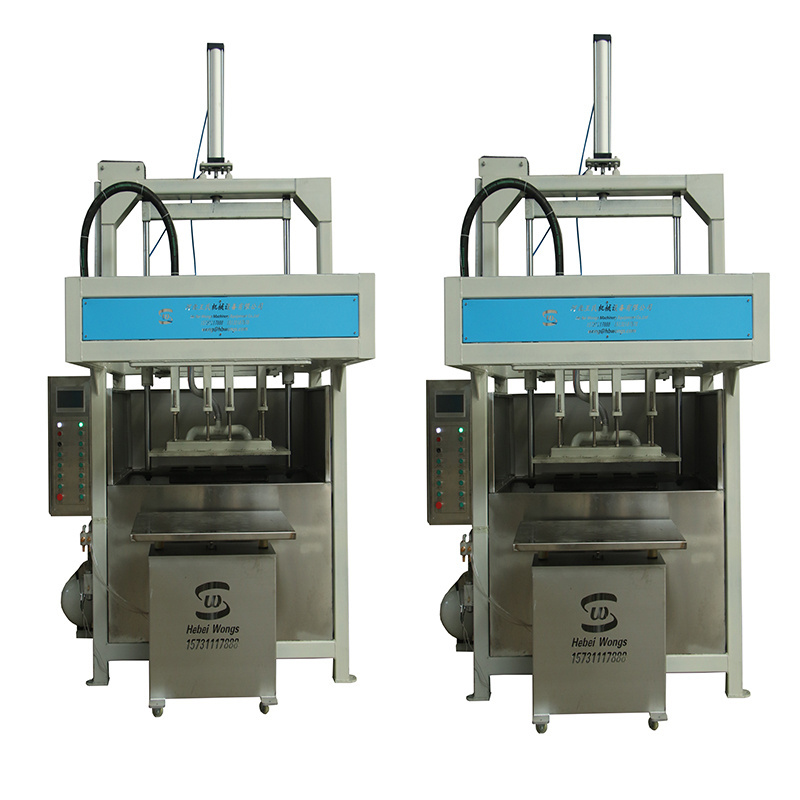

PRODUCT OVERVIEW

Biodegradable Bespoke Packaging With Molded Fiber Lamp Trays Pot Trays Making Machine

Industrial Package Machine is a kind of environmental protection equipment.

It consists of 4 systems:pulping system;forming system;drying system;shaping system.

It can produce different industrial trays such as pot trays,lamp trays, flower pots and so on.

The raw materials includes waste paper,waste newspaper,cardboard and so on.

Industrial Package Machine

1.Put the raw materials into the pulper and add an appropriate amount of water to stir the waste paper into pulp.

2.The forming system is the process to produce the wet industrial trays by forming machine. When the above forming moulds sink into the pulp tank, the negative-pressure vacuum pump will work on the the back of the forming mould, the pulp will be sucked and gathered on the mould surface to form the wet trays.

3.Then the wet trays are ready for drying under the sun.

4.Then you should press the trays by the shaping machine.

Pulping system

1.Put the raw materials into the pulper and add an appropriate amount of water to stir the waste paper into pulp.

Forming system

2. The forming system is the process to produce the wet industrial trays by forming machine. When the above forming moulds sink into the pulp tank, the negative-pressure vacuum pump will work on the the back of the forming mould, the pulp will be sucked and
gathered on the mould surface to form the wet trays.

Drying system:

Then the wet trays are ready for drying under the sun.

Shaping system:

Then you should press the trays by the shaping machine.

coffee cup holder

industrial package

You can produce egg trays,egg cartons,wine trays,apple trays,coffee cup holder,kidney trays by changing different molds.

And you can produce different colors according to your requirements.

PRODUCT SPECIFICATIONS

No	Item	Data
1	Power	30 KW
2	Capacity	300-500 pcs/hr
3	Raw material	Waste paper,waste newspaper,old book and so on
4	Finished tray	Egg tray,Egg carton,Fruit Tray,Coffee tray carrier,shoe tree
5	Guarantee	one year

PRODUCT CONFIGURATION

RECOMMEN PRODUCTS

DRYING WAYS

Sun drying:
You can dry the finished egg trays by sun.

Brick dryer
It is traditional drying way.It requires customers to purchase brick-cement prefabricated panels and find masons. We arrange for workers to guide the construction.

Advantages:
The market penetration rate is large.
Heat source: clean energy such as natural gas, diesel oil, liquefied petroleum gas and methanol

Metal dryer

Then the wet trays are ready for sending to the iron box type drying for drying.It is called multi-layer drying system and
generally designed with 6 layers.

Advantages:
① small footprint.
② energy saving by about 30% compared to brick dryer
Heat source:

clean energy such as natural gas, diesel oil, liquefied petroleum gas etc.

SALES AND SERVICE NETWORK

Our machines sells well in more than 30 countries and regions,such as Russia,Indonesia,Uzbekistan,Tajikstan,

Nigeria,Uganda,Pakistan,Egypt,Bhutan,Fiji,Brazil,Paraguay,Syria,Libya,Turkey,Canada etc,high quality and perfect service have reserved customer's praise and more orders,we also establish good strategic cooperation with local distributor.

SUCCESSFUL PROJECTS

Project in Colombia

Project in South Africa

Project in Iraq

Project in Thailand

Project in India

Project in Russia

FAQ

1.What is egg tray machine?

The egg tray machine is a kind of pulp molding machine.It is used to produce egg trays,egg cartons,wine trays,fruit
trays,vegetable trays,kidney trays and so on by changing different molds.

2.How much is the egg tray machine?

There are many types of egg tray machine with different capacity from 1000 pcs/hr to 8000 pcs/hr.Different capacity different price.For the same egg tray machine,there are many choose about dryer,molds and so on.Different configuration different price.

3.How to choose an egg tray machine manufacturer in China?

Choosing Wongs is ok.
