Quick Details
-
Product name::
-

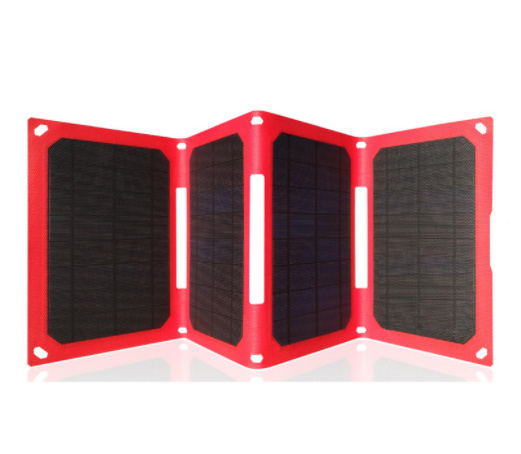

Portable Solar Panel Cell Phone 28w Super Slim ETFE USB Solar Charger
-
Max PV Power:
-
28W
-
Flexibility:
-
Foldable
-
Socket Type:
-
USB
-
Temperature Range:
-
-40°C to +85°C
-
Optimum Operatige Current(Imp):
-
4.2A/2.1A/2.1A
-
Open Circuit Voltage(Voc):
-
5V/9V/12V
-
Weight:
-
800g
-
Work Time (h):
-
24h
-
Max PV Voltage:
-
12V
-
Type:
-
Flexible
-
Warranty:
-
1 year
-
Size:
-
Folded: 800*290*18mm, Open: 290*200*16mm
-
Certificate:
-
CE, LVD, ROHS
Quick Details
-
Brand Name:
-
SSTH
-
Place of Origin:
-
Guangdong, China
-
Panel Efficiency:
-
22%
-
Product name::
-
Portable Solar Panel Cell Phone 28w Super Slim ETFE USB Solar Charger
-
Max PV Power:
-
28W
-
Flexibility:
-
Foldable
-
Socket Type:
-
USB
-
Temperature Range:
-
-40°C to +85°C
-
Optimum Operatige Current(Imp):
-
4.2A/2.1A/2.1A
-
Open Circuit Voltage(Voc):
-
5V/9V/12V
-
Weight:
-
800g
-
Work Time (h):
-
24h
-
Max PV Voltage:
-
12V
-
Type:
-
Flexible
-
Warranty:
-
1 year
-
Size:
-
Folded: 800*290*18mm, Open: 290*200*16mm
-
Certificate:
-
CE, LVD, ROHS
Waterproof IPX5 Portable Solar Panel Cell Phone 28w Super Slim ETFE USB Solar Charger
|
Item Number: |
SP028W |
|
Meterial |
ETFE |
|
Maximum Power(W): |
28W |
|
Optimum Power Voltage(Vmp): |
5V/9V/12V |
|
Optimum Operatige Current(Imp): |
4.2A/2.1A/2.1A |
|
Size(mm): |
Folded: 800*290*18mm Open: 290*200*16mm |
|
Temperature Coefficients of Isc(%) ℃: |
0.065+/-0.015%/°C |
|
Temperature Coefficients of Voc(%) ℃: |
_(22.3+/0.1)mv°C |
|
Temperature Coefficients of Pm(%) ℃: |
_(0.5+/-0.05)/°C |
|
Temperature Coefficients of Im(%) ℃: |
+0.1/°C |
|
Temperature Coefficients of Vm(%) ℃: |
-0.38/°C |
|
Temperature Range: |
-40°C to +85°C |
|
Tolerance Wattage(e.g.+/-5%): |
±3% |
|
Weight Per Piece(KG): |
0.80KG |
|
Junction Box Type: |
Pass the CE,FCC,IEC Certificate |
|
Cell Efficiency (%): |
22%-24% |
|
FF (%): |
70-72% |
Test conditions: 1000W/sqm -AM1.5-25 ℃
