RB-1610 has 35mm thick Hiwin linear guideways on its X-axis, 2 pcs on its Y-axis, and 4 pcs on its Z-axis, making it a total of 7
pcs of industrial-level linear guideways.
This brings better stability in printer running, thus better printing accuracy, and longer machine lifespan.
- Product Details
- {{item.text}}
Quick Details
-
Ink Type:
-
UV Curing ink A0 uv printer, UV Curing Ink
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Rainbow RB-1016 A0 UV Flatebed Printer
-
Voltage:
-
110V/220V A0 uv printer, 110V/220V
-
Dimensions(L*W*H):
-
2.8*1.66*1.38M A0 uv printer
-
Weight:
-
530 KG
-
Warranty of core components:
-
13 months
-
Application:
-
Plastic, Acrylic, Wood, Ceramic Tile, Glass, Leather, Metal,Pen
-
Model:
-
Rainbow RB-1016 A0 UV Flatebed Printer
-
Cooling System:
-
Water+Air Cooling
-
Printing Size:
-
160*100cm
-
Ink Supply System:
-
Circulation Ink Supply System(CISS)
-
Picture Mode:
-
PSD/TIFF/BMP/EPS/JPG
-
Computer Operating System:
-
Windows 7-10
Quick Details
-
Print Dimension:
-
160*100cm A0 uv printer
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Ink Type:
-
UV Curing ink A0 uv printer, UV Curing Ink
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Rainbow RB-1016 A0 UV Flatebed Printer
-
Voltage:
-
110V/220V A0 uv printer, 110V/220V
-
Dimensions(L*W*H):
-
2.8*1.66*1.38M A0 uv printer
-
Weight:
-
530 KG
-
Warranty of core components:
-
13 months
-
Application:
-
Plastic, Acrylic, Wood, Ceramic Tile, Glass, Leather, Metal,Pen
-
Model:
-
Rainbow RB-1016 A0 UV Flatebed Printer
-
Cooling System:
-
Water+Air Cooling
-
Printing Size:
-
160*100cm
-
Ink Supply System:
-
Circulation Ink Supply System(CISS)
-
Picture Mode:
-
PSD/TIFF/BMP/EPS/JPG
-
Computer Operating System:
-
Windows 7-10
Product Description

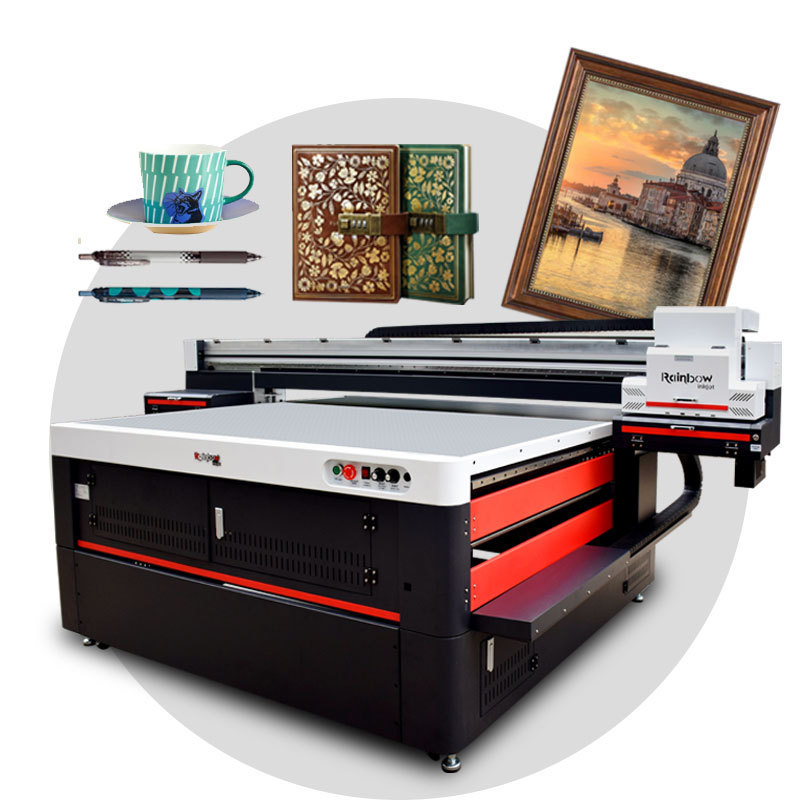

RB-1610 A0 UV flatbed printer can print on rotary and flat material with all color. It can print CMYK, White and Varnish at the same time. The Max Printing Size is 160*100cm.
Thick Hiwin linear guideways
German Igus cable carrier
Imported from German, the cable carrier runs smoothly and quietly, it protects the ink tubes and cables during the printer carriage movement, and it has a long lifespan.
Thick aluminum suction table
RB-1610 equips with a thick aluminum suction table for printing both soft materials and substrates like acrylic.
With more than 20 adjustable support screws, the table can be adjusted to a perfect levelness for high quality printing.
The surface of the table is specially treated to be scratch-proof for high durability.
With more than 20 adjustable support screws, the table can be adjusted to a perfect levelness for high quality printing.
The surface of the table is specially treated to be scratch-proof for high durability.
Industrial-level ball screw
RB-1610 has 2 pcs of ball screws on its Y-axis to assist the carriage beam's forward-backward movement, making sure of its
stability and smoothness.
It also has another 2pcs of ball screws on the Z-axis to support the stability of 25cm print height.
stability and smoothness.
It also has another 2pcs of ball screws on the Z-axis to support the stability of 25cm print height.
Anti-static carriage
RB-1610 has a solid carriage that is adjustable in height based on the carriage beam.
The carriage plate is a CNC milling part for high integration and structural stability.
The carriage also contains an anti-static device which when turned on, will get rid of the static generated between the heads and
the table. (the static will deviate the path of the ink droplets, blurring the print)
The carriage plate is a CNC milling part for high integration and structural stability.
The carriage also contains an anti-static device which when turned on, will get rid of the static generated between the heads and
the table. (the static will deviate the path of the ink droplets, blurring the print)
Bulk ink system
RB-1610 has a bulk ink CISS system with a volume of 750ml, suitable for a long period of printing. The low ink level alert device
is also installed to bring more convenience to operation. The white ink stirring device is constantly on to prevent white ink from
forming particles.
is also installed to bring more convenience to operation. The white ink stirring device is constantly on to prevent white ink from
forming particles.
Aluminum rotary devices for mug and bottle
RB-1610 supports two kinds of rotary devices, one for bottles only, and the other for mugs and bottles alike. Both devices are
made of aluminum and equipped with an independent motor to make sure of printing precision.
made of aluminum and equipped with an independent motor to make sure of printing precision.
Neat Circuit Design
The circuit system is optimized in terms of wiring, which improves the heat emission ability, slows down the aging of the cables,
and extends the service life of the machine.
and extends the service life of the machine.
|
Name
|
|
RB-1610
|
|
|
Printhead
|
|
Three DX8/i3200/i1600/g5i print heads
|
|
|
Resolution
|
|
720*720dpi~720*2880dpi
|
|
|
Ink
|
Type
|
UV curable hard/soft ink
|
|
|
|
Package size
|
750ml per bottle
|
|
|
Ink
|
Ink supply system
|
CISS(750ml ink tank)
|
|
|
|
Consumption
|
9-15ml/sqm
|
|
|
|
Ink stirring system
|
Available
|
|
|
Maximum printable area(W*D*H)
|
Horizontal
|
160*100cm(63*40inch;A0)
|
|
|
Maximum printable area(W*D*H)
|
Vertical
|
substrate 25cm(10inches) /rotary 8cm(3inches)
|
|
|
Media
|
Type
|
phone case, pen, card, wood, goofball, metal, glass, acrylic, PVC, canvas, ceramic, mug, bottle, cylinder, leather, etc.
|
|
|
|
Weight
|
≤40kg
|
|
|
|
Media (object) holding method
|
Vacuum table
|
|
|
Software
|
RIP
|
Maintop6.1
|
|
|
|
Control
|
Wellprint
|
|
|
|
format
|
.tif/.jpg/.bmp/.gif/.tga/.psd/.psb/.ps/.eps/.pdf/.dcs/.ai/.eps/.svg
|
|
|
|
System
|
Windows XP/Win7/Win8/win10
|
|
|
|
Interface
|
USB 3.0
|
|
|
|
Language
|
English/Chinese
|
|
|
Power
|
requirement
|
50/60HZ 1000-1500W
|
|
|
|
Consumption
|
1600w
|
|
|
|
Assembled
|
2.8*1.66*1.38M
|
|
|
|
Package size
|
2.92*1.82*1.22M
|
|
|
Weight
|
|
Net 530/ Gross 630 kg
|
|
Our Company
FAQ
Q1:What materials can UV printer print?
A:UV printer can print almost all kinds materials, such as phone case, leather, wood, plastic, acrylic, pen, golf ball, metal, ceramic, glass, textile and fabrics etc.
Q2:Can UV printer print embossing 3D effect?
A:Yes, it can print embossing 3D effect, contact us for more information and printing videos
Q3:Can uv flatbed printer do rotary bottle and mug printing?
A:Yes, both bottle and mug with handle can be printed with the help of rotary printing device.
Q4:Does printing materials must be sprayed a pre-coating?
A:Some material need pre-coating, such as metal, glass, acrylic for make the color anti-scratch.
Q5:How can we start to use the printer?
A:We will send the detailed manual and teaching videos with the package of the printer before use the machine, please read the manual and watch the teaching video and operate strictly as the instructions, and if any question unclarified, our technical support online by teamviewer and video call will be help.
Q6:What about the warranty?
A:We have 13 months warranty and lifelong technical support, not include consumables like print head and ink dampers.
Q7:What's the printing cost?
A:Usually,1 square meter need cost about $1 printing cost with our good quality ink.
Q8:Where can I buy the spare parts and inks?
A:All spare parts and ink will be available from us during the whole lifespan of printer, or you can buy at local.
Q9:What about maintenance of the printer?
A:The printer has auto-cleaning and auto keep wet system, each time before power off machine, please do a normal cleaning so that keep print head wet.
If you don't use the printer more than 1 week, it’s better to power on machine 3 days later to do a test and auto clean.
