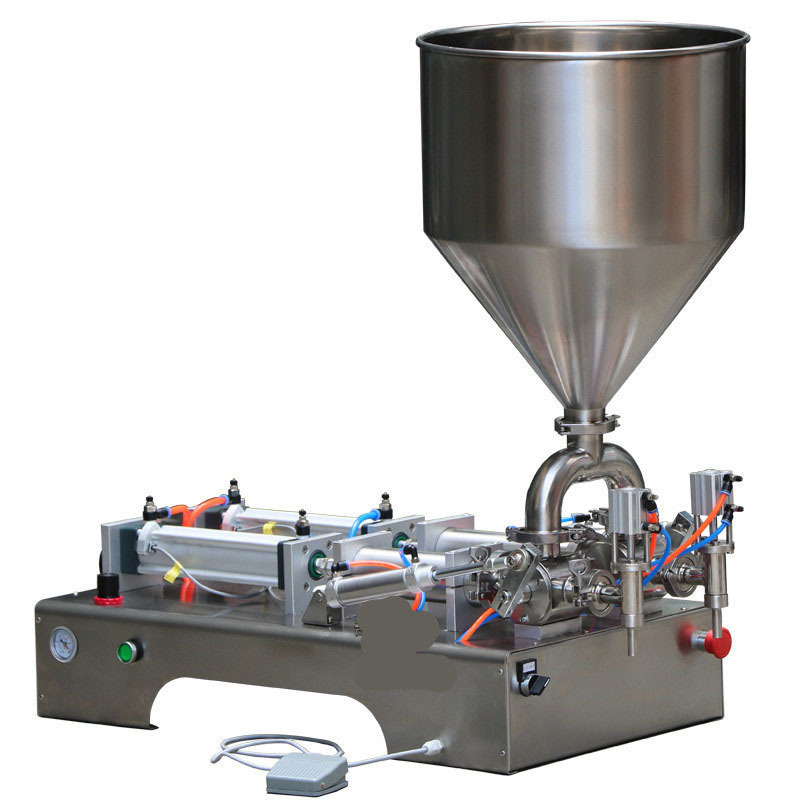

Lotion filling machine semi automatic Multi-Functional Double Head Piston Filler For Wholesales

Lotion filling machine semi automatic Multi-Functional Double Head Piston Filler For Wholesales

FOB Reference Price: Get Latest Price

≥1 Sets

US $399

≥10 Sets

US $360

≥100 Sets

US $320

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Filling Accuracy:: ± 1%, ± 1%

Voltage:: 220V/110V

Place of Origin:: Jiangsu, China

Brand Name:: BRENU

Dimension(L*W*H):: 95*63*35cm

Weight:: 50 KG

Product name:: piston filler double head

Key word:: double head piston filler

Material:: Stainless Steel

Filling Range:: 5-5000ml

Working pressure:: 0.6 MPA

Filling speed:: 10-30 bottles/min

Fillling material:: cream & shampoo,Cosmetic etc

Fillling nozzle::: 2 NOZZLES

Quick Details

Machinery Capacity:: 4000BPH

Packaging Material:: Plastic, Glass

Filling Material:: Beer, Other, Milk, Water, Oil, Juice

Filling Accuracy:: ± 1%, ± 1%

Voltage:: 220V/110V

Place of Origin:: Jiangsu, China

Brand Name:: BRENU

Dimension(L*W*H):: 95*63*35cm

Weight:: 50 KG

Product name:: piston filler double head

Key word:: double head piston filler

Material:: Stainless Steel

Filling Range:: 5-5000ml

Working pressure:: 0.6 MPA

Filling speed:: 10-30 bottles/min

Fillling material:: cream & shampoo,Cosmetic etc

Fillling nozzle::: 2 NOZZLES

Liquid Bottle Filler Filling Machine

Product Categories >> Packing Machine >> Filling Machine

Technical Parameters:

Machine Model	G1WY-100	G1WY-300	G1WY-500	G1WY-1000	G1WY-3000	G1WYG-5000
Filling Speed	10-35n/min(take water for example).
Filling Range	10-100ml	30-300ml	50-500ml	100-1000ml	300-3000ml	500-5000ml
Air Pressure	0.4~0.6mpa
Filling Error	±1%
Machine Size	806(L) × 180(W) ×690(H)mm	880(L) ×230(W) ×665(H)mm	880(L) × 230(W) ×665(H)mm	1065 (L) ×230(W) ×665(H)mm	1250(L) ×400(W) ×300(H)mm	1390(L) ×420(W) ×380(H)6mm
Machine Weight	42 Kg	45Kg	48Kg	52Kg	64 Kg	86 Kg.

Note: the machine can be filled with 5L, suitable for liquid and semi-fluid materials such as soy sauce, vinegar, liquor, lubricating oil, pesticide, shampoo, shower gel and hand sanitizer.

Principle
GFA series of semi-automatic filling machine piston filler. Driven by a cylinder and piston made from materials with FIVE-way valves control the flow of materials, and magnetic reed switch control cylinder itinerary can be regulated filling volume.
1. Rational design of the aircraft, model compact, easy to operate, are used pneumatic part of Germany and Taiwan AirTac FESTO the pneumatic components.
2. Some contact materials are used 316 L stainless steel materials, in line with the GMP requirements.
3. Filling volume and speed of filling can be arbitrary regulation, filling high accuracy.
