- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Innovo
-
Voltage:
-
220V/380V
-
Power:
-
5.5KW, 2.2kw/220v
-
Dimension(L*W*H):
-
2950*1320*1500mm
-
Weight:
-
2500 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
warranty:
-
one year
-
delivery time:
-
20 days
-
Max size:
-
500*400*150mm
-
Min size:
-
60*60*10mm
-
Speed:
-
15--25pcs/min
-
After Warranty Service:
-
Video technical support
Quick Details
-
Production Capacity:
-
20pcs/minute
-
Product Type:
-
box making machine
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Innovo
-
Voltage:
-
220V/380V
-
Power:
-
5.5KW, 2.2kw/220v
-
Dimension(L*W*H):
-
2950*1320*1500mm
-
Weight:
-
2500 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
warranty:
-
one year
-
delivery time:
-
20 days
-
Max size:
-
500*400*150mm
-
Min size:
-
60*60*10mm
-
Speed:
-
15--25pcs/min
-
After Warranty Service:
-
Video technical support

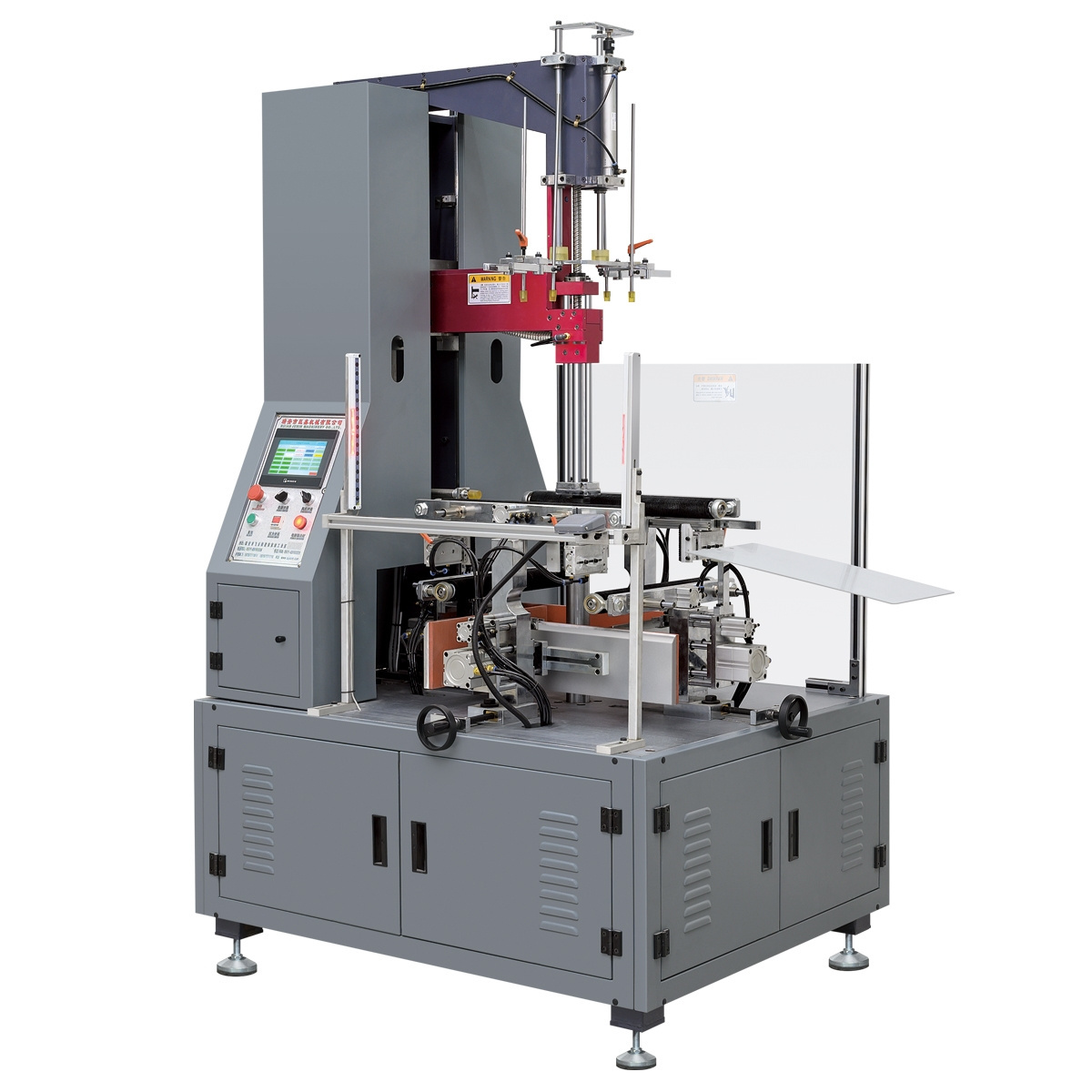

Gift Box Making Machine/Box Pasting Machine/Box Making Line Machine
Function :
1.After notching, the surface of cardboard is very clean and no dust.
2.The machine is very economization, total power is 3.7kw only and it is little noise.
3.The machine can produce about 1000pcs boxes per hour that feeding by hand, it is very fast.
4.The cutting blade can cut 10000-18000 sheets one time, then you should to sharp the blade and it is takes about two minutes only. We will supply a sharpen machine by free and it’s very easy to operation.
5.The cutting degree is adjustable.
6.The machine could groove any thickness from 300gsm-3.6mm,and need not to adjust anything.
|
Model |
KC-1000 |
KC-1300 |
|
Width of cardboard |
100-900mm |
100-1200mm |
|
Length of cardboard |
100-1000mm |
100-1000mm |
|
Distance of each groove |
0-830mm |
0-830mm |
|
Thickness of cardboard |
300gsm-3.4mm |
300gsm-3.4mm |
|
Grooving degree |
80-140 adjustable |
80-140 adjustable |
|
The amount of groove |
9 pieces one time |
9 pieces one time |
|
Production speed |
10-35m/min |
10-35m/min |
|
Power |
2.2kw/380V |
2.2kw/380V |
|
Dimension(L*W*H) |
1500*1400*2000mm |
1500*1400*2000mm |
|
Weight |
1500kg |
1500kg |
Features:
1, Automatically heating and temperature control, great accessory with temperature numerical manifestation.
2, single-arm press device can freely control by foot pedal switch and cover with time delay function.
3, Manual to turn over the box when pasting, it can applies to many kinds of products.
4,Paper hot melt glue tape or plastic hot melt glue tape can be adopted,length of adhesive tape can adjust within 5-35mm.
Technical Parameter:
|
Type |
Box corner pasting machine A-40 |
|
Power supply |
220V/50HZ 1phase 0.4KW |
|
Minimum Size of Box |
L40 x W40 mm |
|
Height of Box |
10-300mm |
|
Production Speed |
25-35 pcs/min |
|
Tape length |
5-35mm |
|
Machine dimension |
L800 x W500 x H1400 mm |
|
Weight |
120KG |
|
Model |
ZX-650A |
ZX-850A |
|
Sheet thickness |
80-200g |
80-200g |
|
Sheet cover MAX width |
600MM |
800MM |
|
Sheet cover MAX length |
100-2000MM |
100-2000MM |
|
Production speed |
0-40unis/miute |
0-40unis/miute |
|
Power |
9KW/380V |
9KW/380V |
|
Size of Machine |
9KW/380V |
9KW/380V |
|
Weight of Machine |
850kg |
1000kg |
Performance;
1,The machine is completed by a servo motor, PLC programmable control.
2,The machine commissioning completed by the HMI selective, simple and easy to adjust.
3,The machine contfol accessories for all full use of international high-end brands, the failure of low and high accuracy.
4,The machine with a fault alarm functions, such as and part of the failure, the alarm will whistle, fault will be displayed on the screen.
5,The machine can touch with emergency stop switch, if an emergency press stops automatically.
Technical parameters
|
Model: |
TDA-430 |
|
Max size: |
460*460*120mm |
|
The minimum processing size: |
60*60*10mm |
|
Total Power: |
T2.2kw/220v |
|
Speed: |
15--25pcs/min |
|
Dimensions: |
1310*1220*220mm |
|
Total Weight: |
1000kg |
1. The packing is confirm to export wooden case standard, strong and durable. The wooden case’s thickness is generally 1 cm.
2. In order to be waterproof, we usually use bubble film to wrap machine.
3. We can handle shipping for customers too.
