Quick Details
-
Brand Name:
-
JXSC
-
Dimension(L*W*H):
-
depending on model
-
Weight:
-
KG
-
Product name:
-
1214 Blow Bar PF 1315 Fine Horizontal Impact Crusher Machine
-
The Machines classification:
-
Crushing Line
-
Max feeding size:
-
300-700mm
-
Output size:
-
small size and cubic shape
-
Spare parts supply:
-
Anytime
-
Test&Installation:
-
Engineer Guide
-
Price:
-
Competetive (can Discuss
-
Processed Materials:
-
200 Kinds Materials(<300 Mpa)
-
Function:
-
Crushing Material
-
After sale Service:
-
Life Long Operation Time
Quick Details
-
Application:
-
mining, metallurgy, building, highway, railway
-
Capacity(t/h):
-
30-500t/h
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
JXSC
-
Dimension(L*W*H):
-
depending on model
-
Weight:
-
KG
-
Product name:
-
1214 Blow Bar PF 1315 Fine Horizontal Impact Crusher Machine
-
The Machines classification:
-
Crushing Line
-
Max feeding size:
-
300-700mm
-
Output size:
-
small size and cubic shape
-
Spare parts supply:
-
Anytime
-
Test&Installation:
-
Engineer Guide
-
Price:
-
Competetive (can Discuss
-
Processed Materials:
-
200 Kinds Materials(<300 Mpa)
-
Function:
-
Crushing Material
-
After sale Service:
-
Life Long Operation Time
Product Description

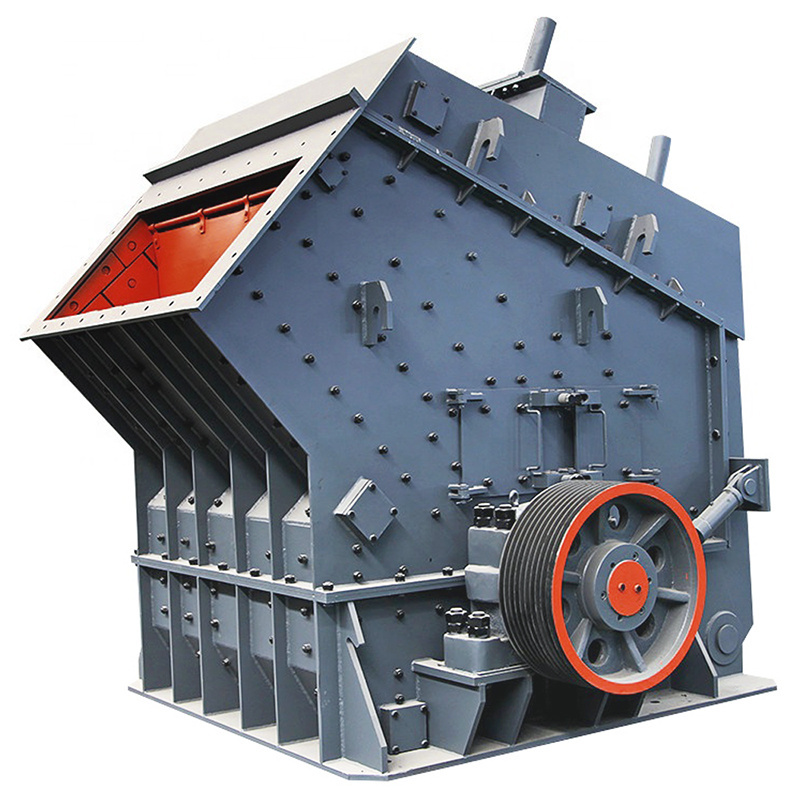

Gold Ore Crusher Mobile Impact Stone Crusher Price Wear Parts 1214 Blow Bar PF 1315 Fine Horizontal Impact Crusher Machine
Product introduction:
Impact crusher is suitable for the mining, metallurgy, cement, building materials,chemical industry, water and electricity, etc.We produce the hard rock impact crusher adopts advanced technology at home and abroad. Equipped with high chromium plate hammer, unique impact plate, row particle size is adjustable, the broken process can be simple, can be used for crushing more hard rock.
Application Field:
Quarry,mining, coal mining, dry powder mortar, concrete mixing station, power plant, desulfurization, quartz sand, etc.
Suitable Material:
Pebble,granite, basalt, iron ore, limestone, quartz, diabase, etc.
Quarry,mining, coal mining, dry powder mortar, concrete mixing station, power plant, desulfurization, quartz sand, etc.
Suitable Material:
Pebble,granite, basalt, iron ore, limestone, quartz, diabase, etc.
Principle of Operation:
Impact crusher use of impact to broke material. When it working, the rotor high-speed rotation with the motor driven. The material into crusher, impact the rotor on plate hammer and broken. Then it is back to the lining plate broken again, finally discharged from the discharge port. The user can adjust the clearance between the back frame and rotor frame, change the material grain size and shape.
Performance characteristics:
1) A novel structure, unique, stable operation, multi cavity uniform broken,suitable for crushing hard rock.
2) Low energy consumption, high yield, high crushing ratio, for general 10-20, high upto 50-60.
3) With the shaping function, product is cubic shape, high packing density, adjustable discharge size, simplified crushing
process.
4) All the whole plate structure to discharge is small size and cubic, no inner crack.
5) Feeding port is low and big, easy to arrange production line and increase the feed size.
6) Impact crusher use of new wear-resistant material, so the plate hammer, impact plateand lining board has longer service life.
7) Easy to use and repair, can be used as selective crushing.
8) Unique tooth type impact lining board, especially suitable for crushing hard rock, high efficiency and energy saving.
1) A novel structure, unique, stable operation, multi cavity uniform broken,suitable for crushing hard rock.
2) Low energy consumption, high yield, high crushing ratio, for general 10-20, high upto 50-60.
3) With the shaping function, product is cubic shape, high packing density, adjustable discharge size, simplified crushing
process.
4) All the whole plate structure to discharge is small size and cubic, no inner crack.
5) Feeding port is low and big, easy to arrange production line and increase the feed size.
6) Impact crusher use of new wear-resistant material, so the plate hammer, impact plateand lining board has longer service life.
7) Easy to use and repair, can be used as selective crushing.
8) Unique tooth type impact lining board, especially suitable for crushing hard rock, high efficiency and energy saving.
Product Paramenters
|
Model
|
Rotor Spec (mm)
|
Feed opening size (mm)
|
Max Feed edge(mm)
|
Capacity (t/h)
|
Motor Power(kw)
|
Weight(t)
|
Overall Dimension
(L*W*H)mm
|
|
PF-1007
|
1000*700
|
400*730
|
300
|
30-50
|
37-55
|
9.5
|
2400×1558×2660
|
|
PF-1010
|
1000*1050
|
400*1080
|
350
|
50-80
|
55-75
|
12.2
|
2400×2250×2620
|
|
PF-1210
|
1250*1050
|
400*1080
|
350
|
70-120
|
110-132
|
14.9
|
2690×2338×2890
|
|
PF-1214
|
1250*1400
|
400*1430
|
350
|
110-180
|
132-160
|
18.6
|
2690×2688×2890
|
|
PF-1315
|
1320*1500
|
860*1520
|
500
|
160-250
|
180-260
|
19.3
|
3096×3273×2667
|
|
PF-1320
|
1320*2000
|
860*2030
|
500
|
160-350
|
300-375
|
28
|
3096×3560×3185
|
|
PF-1520
|
1500*2000
|
1315*2040
|
700
|
300-500
|
400-450
|
42.8
|
3890×3560×3220
|
Packing&Shipping
Packing with plastic film and load by containers
Container: 40HQ/40GP/20GP/40FR/20FR
Loading Port: Xiamen, Shenzhen, Guangzhou port etc
Trade term:FOB, CIF, CFR, EXW, DDU, DDP
Delivery time:7-30 days, after receiving 30% deposit, balance should be paid before loading
Loading Port: Xiamen, Shenzhen, Guangzhou port etc
Trade term:FOB, CIF, CFR, EXW, DDU, DDP
Delivery time:7-30 days, after receiving 30% deposit, balance should be paid before loading
Company Introduction
Jiangxi Walker Machinery Factory was established in 1985, it's a professional machinery factory special in mining equipment research, manufacturing, sales and offers professional mine processing plant workflow design, plant installation, equipment maintenance, beneficiation processing technology guidance service as one of the metallurgical machinery equipment factory. Our products are exported to Southeast Asia, South& North America, Africa, Mid-East, Europe and many other countries and regions.We are committed to creating high quality and efficient crushing and screening equipment,quality is our eternal pursuit and responsibility.
Our Workshop:
Our customers:
Our successful cases:
Certifications:
FAQ
●How long is the guarantee?
All of our products are guaranteed for one year. If products quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
●What is the delivery time?
Usually 7 days, if need motor, about 15 days.
●What is the nearest port?
Xiamen, Guangzhou, Shenzhen
●What is the trade terms?
Ex-work factory, FOB, CNF, CIF, DDU ect is acceptable.
●Service and Payment Terms?
We can accept T/T and L/C; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
All of our products are guaranteed for one year. If products quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
●What is the delivery time?
Usually 7 days, if need motor, about 15 days.
●What is the nearest port?
Xiamen, Guangzhou, Shenzhen
●What is the trade terms?
Ex-work factory, FOB, CNF, CIF, DDU ect is acceptable.
●Service and Payment Terms?
We can accept T/T and L/C; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
