Quick Details
-
Weight:
-
300 KG
-
Machine code:
-
ZH-08
-
Cutting length:
-
20-80mm
-
Cutting width:
-
10-60mm
-
Cutting speed:
-
200 times/min
-
Label cutting speed:
-
170pcs/min
-
Label folding speed:
-
130pcs/min
-
Electric supply:
-
AC220V, 50/60Hz
-
Total power:
-
3kW
-
Machine dimension:
-
1200 x 1400 x 1600mm
-
Machine weight:
-
300kg
Quick Details
-
Application:
-
Textiles
-
Place of Origin:
-
China
-
Dimension(L*W*H):
-
1200 x 1400 x 1600mm
-
Weight:
-
300 KG
-
Machine code:
-
ZH-08
-
Cutting length:
-
20-80mm
-
Cutting width:
-
10-60mm
-
Cutting speed:
-
200 times/min
-
Label cutting speed:
-
170pcs/min
-
Label folding speed:
-
130pcs/min
-
Electric supply:
-
AC220V, 50/60Hz
-
Total power:
-
3kW
-
Machine dimension:
-
1200 x 1400 x 1600mm
-
Machine weight:
-
300kg

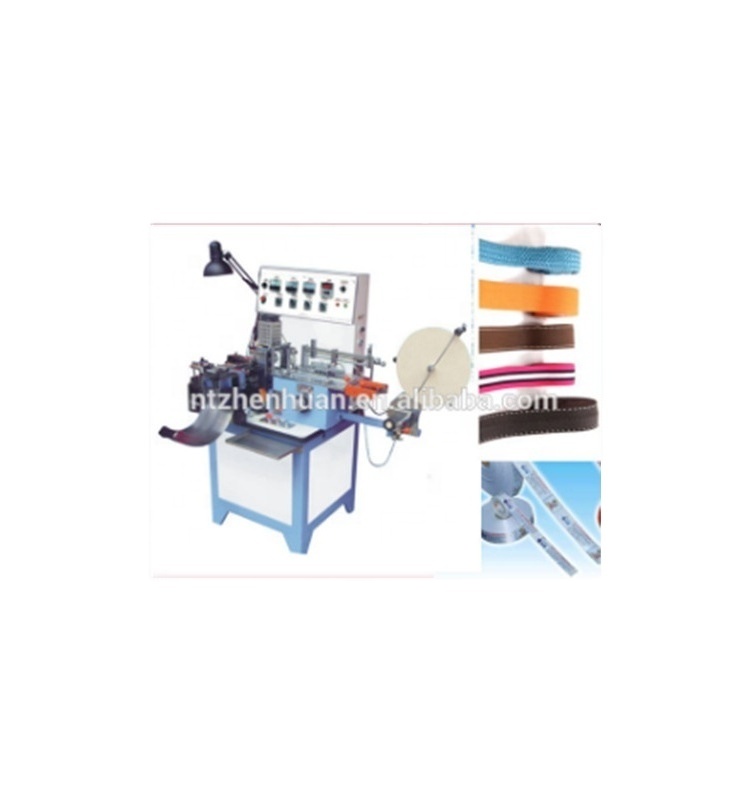

Automatic ultrasonic ribbon label cut and fold machine
I Description of ribbon label cut and fold machine
This machine is used for cutting, folding and sealing various kinds of fabric tapes with label, such as reel of silk tape, satin tape, nylon tape and so on.
It is more suitable for very thinner tapes.
This machine is widely used in ribbon factory, elastic factory, lace factory, silk factory and so on.
II Characteristic of ribbon label cut and fold machine
- 1. Adopting the principle of ultrasonic, fast cutting speed, no peeling off, waste removing;
- 2. This machine has cutting, folding, different length folding, half folding, sealing and stacking.
- 3. This machine can be discerned various kind of labels exactly.
- 4. PLC control and HMI
- 5. Smart control and easy operation
III Main technical data of ribbon label cut and fold machine
|
Item |
Data |
|
Machine code |
ZH-08 |
|
Cutting length |
20-80mm |
|
Cutting width |
10-60mm |
|
Cutting speed |
200 times/min |
|
Label cutting speed |
170pcs/min |
|
Label folding speed |
130pcs/min |
|
Electric supply |
AC220V, 50/60Hz |
|
Total power |
3kW |
|
Machine dimension |
1200 x 1400 x 1600mm |
|
Machine weight |
300kg |
|
Application |
Silk tape, satin tape, Nylon tape, etc. |
|
Video link |
https://youtu.be/04qznADj75I |
Single cutting size
|
Narrowest |
10mm |
|
Widest |
60mm |
|
Shortest |
20mm |
|
Longest |
80mm |
Center folding size
|
Narrowest |
10mm |
|
Widest |
60mm |
|
Shortest |
20mm |
|
Longest |
80mm |
