Quick Details
-
Model Number:
-
FRPV1-32
-
Pole:
-
1P
-
Voltage:
-
1000VDC
-
Working Temperature:
-
-5 to + 40
-
Rated current:
-
1-32A
-
Standard:
-
IEC/EN60269
-
Current:
-
32A
-
Fuse Size:
-
10*38mm
-
MOQ:
-
10 Pieces
-
SHIPPING:
-
DHL UPS FedEx EMS
-
Color:
-
White
Quick Details
-
Breaking Capacity:
-
High
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
USFULL
-
Model Number:
-
FRPV1-32
-
Pole:
-
1P
-
Voltage:
-
1000VDC
-
Working Temperature:
-
-5 to + 40
-
Rated current:
-
1-32A
-
Standard:
-
IEC/EN60269
-
Current:
-
32A
-
Fuse Size:
-
10*38mm
-
MOQ:
-
10 Pieces
-
SHIPPING:
-
DHL UPS FedEx EMS
-
Color:
-
White
Product Overviews

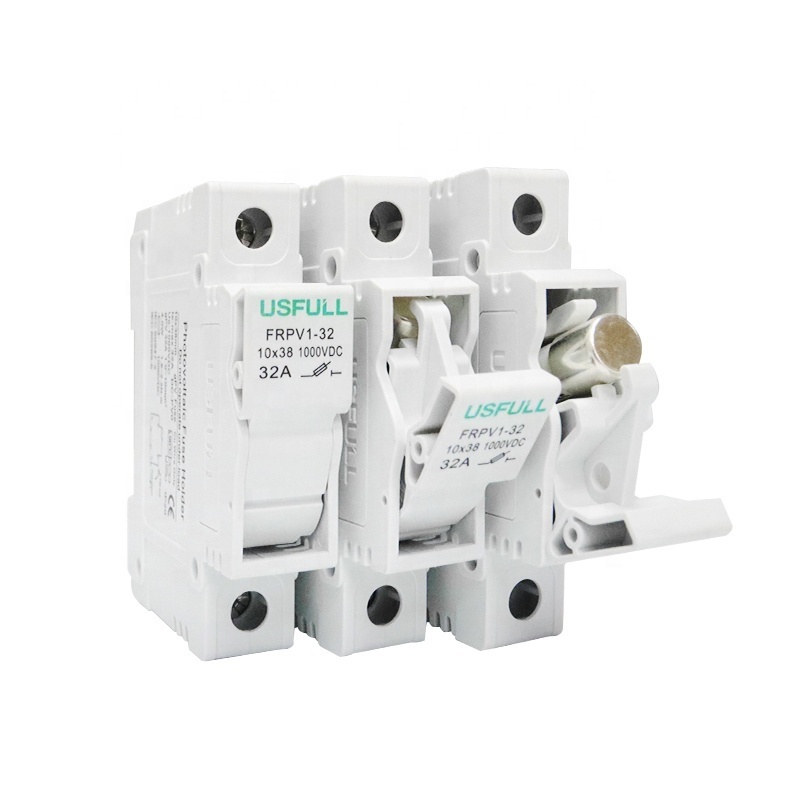

USFULL Best selling CE DC PV 1 Pole 2 Pole 1000V 10*38mm 30A Fuse Base Fuse Box DC Fuse Holder for solar energy system
A range of 10x38mm fuse links is specifically designed for protecting photovoltaic strings. These fuse-links are capable of interrupting low overcurrents associated with faulted photovoltaic string arrays (reverse current, multi-array fault).
DC Fuse Parameters:
| Specification | ||
| Product Model | FRPV1-32 | |
| Pole | 1P/2P | |
| Rated Voltage | DC 1000V | |
| Rated Current(A) | 1-32A | |
| Short-Circuit Breaking Capacity | 22KA | |
| Max Power Attenuation | 2.5-10mm² | |
| Protection Grade | IP20 | |
| Connection | 3.5KW | |
| Operation Ambient Temperature | -30℃ to +70℃ | |
| Resistance and Damp Hot | Class 2 | |
| Elevation | ≤2000 | |
| Installation Way | TH35-7.5/ 35mm Din Rail Installation | |
| RH(relative air humidity) | when +20℃, not exceed 95%; when +40℃, not exceed 50% | |
| Pollution Class | +3 | |
| Installation Environment | the place of no obvious vibrate&impact | |
| Installation class |
III |
|
| Dimension | 80x18x60 mm | 82x18x62 mm |
| Weight | 0.07KG | |
