Quick Details
-
Application:
-
Hospital
-
Design Style:
-
Modern
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Better Products
-
Model Number:
-
BP Helical anchors
-
Length:
-
3ft, 5ft, 7ft, or according to customer's demand
-
Material:
-
Highest quality steel
-
Surface treatment:
-
Hot Dipped Galvanized, Painted or Powder Coated
-
Features:
-
Installs quickly
-
Colors:
-
Any colors are available on request
-
Product name:
-
Deep Foundation Screw Piles & Helical Piers
-
Brand name:
-
BP
-
Corrosion protection:
-
conforms to ASTM A153
-
Helices material:
-
ASTM A36
Quick Details
-
Warranty:
-
NONE
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
graphic design
-
Application:
-
Hospital
-
Design Style:
-
Modern
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Better Products
-
Model Number:
-
BP Helical anchors
-
Length:
-
3ft, 5ft, 7ft, or according to customer's demand
-
Material:
-
Highest quality steel
-
Surface treatment:
-
Hot Dipped Galvanized, Painted or Powder Coated
-
Features:
-
Installs quickly
-
Colors:
-
Any colors are available on request
-
Product name:
-
Deep Foundation Screw Piles & Helical Piers
-
Brand name:
-
BP
-
Corrosion protection:
-
conforms to ASTM A153
-
Helices material:
-
ASTM A36

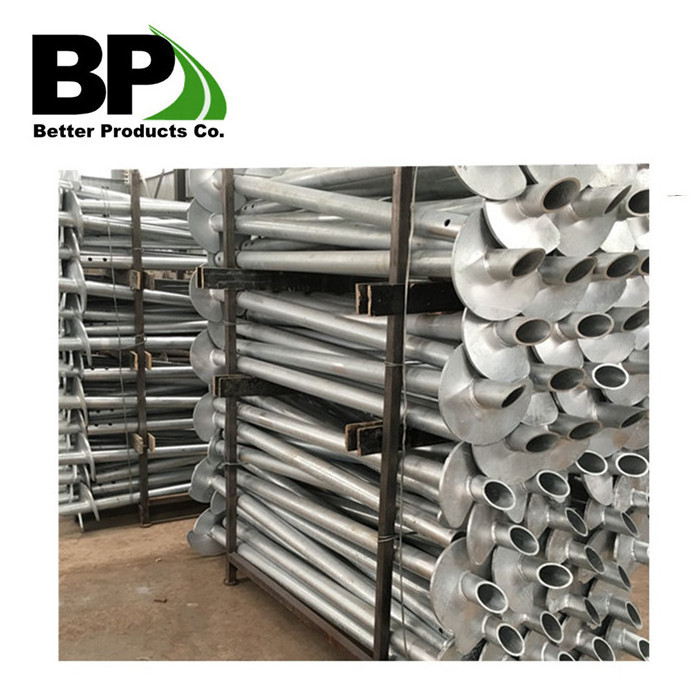

High Quality Deep Foundation Screw Piles Helical Piers for North American
|
Shaft Size |
Installation Torque Factor (k) |
Axial Compression Load Limit |
Ultimate-Limit Tension Strength |
Useable Torsional Strength |
Practical Load Limit Based Torsional Strength |
|
1-1/2” Square Bar |
9 - 11 |
70,000 lb. |
70,000 lb. |
7,500 ft-lb |
Load limited to the rated capacity of the attachments and the lateral soil strength against the shaft |
|
1-3/4” Square Bar |
9 - 11 |
100,000 lb. |
100,000 lb. |
11,000 ft-lb |
|
|
2-1/4” Square Bar |
10 - 12 |
200,000 lb. |
200,000 lb. |
23,000 ft-lb |
|
|
2-7/8” Tubular – 0.203 ” Wall |
8 - 9 |
60,000 lb. |
60,000 lb. |
5,500 ft-lb |
44,000 lb |
|
2-7/8” Tubular – 0.262 ” Wall |
8 - 9 |
100,000 lb. |
100,000 lb. |
9,500 ft-lb |
80,000 lb |
|
3-1/2” Tubular – 0.300 ” Wall |
7 - 8 |
115,000 lb. |
120,000 lb. |
13,000 ft-lb |
97,000 lb |
|
4-1/2” Tubular – 0.337 ” Wall |
6 - 7 |
160,000 lb. |
160,000 lb. |
22,000 ft-lb |
143,000 lb |
|
Helix Blade |
8", 10", 12" and 14" in diameter with 3/8", 1/2" thickness.
|
||||
|
Finish
|
Plain, Hot Dipped Galvanized, Painted, Powder Coating are available on your request. |
||||
