Quick Details
-
Table Travel (Z) (mm):
-
900 mm
-
Travel (W-axis) (mm):
-
900 mm
-
Range of Spindle Speed(r.p.m):
-
0.5 r.p.m
-
Spindle Motor Power(kW):
-
2.5Kw
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JOYSUNG
-
Voltage:
-
110V/230V
-
Weight (T):
-
0.15 T
-
Boring Stroke:
-
400mm,600mm,900mm
-
Boring Range:
-
65-600 mm
-
Boring Bar:
-
60*2000/2500/3000/3500/4000/4500mm
-
Motor Power (kw):
-
2.5kw
Quick Details
-
Table Size (mm):
-
Other
-
Table Travel (X) (mm):
-
900 mm
-
Table Travel (Y) (mm):
-
900 mm
-
Table Travel (Z) (mm):
-
900 mm
-
Travel (W-axis) (mm):
-
900 mm
-
Range of Spindle Speed(r.p.m):
-
0.5 r.p.m
-
Spindle Motor Power(kW):
-
2.5Kw
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JOYSUNG
-
Voltage:
-
110V/230V
-
Weight (T):
-
0.15 T
-
Boring Stroke:
-
400mm,600mm,900mm
-
Boring Range:
-
65-600 mm
-
Boring Bar:
-
60*2000/2500/3000/3500/4000/4500mm
-
Motor Power (kw):
-
2.5kw

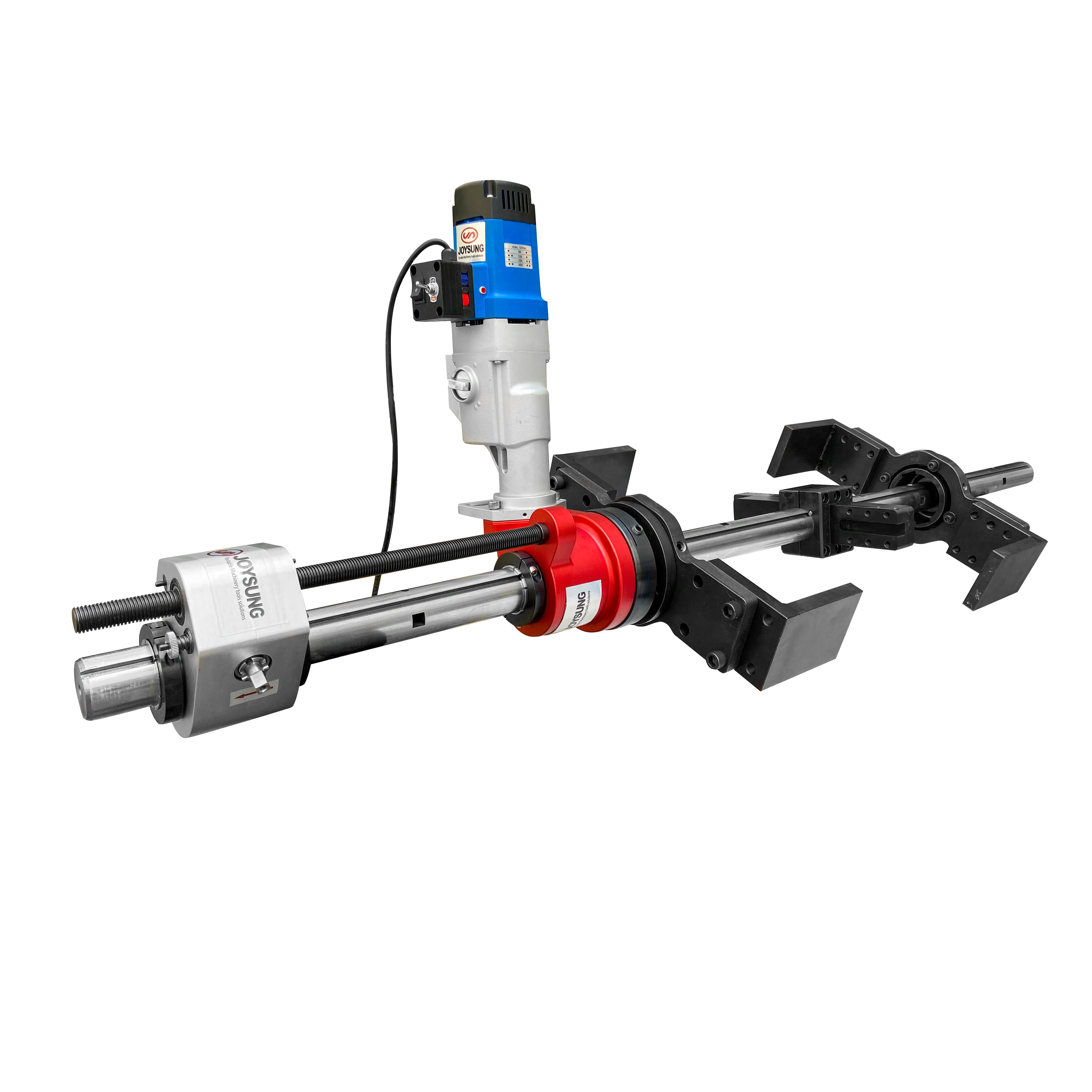

Cylinder Block And Head Line Boring Machine TDG 60 Line Boring Machine
TDG60 boring machine, we have a number of boring bars of different lengths to match it, which can meet more special requirements of the operation scenarios, especially the processing scenarios where the double hole distance is too large and the double hole level is strictly required.
It can also process small hole diameters, and it only needs to install the rotating diameter device to process, and one machine can meet more processing requirements.
Multiple mounting kit types are available, which are more stable and precise when working with long boring bars.
| Model | TDG60 |
| Boring diameter | Ø65-600mm |
| Boring stroke | 400mm,600mm,900mm |
| Feed rate | 0-0.5mm/rev |
| Drive power unit | 2500w,230V/110V,50/60Hz |
| Facing head | 80-350mm,200-650mm |
| Bar rpm | 0-90 |
| Boring car |
Ø60*2000/2500/3000/3500/4000/4500mm Ø30*1200/2000mm(optional) |
| Mounting kit |
Single Arm Mounting Kit, Double Arm Mounting Kit, Universal Mounting Kit ,ID Mounting Kit, Adjustable ID Mounting Kit, Spherical Bearing |
| Shipping weight | 125kg |
