Quick Details
-
Brand Name:
-
AIK
-
Model Number:
-
XRY-1A
-
Name:
-
Oxygen Bomb Calorimeter XRY-1A
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
AIK
-
Model Number:
-
XRY-1A
-
Name:
-
Oxygen Bomb Calorimeter XRY-1A
Product Description

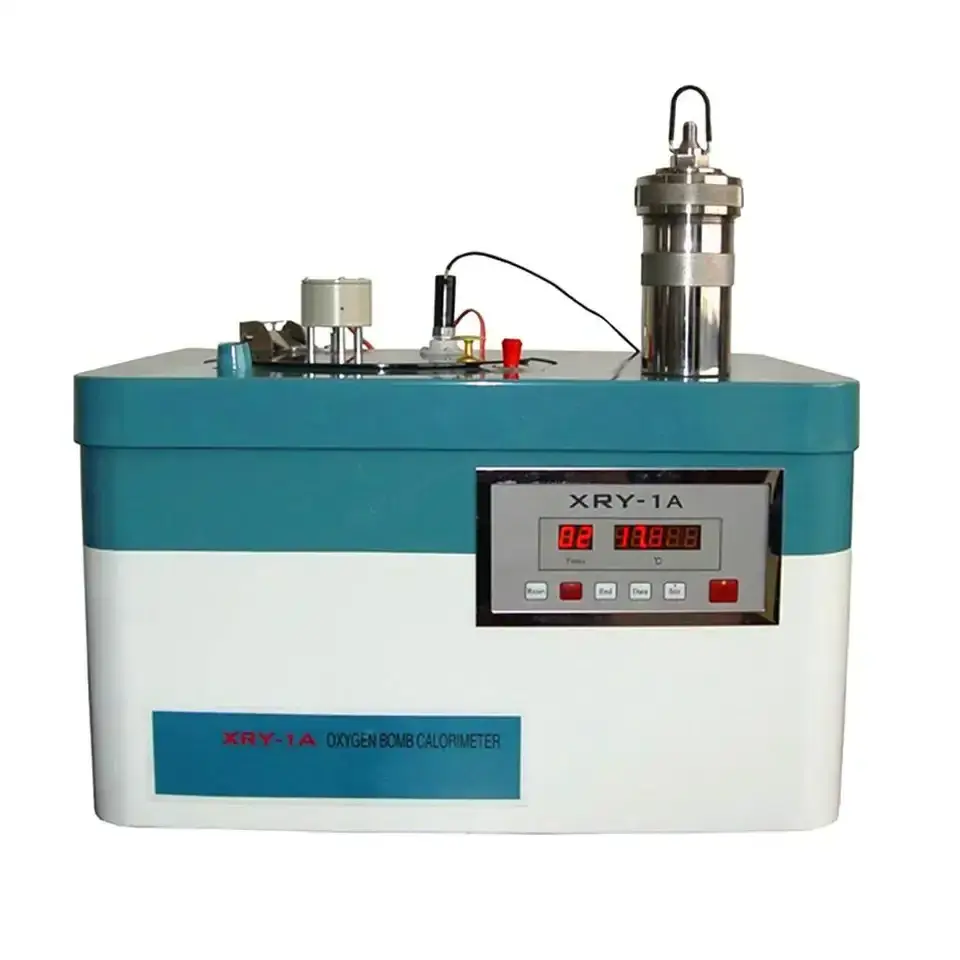

XRY-1A Laboratory Oxygen Bomb Calorimeter For Sale
Descriptions:
XRY-1A type oxygen bomb calorimeter is based on the national standard GB/T 213-2008 "Method for measuring calorific value of coal", GB/T 384-1988 "Measurement method for calorific value of petroleum products". The Oxygen Bomb Calorimeter are applicable to the determination of non-aqueous petroleum products (gasoline, jet fuel, diesel and fuel oil, etc.) and flammable substances such as coal, coke and paraffin. The determination of calorific value is a high-end instrument that is automatic, efficient, safe, with high test accuracy, fast test speed and convenient use.
Main technical characteristics:
1. This instrument adopts single-chip control technology, color LCD display, high-precision temperature sensor and
high-performance A/D conversion device, which constitutes intelligent instrument with high automation degree, good visual effect, convenient use and convenient data arrangement.
2. The test process of the instrument is completely automated. After the sample is placed, various correct parameters are input, and each test process is automatically completed without manual intervention. After the test is finished, the measurement data can be directly printed.
3. This instrument adopts self-sealing oxygen bomb. All the structures are made of stainless steel, and the strength is enough to withstand the water pressure test of 20MPa under room temperature conditions.
4. The inner water tube of the instrument is made of stainless steel thin plate, the cross section is pear row, the water volume of the water cylinder is 3000 grams, and the electric mixer is arranged inside the water cylinder to ensure the temperature of the water bath of the inner water cylinder is even.
5. The outer water jacket of the instrument is a double-layer container. The experiment is filled with water. The water
temperature in the cylinder is evenly distributed through the water jacket agitator, to form a constant temperature environment that meets the test requirements.
Main technical parameters:
1. Heat capacity: (14000~15000) J/K, K is the symbol of absolute temperature, the below same.
2. Temperature resolution: 0.001K.
3. Thermal value error: ≤60J/g.
4. Temperature measurement range: (10 ~ 35) °C.
5. Repeatability error: ≤0.2% (Grade C).
6. Oxygen bomb pressure: 20MPa.
7. Ambient temperature: (15~28) °C, the temperature fluctuation during one test is not more than 1 °C.
8. Ambient humidity: less than 85%.
9. Working power: AC220V ± 5%, 50Hz.
10. Power consumption of the whole machine: no more than 150W.
11, Dimensions: 600mm × 480mm × 460mm (length × width × height)
XRY-1A type oxygen bomb calorimeter is based on the national standard GB/T 213-2008 "Method for measuring calorific value of coal", GB/T 384-1988 "Measurement method for calorific value of petroleum products". The Oxygen Bomb Calorimeter are applicable to the determination of non-aqueous petroleum products (gasoline, jet fuel, diesel and fuel oil, etc.) and flammable substances such as coal, coke and paraffin. The determination of calorific value is a high-end instrument that is automatic, efficient, safe, with high test accuracy, fast test speed and convenient use.
Main technical characteristics:
1. This instrument adopts single-chip control technology, color LCD display, high-precision temperature sensor and
high-performance A/D conversion device, which constitutes intelligent instrument with high automation degree, good visual effect, convenient use and convenient data arrangement.
2. The test process of the instrument is completely automated. After the sample is placed, various correct parameters are input, and each test process is automatically completed without manual intervention. After the test is finished, the measurement data can be directly printed.
3. This instrument adopts self-sealing oxygen bomb. All the structures are made of stainless steel, and the strength is enough to withstand the water pressure test of 20MPa under room temperature conditions.
4. The inner water tube of the instrument is made of stainless steel thin plate, the cross section is pear row, the water volume of the water cylinder is 3000 grams, and the electric mixer is arranged inside the water cylinder to ensure the temperature of the water bath of the inner water cylinder is even.
5. The outer water jacket of the instrument is a double-layer container. The experiment is filled with water. The water
temperature in the cylinder is evenly distributed through the water jacket agitator, to form a constant temperature environment that meets the test requirements.
Main technical parameters:
1. Heat capacity: (14000~15000) J/K, K is the symbol of absolute temperature, the below same.
2. Temperature resolution: 0.001K.
3. Thermal value error: ≤60J/g.
4. Temperature measurement range: (10 ~ 35) °C.
5. Repeatability error: ≤0.2% (Grade C).
6. Oxygen bomb pressure: 20MPa.
7. Ambient temperature: (15~28) °C, the temperature fluctuation during one test is not more than 1 °C.
8. Ambient humidity: less than 85%.
9. Working power: AC220V ± 5%, 50Hz.
10. Power consumption of the whole machine: no more than 150W.
11, Dimensions: 600mm × 480mm × 460mm (length × width × height)
Technical Parameters
|
Heat capacity
|
14400 J/K～15000 J/K
|
|
Resolution
|
0.001 K
|
|
Measurement accuracy
|
± 60J/g
|
|
Repeatability
|
≤0.2% (Grade C)
|
|
Pressure endurance of oxygen bomb
|
20 MPa
|
|
Temperature measurement range
|
10 ℃～35 ℃
|
|
Ambient temperature
|
20±5 ℃, the fluctuation is not more than 1 ℃ during one test
|
|
Data saved
|
31 pieces
|
|
Relative humidity
|
≤85%
|
|
Power supply
|
AC 220V±5%, 50 Hz
|
|
Dimension
|
600mm×460mm×430mm
|
|
(Note
|
Pellet press machine is optional accessory)
|
Packing List:
|
No
|
Name
|
Unit
|
Quantity
|
Remark
|
|
1
|
Main unit of calorimeter (including oxygen bomb, water jacket, bucket, stirrer and controller of calorimeter)
|
Set
|
1
|
|
|
2
|
Pellet press machine
|
Set
|
1
|
Optional part
|
|
3
|
Holder of bomb head
|
Set
|
1
|
|
|
4
|
Seat of oxygen bomb
|
Set
|
1
|
|
|
5
|
Temperature sensor
|
Piece
|
1
|
|
|
6
|
Thermometer (0～50 ℃)
|
Piece
|
1
|
|
|
7
|
Stopper for thermometer (silica gel stopper 2#)
|
Piece
|
1
|
|
|
8
|
Ignition wire (Φ0.1 nickel-chrome wire)
|
Meter
|
10
|
|
|
9
|
Crucible
|
Piece
|
2
|
|
|
10
|
Discharging valve
|
Piece
|
1
|
|
|
11
|
Oxygen decompression device
|
Piece
|
1
|
|
|
12
|
Oxygen tube
|
Pair
|
1
|
|
|
13
|
“O” seal ring (Φ20×2.4 mm)
|
Piece
|
5
|
|
|
14
|
“O” seal ring (Φ8×1.9 mm)
|
Piece
|
5
|
|
|
15
|
“O” seal ring (Φ6×1.9 mm)
|
Piece
|
5
|
|
|
16
|
Seal ring (large “O” ring)
|
Piece
|
2
|
|
|
17
|
Ignition connection wire
|
Piece
|
1
|
|
|
18
|
Siphon
|
Piece
|
1
|
|
|
19
|
Benzoic acid
|
Piece
|
10
|
|
|
20
|
Stopping ring for thermometer (1#)
|
Piece
|
4
|
|
|
21
|
Fuse 2 A (Φ5×20)
|
Piece
|
2
|
|
Note: If the test sample is a powdered coal sample, it is recommended to purchase our company's cake press separately to achieve better test results.
