- Product Details
- {{item.text}}

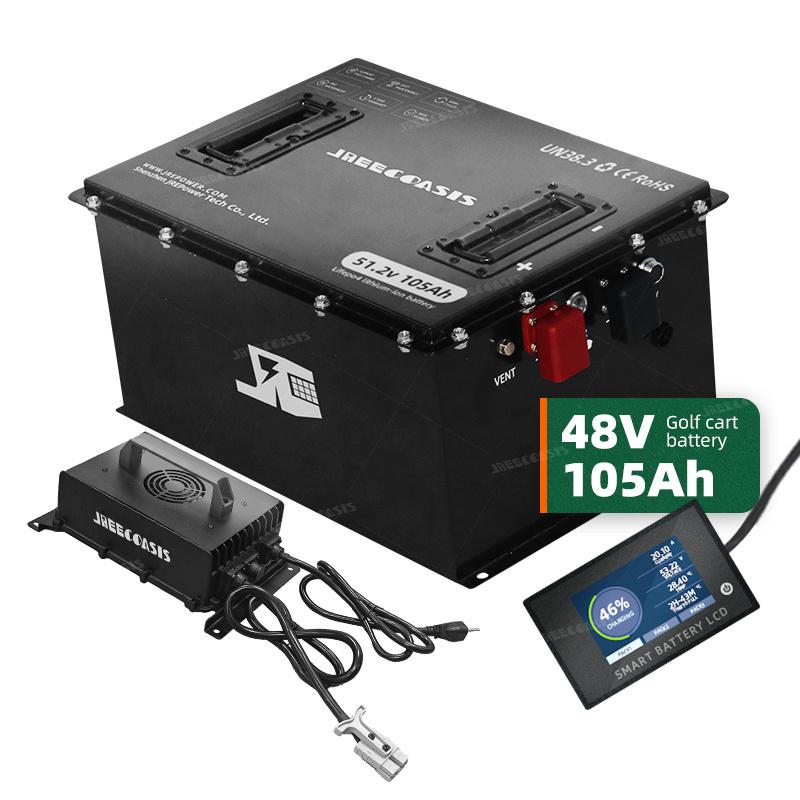

Quick Details
-
Brand Name:
-
JREPower / Jreecoasis
-
Model Number:
-
JSZG2790
-
Battery Size:
-
48V 105Ah LiFePO4 battery
-
Place of Origin:
-
shenzhen
-
Weight:
-
46.2±2KG, 46.2±2KG
-
The charging ratio:
-
0.5C - 1C
-
The discharge rate:
-
1C - 2C
-
Electric Energy:
-
5376 Wh
-
Rated voltage (V):
-
51.2V
-
Rated capacity (Ah):
-
105Ah
-
Cycle life:
-
>6000(80% DOD, 0.2C/1C)
-
Warranty:
-
5years
-
Max. Charge Current:
-
100A
-
Max. Continuous Discharge Current:
-
200A
-
Dimension:
-
460mm * 340mm * 235mm
-
Waterproof:
-
IP65
-
Common matching customization:
-
Waterproof/Fast charger/Bracket/Label Design/BT Function/Display
Quick Details
-
Storage Type:
-
Dry, cool, ventilated, 15℃ -20 ℃, Power 25-50%
-
Anode Material:
-
LFP
-
Application:
-
Golf Carts, Golf cart , electric tricycle , low speed car , sightseeing car
-
Brand Name:
-
JREPower / Jreecoasis
-
Model Number:
-
JSZG2790
-
Battery Size:
-
48V 105Ah LiFePO4 battery
-
Place of Origin:
-
shenzhen
-
Weight:
-
46.2±2KG, 46.2±2KG
-
The charging ratio:
-
0.5C - 1C
-
The discharge rate:
-
1C - 2C
-
Electric Energy:
-
5376 Wh
-
Rated voltage (V):
-
51.2V
-
Rated capacity (Ah):
-
105Ah
-
Cycle life:
-
>6000(80% DOD, 0.2C/1C)
-
Warranty:
-
5years
-
Max. Charge Current:
-
100A
-
Max. Continuous Discharge Current:
-
200A
-
Dimension:
-
460mm * 340mm * 235mm
-
Waterproof:
-
IP65
-
Common matching customization:
-
Waterproof/Fast charger/Bracket/Label Design/BT Function/Display
Series product list
JREPower / JREECOASIS
G Series golf cart battery
JREPower /JREECOASIS G Series golf cart battery, with independent development engineers and independent production line, this series of batteries, using a strong metal shell, through the strict quality inspection process of JREPower engineers, with exquisite scaffolding industrial design, for you or your customers to bring a better experience. Let your customers have a high-end brand impression of your brand. Create more business value for your brand.
* The following are popular JRE G series models
|
Model
number
|
Rated
voltage
|
Rated capacity
|
Energy
|
Max. Charge Current
|
Max.
Continuous
Discharge
Current
|
Outline Dimension
(mm)
|
Weigh
(Kg)
|
|||||||
|
36V (38.4)
|
100Ah
|
3840Wh
|
100A
|
200A
|
460×340×235
|
33±2
|
||||||||
|
48V (51.2)
|
50Ah
|
2560Wh
|
50A
|
100A
|
264×180×274
|
22.1±1
|
||||||||
|
48V (51.2)
|
60Ah
|
3072Wh
|
60A
|
120A
|
264×180×274
|
26.5±1
|
||||||||
|
48V (51.2)
|
100Ah
|
5120Wh
|
100A
|
200A
|
630*350*230
|
44±2
|
||||||||
|
48V (51.2)
|
105Ah
|
5376Wh
|
100A
|
200A
|
460×340×235
|
46.2±2
|
||||||||
|
48V (51.2)
|
120Ah
|
6144Wh
|
120A
|
200A
|
560×370×235
|
52.7±2
|
||||||||
|
48V (51.2)
|
150Ah
|
7680Wh
|
150A
|
200A
|
540×380×250
|
65.7±2
|
||||||||
|
48V (51.2)
|
200Ah
|
10240Wh
|
200A
|
200A
|
630×420×250
|
87.3±2
|
||||||||
|
72V (76.8)
|
60Ah
|
4608Wh
|
60A
|
120A
|
490×350×260
|
39.6±2
|
||||||||
|
72V (76.8)
|
100Ah
|
7680Wh
|
100A
|
200A
|
620×340×235
|
65.7±2
|
||||||||
|
Remark 1 : Battery cycle life >6000(80% DOD, 0.2C/1C)
|
|
|
|
|
|
|
|
|||||||
|
Remark 2 : Other voltage, capacity, current, size can be customized according to requirements.
|
|
|
|
|
|
|
|
|||||||
|
Remark 3: Communication support: CANBUS/RS485 / RS232 / Bluetooth
|
|
|
|
|
|
|
|
|||||||
|
For ez-go , for Yamaha , for Club Car , for Cushman , for Columbia Vehicle Group , for Garia , for GEM , for star EV , for
Tomberlin etc. |
|
|
|
|
|
|
|
|||||||
Common customization
JREPower / JREECOASIS
b
attery voltage capacity customization
We can do batteries:
Voltage: 12v~700v;
Capacity: 20Ah~1000Ah.
Application: Golf cart , Marine, RV, Forklift, Solar system, Special battery.
Voltage: 12v~700v;
Capacity: 20Ah~1000Ah.
Application: Golf cart , Marine, RV, Forklift, Solar system, Special battery.
Golf cart battery
Marine battery
RV battery
Forklift battery
Energy storage battery
Special battery
JREPower / JREECOASIS
BMS deep customization
JREPower has mature experience in BMS development and customization. In addition to the basic functions of BMS such as overcharge protection, overdischarge protection, short circuit protection, and battery balancing, we can customize and develop intelligent monitoring APP/ battery management APP for you.
The monitoring APP can better monitor the battery status for your customers, and the battery management APP can help you adjust the battery pack parameters according to the actual application scenarios of customers and help you establish a professional image.
JREPower / JREECOASIS
Charger customization
Charging is an essential part of the battery use process, Jrepower can customize the charger for you according to your needs, whether it is color matching, AC interface, DC interface, charging current, brand label, etc., can be tailored for your brand.
JREPower / JREECOASIS
Display customization
The customized display can not only monitor the battery status, but also add a USB interface, strengthen the waterproof design, and can also be customized according to your brand characteristics and needs.
Mass production service process
1. Planning
Video conference/teleconference to communicate battery production plan.
2. Plan verification
Email to confirm the details of the plan, battery production quantity, production requirements, delivery time, transportation terms and other information.
3. Procurement of raw materials
After the customer pays the advance payment, the JRE procurement department determines the type, specifications and quantity of raw materials required according to the production plan, negotiates with the supplier and purchases.
4. Production preparation
The JRE account manager makes production schedule and quality inspection specifications based on different product customization requirements, and submits them to the JRE production supervisor and JRE quality inspection engineer.
5. Battery production
The JRE production supervisor shall formulate production instructions according to the requirements of the JRE account manager, and the workers shall carry out production according to the production instructions to ensure that the products meet the quality requirements.
6. Quality control
During the product production process, JRE production line quality inspection engineers supervise the product production process according to the quality inspection specifications and production instructions, and check whether each product detail meets the quality inspection requirements.
7. Progress tracking
The JRE account manager tracks the battery production progress and reports it to the customer.
8. Warehousing of finished products
Warehousing management of qualified products, including identification, storage and other operations, to ensure that products are not damaged or contaminated.
9. Packaging and marking
Packaging the finished product, and according to the requirements of identification, labeling, numbering, etc., to facilitate sales and logistics.
10. Product delivery
After comprehensive inspection of finished products, factory delivery and delivery are arranged according to the transaction requirements agreed on in the order.
11. After-sales service
Provide after-sales service according to the situation, including solving customer problems, tracking product use, etc.
