Quick Details
-
Capacity:
-
500 kg
-
Product warranty:
-
1 year
-
Dimension:
-
734L*854W*1680H mm
-
Loaded in 1*40'HQ:
-
360 sets
-
Surface treatment:
-
Hot dip/galvanized/zinc/spay paint
-
Feature:
-
Collapsible/nestable/rust-free
-
Usage:
-
Material Handling
-
Use:
-
Supermarket/Logistics/transport
-
Material:
-
Mild Steel Q235
-
Available accessories:
-
Castors, wire shelf, bag, etc
-
Color:
-
Customized Color
Quick Details
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
HML
-
Model Number:
-
HML-BY08
-
Capacity:
-
500 kg
-
Product warranty:
-
1 year
-
Dimension:
-
734L*854W*1680H mm
-
Loaded in 1*40'HQ:
-
360 sets
-
Surface treatment:
-
Hot dip/galvanized/zinc/spay paint
-
Feature:
-
Collapsible/nestable/rust-free
-
Usage:
-
Material Handling
-
Use:
-
Supermarket/Logistics/transport
-
Material:
-
Mild Steel Q235
-
Available accessories:
-
Castors, wire shelf, bag, etc
-
Color:
-
Customized Color
Europe warehouse supermarket logistic nesting A frame transport collapsible roll container with wheels
Three-sided nesting “A” frame. Ideally suited for internal transport of goods with or without pallet trucks
Specification of roll container
| Similar Design | |||||
| Model No. | Exterior Dimension |
Tube Diameter |
Wire Diameter |
Loading Capacity |
Loaded in 1x40'HQ |
| LxWxH(mm) | mm | mm | kg | sets | |
| HML-BY07 | 720x810x1650 | Φ20x2 | Φ8&Φ 6 | 600 | 450 |
| HML-BY08 | 734x854x1680 | Φ19x2 | Φ10&Φ 6 | 600 | 320 |
| HML-BY09 | 734x854x1680 | Φ19x2 | Φ10&Φ 6 | 600 | 320 |
| HML-BY10 | 734x854x1680 | Φ19x2 | Φ3 | 600 | 320 |
| Material | Mild steel Q235 | ||||
| Available design |
1. Optional extra
gates
, removable
shelf
(each with 60kg to 80kg loading capacity) and
top lid
2. Optional base - square, "A","Z" type design 3. Possible to add nameplates for identification |
||||
| Application area | Warehouse, logistics, supermarket, etc. | ||||
| Finish | Zinc/powder coating | ||||
| Remark | Customized or OEM support | ||||
| Product Features |
1.
Steel frame
with wire mesh in-fill
2. 2 fixed and 2 swivel casters with or without brakes 3. Castor's material options include nylon, pp as well as rubber |
||||

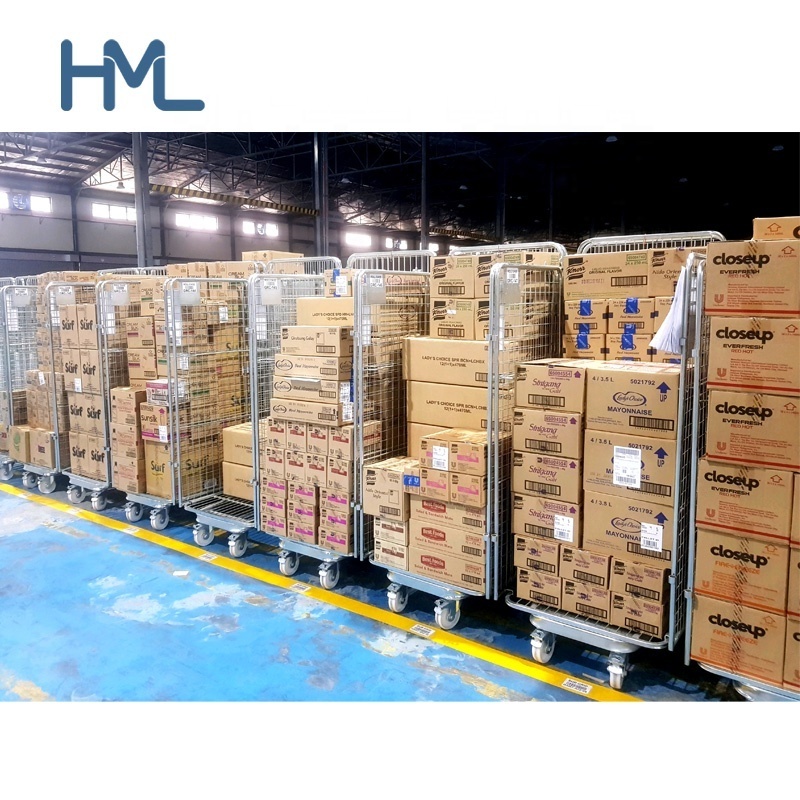

Application of roll container
(can be used for logistic transport, supermarket, warehouse, laundry, etc.)
Wire mesh roll cage and wheels are packed separately
1, What is the material being used for your products?
---Mild steel Q235, Q195
2, How is the goods being packed?
---Plastic banding + Stretch film wrapped, palletized for easy loading and unloading with standard
forklift truck or pallet jack.
3, What is the payment terms I can get?
---TT or L/C at sight, DP etc
4, What kind of finish do you provide for your goods?
---A.Electro-galvanized/Zinc plated: the zinc serves as a sacrificial anode( indoor storage)
B.Hot dip galvanized: it forms a coating of corrosion-resistant zinc
(indoor/outdoor and cold storage)
C.Powder coating: a type of coating that is applied as a free-flowing, dry powder
(indoor/outdoor storage)
5, What is the loading capacity?
---In general, we have light duty(100~300kg) model, medium-duty(400~800kg) model
and heavy-duty(1000~1700kg) model available for your choice.
6 Which product can be used in cold storage?
---Mobile rack, wire container, and roll cage are all widely used in cold storage.
7 I like your design, but couldn‘t find the right model from the products list, is custom size available?
---Yes, we do custom products and projects.
8 I would like to have my own design products and qty is not that big, is it ok?
---Yes, we can go with your custom design, no matter small or big qty, however, pls understand
the cost will be different.
9 I don't have a drawing or picture available for the custom products, could you design it
for me?
--Yes, we can make the best suitable design for you but do need to know the details, such as
a) dimension b) loading capacity c)stackability d)operation environment
10 What is the minimum quantity I can order?
--1x20'GP - quantity is variable depending on the size
11 What is your average production lead time?
--3-4 weeks against formal order and deposit.
12 Do I get any guarantee from your company?
-3~10 years warranty in the case that
A) Proper handling during operation, correctly forklift handling while stacking/unstacking
B) Overloading is prohibited
C) Environment request indoor, dry and not humid circumstance, do not contact with any corrosive chemical material (for zinc plated and powder coated products, no limitation for hot-dip galvanized)
