Automatic Swing Gate Opener With Circuit Board Remote Control Motorized Locks Dc Motor 400kg*2

Automatic Swing Gate Opener With Circuit Board Remote Control Motorized Locks Dc Motor 400kg*2

FOB Reference Price: Get Latest Price

≥1 Sets

US $300

≥30 Sets

US $295

≥90 Sets

US $280

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Application:: Villa

Place of Origin:: Guangdong, China

Brand Name:: chisung

Model Number:: CSSGO-09

Product Name:: Swing Automatic Gate Opener Kit

Keyword:: Gate Opeartor,Auto House Door Opener,Gate Opener Swing

Material:: Die Casting Aluminum Alloy

Function:: Smart Home Automation

Power supply:: AC220V±10V 50HZ,AC110V±10V, 60Hz

Max. Gate Weight:: 500kg/ per gate leaf

Feature:: Easy Installation

Remote Control:: 433.92MHz

Packing:: Carton

Type:: Gate Operators Home Automation

Quick Details

Warranty:: 1 Year

After-sale Service:: Online technical support

Project Solution Capability:: NONE

Application:: Villa

Place of Origin:: Guangdong, China

Brand Name:: chisung

Model Number:: CSSGO-09

Product Name:: Swing Automatic Gate Opener Kit

Keyword:: Gate Opeartor,Auto House Door Opener,Gate Opener Swing

Material:: Die Casting Aluminum Alloy

Function:: Smart Home Automation

Power supply:: AC220V±10V 50HZ,AC110V±10V, 60Hz

Max. Gate Weight:: 500kg/ per gate leaf

Feature:: Easy Installation

Remote Control:: 433.92MHz

Packing:: Carton

Type:: Gate Operators Home Automation

Product Description

Model	CSSGO-09
Power Supply	AC220V±10V 50/60HZ,AC110V±10V, 60Hz
Electric motor	AC220/110V
Current	1.5A
Absorbeb power of motor	320w
Max each leaf length	2.5m
Max each gate weight	500kg
Motor speed	1.6cm/s
Rotational speed	1450RPM/min
Thrust	3000N
Running time protection	Adjustable
Rod's max travel	400mm
Auto closing delay time	programmable (from 0 to 99 seconds)
Gate move speed	12S/90degrees
Operating Temperature	-20°C~+70°C
Relative Humidity	≤95%, No Condensation
Protection class	IP45
Application	home automation
limit switch	with limit switch
condenser	8μF
Door opening angle	90°,100°,110°,120°

Product Display

09 Features

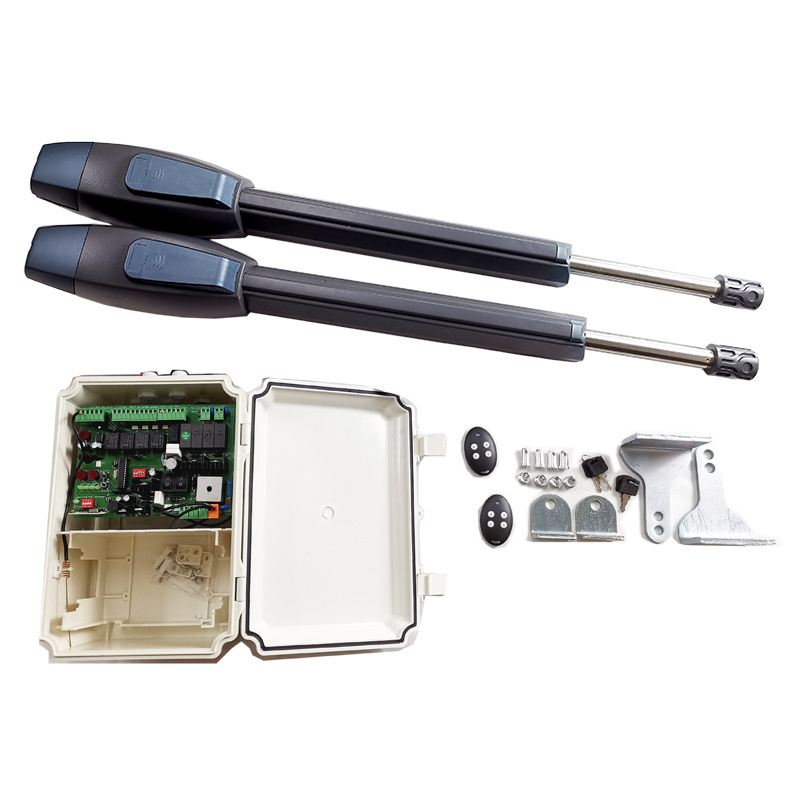

DC 24V motor with limit,IP45,Max.gate weight:400kg,Max.leaf length:2.5m,400mm stroke,with back-up battery interface,solar
panel&battery interface,two motors,two remote controls,one circuit board,transformer

Feature

. 1.Automation for gates leaves up to 2.5m 400KG;

2.09 is particularly intended for residential applications;

3.The shape is beautiful and graceful and it’s dimensions allow it to be installed in areas where limited space is available;

4.The actuator is self-locking and can be unlocked easily in case of electrical blackout by means of the supplied unlocking key. Moreover, the 24V version can be operated even in absence of electricity by means of the optional backup battery unit;

5.Thanks to the sturdiness of materials used during production, 09 is almost free to maintain and designed to last long.

Factory Photos
