Simple operation, easy for non-professionals to use. With automatic synchronization function, automatic parameter calculation function, a collection of multiple parameters, one-key setting, etc., without excessive manual intervention. Fool-like operation saves a lot of worries.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220v,380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TS05
-
Dimension(L*W*H):
-
1800*1097*1472mm
-
Weight:
-
140 KG
-
Machinery Capacity:
-
0-80 pcs/min
-
Warranty of core components:
-
2Year
-
Product name:
-

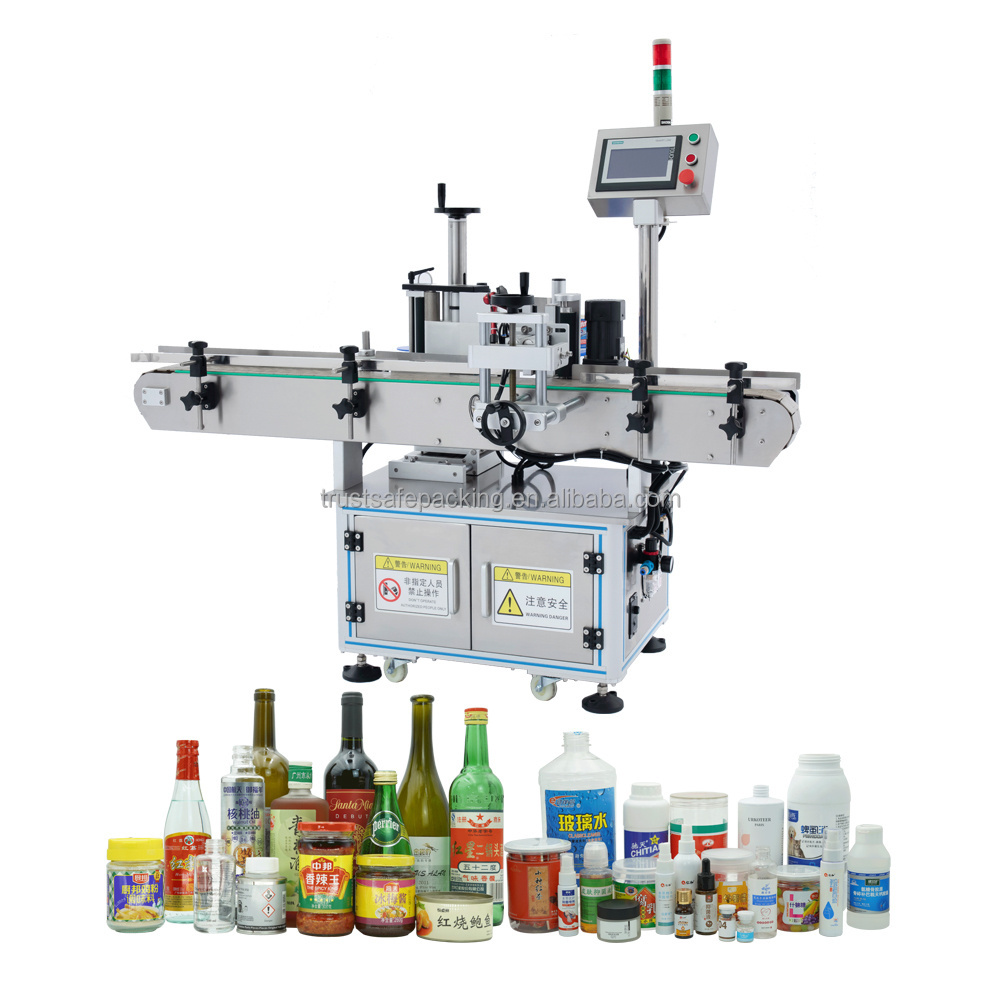

Automatic table top round bottle labeler
-
Model:
-
TS05
-
Output:
-
0-80 pcs/min(depends on size of label and product)
-
Suitable range of label size:
-
W:10-150mm L:unlimited
-
Suitable range of product size:
-
Diameter:25-140mm(can be enlarged on demand)
-
Power:
-
1300W
-
Width of conveyor:
-
114mm
Quick Details
-
Application:
-
Food, Beverage, Commodity, Machinery & Hardware
-
Packaging Type:
-
Bottles
-
Packaging Material:
-
Plastic, Paper, Metal, Glass
-
Voltage:
-
220v,380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TS05
-
Dimension(L*W*H):
-
1800*1097*1472mm
-
Weight:
-
140 KG
-
Machinery Capacity:
-
0-80 pcs/min
-
Warranty of core components:
-
2Year
-
Product name:
-
Automatic table top round bottle labeler
-
Model:
-
TS05
-
Output:
-
0-80 pcs/min(depends on size of label and product)
-
Suitable range of label size:
-
W:10-150mm L:unlimited
-
Suitable range of product size:
-
Diameter:25-140mm(can be enlarged on demand)
-
Power:
-
1300W
-
Width of conveyor:
-
114mm
Product Technical Information
|
Parameter
|
|
|
|
Model
|
TS05
|
|
|
Output
|
0-60 pcs/min(depends on size of label and product)
|
|
|
Accuracy
|
±1mm
|
|
|
Suitable range of label size
|
W:10-150mm L:unlimited
|
|
|
Suitable range of product size
|
Diameter25-140mm(can be enlarged on demand)
|
|
|
Voltage
|
220V/110V 50HZ/60HZ
|
|
|
Power
|
1300W
|
|
|
Width of conveyor
|
114mm
|
|
|
Suitable size of label roll
|
Inner size:76mm Outer size:300mm
|
|
|
Air pressure
|
0.4-0.6Mpa
|
|
|
Weight (net/gross)
|
140kg/230kg
|
|
|
Dimension
|
1800*1097*1472mm/1945*990*1510mm
|
|
|
Warranty
|
2 years
|
|
|
Configuration
|
|
|
|
Label detect sensor
|
Leuze, Germany
|
|
|
Product detect sensor
|
Leuze, Germany
|
|
|
PLC
|
Panasonic Japan
|
|
|
Inverter
|
Siemens Germany
|
|
|
Touch screen
|
Shenzhen Kinco 7-inch touch screen
|
|
|
Leakage switch
|
Schneider France
|
|
|
24V switching power supply
|
Taiwan Mingwei
|
|
|
70V switching power supply
|
Taiwan Mingwei
|
|
|
Positioning cylinder
|
Airtac
|
|
|
Solenoid valve
|
Airtac
|
|
|
Air source processor
|
Airtac
|
|
|
Speed control valve
|
Airtac
|
|
|
Hand slide valve
|
Airtac
|
|
|
Delivery label motor and driver
|
JMC (Jiemei Kang) hybrid closed-loop stepper motor and driver
|
|
|
Separating wheel motor
|
Obon micro motor and reducer
|
|
|
Conveyor belt motor
|
Obon micro motor and reducer
|
|
|
Roller motor
|
Obon micro motor and reducer
|
|
Product advantages
Smart operation
Easy adjustment
The components of each adjustment position are precisely matched, and the height, width, and width of the components can be easily adjusted without professional tools and fingers, which is simple and concise.
Ingenious design and careful construction
The shape is elegant with ingenuity, and the quality is superior to Seiko; this machine is guided by practicability, innovation, economy, and aesthetics, and is designed with big data analysis; it is carefully crafted with top materials and components in the industry.
Machine construction details
Every part is designed with intimate rounded corners, which is the warm care of the design engineer for the operator.
Structural parts are selected from magnesium aluminum alloy and 304 stainless steel, and are precisely processed by our own CNC machining center.
One of the secrets of the machine's speed and stability
Gold steel sand label feeding wheel, high-speed, accurate and no glue residue, no slipping, no wear and tear
Self-guided positive pressure marking roller, self-adaptive compaction when sending the label, without deviation.
The second secret of the fast and stable machine
Streamlined labeling path, small resistance to label feeding; smoother operation and higher speed.
Customized acceptable
High resolution inkjet printer
Add the function of printing production date, shelf life, batch number, barcode, QR code and other functions on the label. You can set the text font, size, thickness.
Ribbon coding machine
Add the function of printing production date, shelf life, batch number, etc. on the label. The characters are fixed-size copper characters. Change the coding content by changing the characters.
Automatic bottle unscrambler
Increase the bottle unscrambling function, the bottle unscrambler transfers the manually placed products to the conveyor belt of the labeling machine through the rotating mechanism, which reduces the labor intensity of manual product loading, and can more than double the efficiency of manual loading directly to the conveyor belt.
Ultrasonic sensor
Added the function of detecting transparent labels. Conventional sensors detect changes in the brightness of labels. Transparent labels do not have changes in brightness and need to detect changes in their thickness.
