Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
JS
-
Model Number:
-
JS-PoleAnchor020
-
Diameter:
-
48-114mm, 48-114mm
-
Product name:
-
Screw Ground Anchor
-
Surface treatment:
-
DIN EN ISO 1461-1999
-
Certificate:
-
ISO9001:2008
-
Packing:
-
Carton Box + pallet
-
Length:
-
550-4000mm
-
Pipe thickness:
-
2.5-4.0 mm
-
Surface:
-
Hot Dip Galvznized
Quick Details
-
System of Measurement:
-
INCH
-
Material:
-
Steel
-
Capacity:
-
Strong
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
JS
-
Model Number:
-
JS-PoleAnchor020
-
Diameter:
-
48-114mm, 48-114mm
-
Product name:
-
Screw Ground Anchor
-
Surface treatment:
-
DIN EN ISO 1461-1999
-
Certificate:
-
ISO9001:2008
-
Packing:
-
Carton Box + pallet
-
Length:
-
550-4000mm
-
Pipe thickness:
-
2.5-4.0 mm
-
Surface:
-
Hot Dip Galvznized
ASTM Helical Piles, Helix Anchors, Ground Screw in Foundation
1. Other Name :
Pole Anchor Pointed/ Adjustable pole anchor/ post anchor/ post support/ screw pole anchor/ screw ground anchor/ Ground screw anchor/ Metal Post Spike/ Drive-In Post Spike/ Earth Anchor/ pole ground plate/ fence post metal anchors/ concrete post anchor
2. Usual type Specification:
|
Length |
Usual type: 1600 /1800 /2000mm ( 550mm-4000mm ) |
|
Outer Diameter |
48 /60 /68 /76 / 89 /114 mm |
|
Pipe thickness |
2.5 / 3.0 / 3.5 / 3.75 / 4.0 mm |
|
Depth |
500~30 00mm |
|
Material |
Q235 ISO630 Fe A / DIN EN10025Fe 360 B |
|
Surface Treatment |
Hot dip galvanized to DIN EN ISO 1461-1999. |
|
Top Design: |
Bolt, flange ( or 3*M16), U type plate |
|
Screw spacing |
40 / 60 mm |
|
Packing |
on steel pallet ,in carton or as your request |
3. ASTM Helical Piles, Helix Anchors, Ground Screw Advantage:
It is save time, save power, save money, and more environmental than Concrete Foundation method.

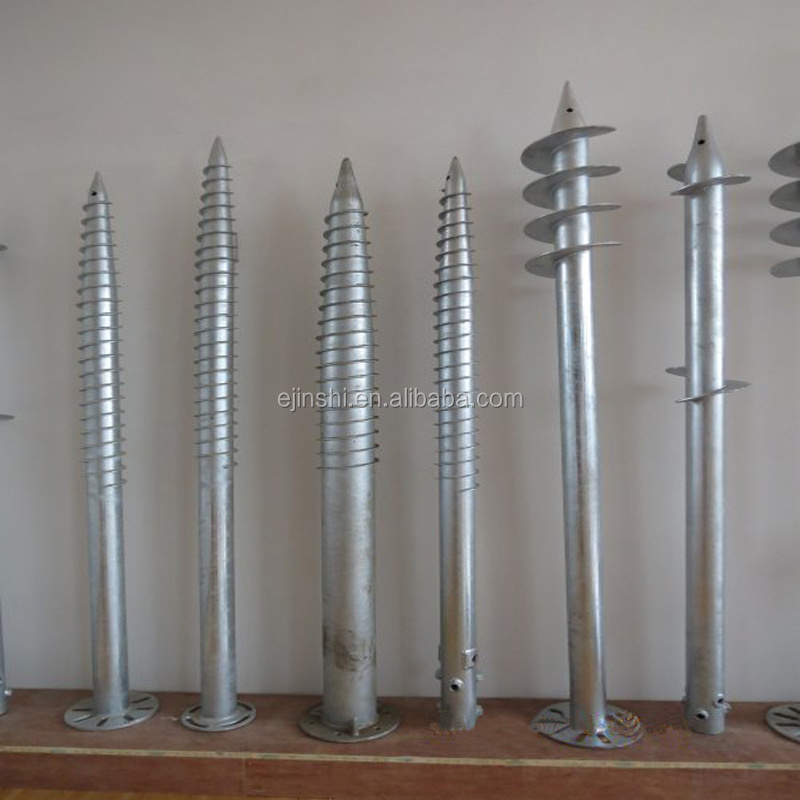

4. ASM Helical Piles, Helix Anchors, Ground Screw show:
5. ASTM Helical Piles, Helix Anchors, Ground Screw Application:
|
1. Timber Construction |
2. Solar Power Systems |
|
3. City and Parks |
4. Fencing Systems |
|
5. Road and Traffic |
6. Sheds and Containers |
|
7. Flag Poles and Marks |
8. Garden and Leisure |
|
9. Boards and Banners |
10. Shaky board room |
Packaging details: ASTM Helical Piles, Helix Anchors, Ground Screw : by steel pallet with PVC firm, by carton, or as the your requirement.
Delivery details: Usually about 15days after your deposit
