Quick Details
-
Function:
-
Charging
-
Brand Name:
-
Shengyoude
-
Model Number:
-
QX1200
-
Input voltage and current:
-
180V-240V
-
output voltage and current:
-
12V/25A 24V/20A 48V/20A 60V/20A 72V/18A
-
Maximum Output Power:
-
1200W
-
Place of Origin:
-
Zhengzhou,China
-
Product name:
-
1200W Battery Charger
-
Power:
-
1200w
-
Warranty:
-
24 Months
-
Efficiency:
-
≥ 93% ( full loading )
-
Net weight:
-
4.5kg
-
Color:
-
Black+Sliver
-
Input:
-
100-240V
-
OEM/ODM:
-
Provide
-
MOQ:
-
1pc
Quick Details
-
Type:
-
Electric, Power Supply Adapter
-
Port:
-
DC, AC
-
Material:
-
Aluminium
-
Function:
-
Charging
-
Brand Name:
-
Shengyoude
-
Model Number:
-
QX1200
-
Input voltage and current:
-
180V-240V
-
output voltage and current:
-
12V/25A 24V/20A 48V/20A 60V/20A 72V/18A
-
Maximum Output Power:
-
1200W
-
Place of Origin:
-
Zhengzhou,China
-
Product name:
-
1200W Battery Charger
-
Power:
-
1200w
-
Warranty:
-
24 Months
-
Efficiency:
-
≥ 93% ( full loading )
-
Net weight:
-
4.5kg
-
Color:
-
Black+Sliver
-
Input:
-
100-240V
-
OEM/ODM:
-
Provide
-
MOQ:
-
1pc
High Power Waterproof 84V 72V 18A Lithium Battery Charger for Electric Car Vehicle Scooter Bicycle Charger
Products Description

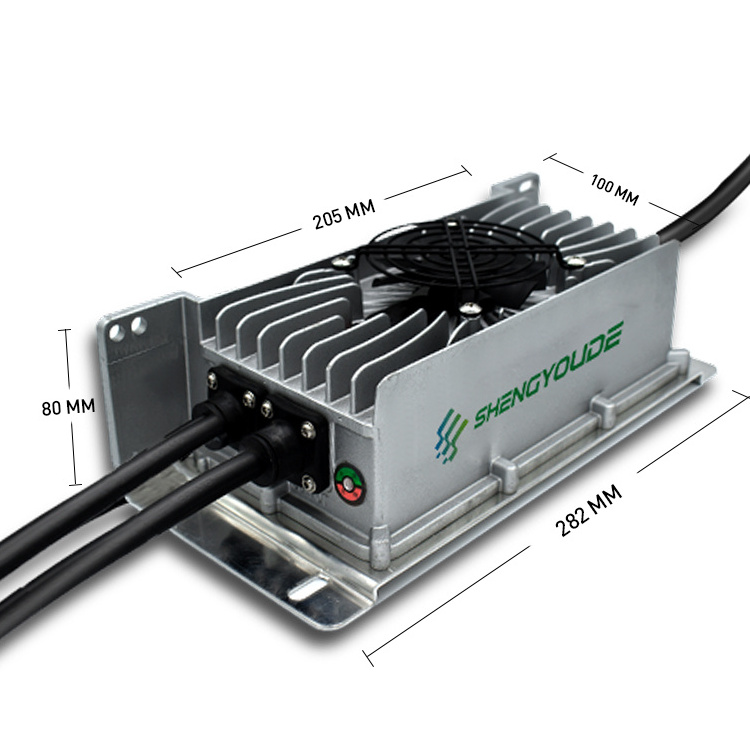

Net Weight: 4.5kg
Housing: Black or sliver aluminium case
Input Voltage : AC 100-240V, 50 HZ / 60HZ
Efficiency : ≥ 93% ( full loading )
Application : 12v 24v 36v 48v 60v 72v 96v battery charger
Certification: CE,ROHS
Protection: Short circuit protection, timing protection, temperature protection and overshoot protection
Warranty: 2 years
Housing: Black or sliver aluminium case
Input Voltage : AC 100-240V, 50 HZ / 60HZ
Efficiency : ≥ 93% ( full loading )
Application : 12v 24v 36v 48v 60v 72v 96v battery charger
Certification: CE,ROHS
Protection: Short circuit protection, timing protection, temperature protection and overshoot protection
Warranty: 2 years
|
QX1200 Battery Charger Parameter
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Input voltage: 100VAC~240VAC 50HZ/60HZ
|
CV
|
|
|
CC
|
Transition /
Cut-off Current
|
|
Net Weight
|
Size
|
Package
|
|||||||||
|
Input voltage
|
Lead Acid
|
Li-MnO2
|
LiFePO4
|
A
|
Lead Acid (A)
|
Li(A)
|
kg
|
mm
|
pcs/ctn
|
|||||||||
|
12V
|
14.7V
|
16.8V
|
14.6V
|
68A
|
10.2A
|
6.8A
|
4.5
|
281*128*80
|
6
pcs/ctn
|
|||||||||
|
24V
|
29.4V
|
33.6V
|
29.2V
|
34A
|
5.1A
|
3.4A
|
|
|
|
|||||||||
|
48V
|
58.8V
|
54.6V
|
58.4V
|
15A
|
2.25A
|
1.5A
|
|
|
|
|||||||||
|
60V
|
73.5V
|
71.4V
|
73V
|
15A
|
2.25A
|
1.5A
|
|
|
|
|||||||||
|
72V
|
88.2V
|
84V
|
87.6V
|
12A
|
1.8A
|
1.2A
|
|
|
|
|||||||||
|
Note: Cut-off point for Li battery is 5% of CC, and it can be setted between 3-10%.
|
|
|
|
|
|
|
|
|
|
|||||||||
Input&Output Plug
Input Plug from A to N, Output Plug from 1 to 14, choose according to your demand.
If you have any special requirement, please contact us!
Product advantages
1, Factory wholesale price , more then 10 years factory production experience in battery charger industry.
2,All products passed CE & ROHS certification
3,High efficiency ≥ 93% , high performance , stable and durable
4,Multiple protection functions:Short circuit protection, timing protection, temperature protection and overshoot protection
5,Automatic smart portable battery charger , easy to use and convenience to carry
6,Our warranty period is for 2 years
7,Our smart charger can restore battery capacity and prolong battery life
8,Intelligent six stage charging process: constant voltage charging, constant current charging, fast charging, pulse charging,balanced charging and constant voltage current limiting charging
9,Function overview: intelligent charging, express charging, pulse maintenance, balanced charging and temperature compensation
2,All products passed CE & ROHS certification
3,High efficiency ≥ 93% , high performance , stable and durable
4,Multiple protection functions:Short circuit protection, timing protection, temperature protection and overshoot protection
5,Automatic smart portable battery charger , easy to use and convenience to carry
6,Our warranty period is for 2 years
7,Our smart charger can restore battery capacity and prolong battery life
8,Intelligent six stage charging process: constant voltage charging, constant current charging, fast charging, pulse charging,balanced charging and constant voltage current limiting charging
9,Function overview: intelligent charging, express charging, pulse maintenance, balanced charging and temperature compensation
Applications
It charge those power batteries for Golf carts,sightseeing vehicles,electric forklifts,patrol cars,floor scrubbers,electronic
tricycles,e-boats,mini EV,industial vehicles, balance scooter, electric mower,aerial work platform floor,motorcycles,etc.
