Quick Details
-
Voltage:
-
220V
-
Power:
-
2.2kw
-
Dimension(L*W*H):
-
650*450*800
-
Weight:
-
30 kg
-
Warranty:
-
One Year
-
Name:
-
hammer mill parts mini hammer mill pto small hammer mill
-
Application:
-
Grain Feed
-
Capacity:
-
300-500kg/h
-
Usage:
-
Raw Material Grinding
-
Raw material:
-
Rice Husk, grain , feed etc.
-
Function:
-
Raw Material crushing
-
Material:
-
carbon steel, common steel
-
Motor:
-
Chinese Brand copper motor
-
Color:
-
green Or blue
-
Structure:
-
hammer mill
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
BAT
-
Model Number:
-
9FZ-300
-
Voltage:
-
220V
-
Power:
-
2.2kw
-
Dimension(L*W*H):
-
650*450*800
-
Weight:
-
30 kg
-
Warranty:
-
One Year
-
Name:
-
hammer mill parts mini hammer mill pto small hammer mill
-
Application:
-
Grain Feed
-
Capacity:
-
300-500kg/h
-
Usage:
-
Raw Material Grinding
-
Raw material:
-
Rice Husk, grain , feed etc.
-
Function:
-
Raw Material crushing
-
Material:
-
carbon steel, common steel
-
Motor:
-
Chinese Brand copper motor
-
Color:
-
green Or blue
-
Structure:
-
hammer mill
| Machine for hammer mill parts mini hammer mill pto small hammer mill |
We have 2 kinds of crusher/grinder machine with many different models, claw type & hammer type.
9FZ series grinder/crusher , suitable for different kinds of seasoning , corn, grain, etc. particles .
Can also be used for sweet potatoes, potatoes and other lumps, and dry straw stalk grinding. It is suitable for chemical factory, medicine factory, gourmet powder factory, feed factory, gypsum factory, metal calcium factory, paper mill, bean berth factory, distillery etc. industry.
The features : high capacity , energy saving, working stable, safe and reliable, easy for moving etc.
|
Model |
9FZ-160 |
9FZ-200 |
9FZ-250 |
9FZ-280 |
9FZ-300 |
9FZ-320 |
9FZ-350 |
|
Power |
1.1kw 220V |
2.2kw 220V |
2.2kw 220v |
2.2kw 220v |
5.5kw 380V |
5.5-7.5kw 380v |
7.5-11KW 380V |
|
Shaft speed |
6000rpm |
4200rpm |
4200rpm |
4200rpm |
4000rpm |
4600rpm |
4200-4600RPM |
|
Rotor diameter |
160mm |
200mm |
250mm |
280mm |
300mm |
320mm |
350mm |
|
Motor speed |
2800rpm |
2800rpm |
2800rpm |
2800rpm |
1400rpm |
1400rpm |
1400rpm |
|
Weight with motor |
25kg |
30kg |
35kg |
45kg |
95kg |
105kg |
120kg |
|
Size |
430*600*650 |
650*450*800 |
700*450*850 |
500x500x980 |
480x550x1100 |
550*480*1150 |
870x660x1020 |
9FQ series hammer mill/animal feed crusher used to crush fresh/dry sweet potato, straw, husk, wheat, corn, beans and other grains. The main features of hummer mill are all up to national standard, with its simple structure, easy operation, high efficiency, low noise, and stainless steel structure. It is quite popular in China and all around the world.
When hammer mill/animal feed crusher work, the raw materials will be feed to crushing room through the feeder, under the impact/crash of high speed rotating hammers, the raw materials will be crushed rapidly, then go through the screen and be sucked to the outlet. The size of screen can be customized as requirements
|
Model |
9FQ-360 |
9FQ-400 |
9FQ-420 |
9FQ-500 |
|
|
Rotor Diameter(mm) |
360 |
400 |
420 |
500 |
|
|
Power |
Motor |
5.5-7.5KW |
7.5-11 |
11 |
22-30 |
|
Diesel Engine |
10HP |
15HP |
16HP |
35-40HP |
|
|
Main Shaft Speed(r/min) |
4600 |
4000 |
3200 |
3400 |
|
|
Crushing Room Width(mm) |
202 |
202 |
280 |
400 |
|
|
Hammer Quantity |
12 |
12 |
16 |
24 |
|
|
Screen Size(mm) |
0.5-5 |
1.2-8 |
1.2-20 |
1.2-30 |
|
|
Weight without motor(kg) |
100 |
120 |
170 |
300 |
|
|
Dimension(mm) |
850*630*800 |
837*780*828 |
730*650*920 |
1150*1200*1090 |
|
|
Capacity(kg/h) |
500-650 |
800-900 |
1000-1200 |
2000-2500 |
|

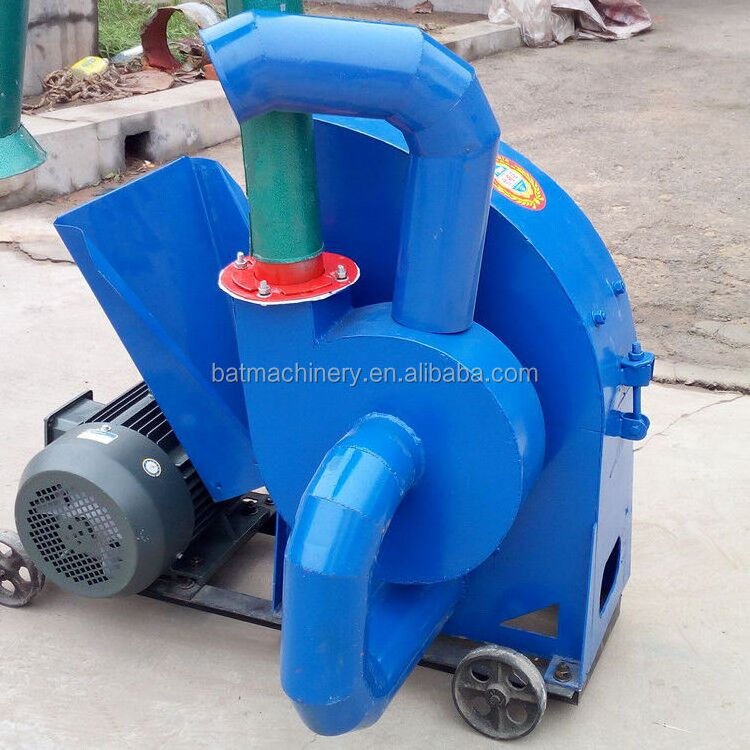

| 9FQ Hammer mill |
| 9FQ Hammer mill with cyclone |
\\
| 9FZ Claw crusher/mill |
| Spare parts of hammer mill parts mini hammer mill pto small hammer mill |
| Structure of hammer mill parts mini hammer mill pto small hammer mill |
