Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
MM3D
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MavenLaser
-
Marking Head Brand:
-
Sinogalvo, ZBTK, Sunny, Raylase, Scanlab
-
Weight (KG):
-
70 KG
-
Core Components:
-
Laser source
-
Machine type:
-
Laser Marking Machine
-
Laser wavelength:
-
1064nm
-
Laser source:
-
Raycus JPT IPG Max
-
Laser Power:
-
30W 50W 80W 100W
-
Software:
-
MM3D
-
Working area:
-
110*110mm 150*150mm or 300*300mm
-
Marking Speed:
-
0-7000mm/s
-
Power supply:
-
220V/50HZ
-
Lifespan of laser device:
-
100000hours
-
Certification:
-
ce
Quick Details
-
Working Accuracy:
-
0.01mm
-
Graphic Format Supported:
-
AI, PLT, DXF, Dwg
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
MM3D
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MavenLaser
-
Marking Head Brand:
-
Sinogalvo, ZBTK, Sunny, Raylase, Scanlab
-
Weight (KG):
-
70 KG
-
Core Components:
-
Laser source
-
Machine type:
-
Laser Marking Machine
-
Laser wavelength:
-
1064nm
-
Laser source:
-
Raycus JPT IPG Max
-
Laser Power:
-
30W 50W 80W 100W
-
Software:
-
MM3D
-
Working area:
-
110*110mm 150*150mm or 300*300mm
-
Marking Speed:
-
0-7000mm/s
-
Power supply:
-
220V/50HZ
-
Lifespan of laser device:
-
100000hours
-
Certification:
-
ce

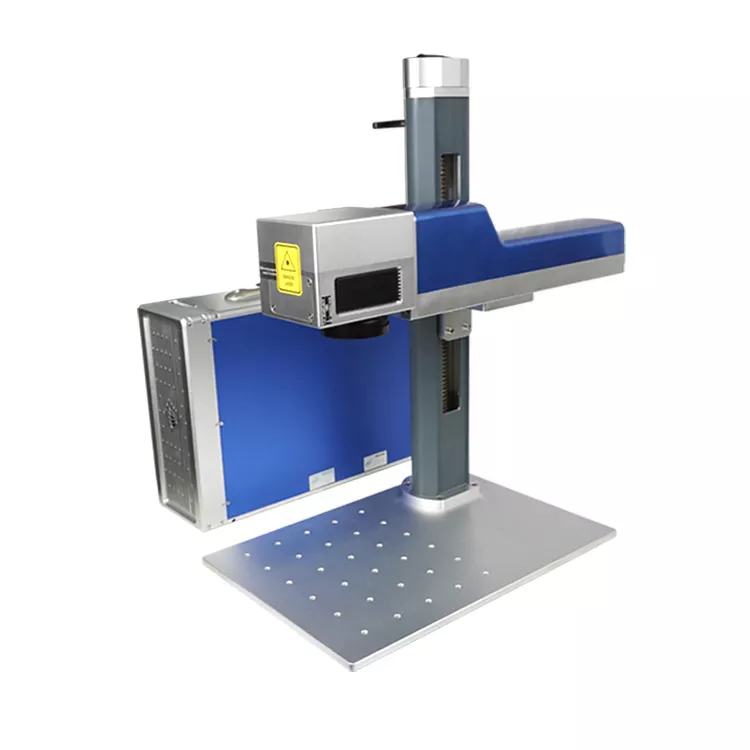

30 50 100 Watt Jpt Mopa 3D Fiber Portable Mini Metal Laser Engraving Machine Price For Metal
| Product Name | Portable 3D Fiber Laser Marking Machine |
| Laser Power |
30W 50W 100W |
| Laser Wavelength | 1064nm |
| Laser Source Brand | Raycus/ MAX (IPG/ JPT Optional) |
| Laser Marking Area | 110*110mm/ 150*150mm/ 300*300mm |
| Laser Marking Depth | <1.2mm |
| Laser Marking Speed | 2000-15000mm/s |
|
Minimum Line Width |
0.012mm |
|
Minimum Character |
0.15mm |
|
Repeated Perecision |
+/- 0.003mm |
|
Beam Quality |
M 2 <1.5 |
|
Focus Spot Diameter |
<0.01mm |
|
Output Power of Laser |
10%-100% continuously adjustment |
|
Cooling mode |
Air cooling |
|
System Operation Environment |
WinXP/ 7/ 8, 32/64 bits |
|
Temperature of Operation Environment |
15℃-35℃ (59℉-95℉) |
|
Power Input |
<600W |
|
Power Requirement |
90V-240V 50/60HZ |
|
Communication Interface |
USB |
|
Life-span of fiber laser module |
100,000 hrs(11.4yrs) |
|
Optional Device |
T-slot, Rotary device, Jack, Metallic Card , Laser protective goggles |
Q1: I know nothing about this machine, what type of machine should I choose?
We will help you choose the suitable machine and share you our best solution;
You can share us what kind of material you're gonna mark/ engrave on.
Q2: When I got this machine, but I don’t know how to use it. What should I do?
We can send operation video and manual for the machine. Our engineer will do training online.
If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
Q3: If some problems happen to this machine, what should I do?
We provide a full two-year machine warranty.
Any problems happened under warranty, components will be provided for replacement or repairement free of charge.
If over the warranty, we still provide excellent service.
