Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ZHONGWEI
-
Voltage:
-
380V or as customer requirement
-
Dimension(L*W*H):
-
3300x1300x4950
-
Weight (T):
-
16 T
-
Model Number:
-
YZWK34-002
-
Motor Power (kw):
-
22 kw
-
Marketing Type:
-
Hot Product
-
After-sales Service Provided:
-
Online Support
-
Color:
-
Costomized
-
Advantage:
-
High Efficiceny
-
Brand:
-
ZHONGWEI
Quick Details
-
Machine Type:
-
Double Column Hydraulic Press
-
Slide Stroke (mm):
-
350
-
Return Force (kN):
-
1000 kN
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ZHONGWEI
-
Voltage:
-
380V or as customer requirement
-
Dimension(L*W*H):
-
3300x1300x4950
-
Weight (T):
-
16 T
-
Model Number:
-
YZWK34-002
-
Motor Power (kw):
-
22 kw
-
Marketing Type:
-
Hot Product
-
After-sales Service Provided:
-
Online Support
-
Color:
-
Costomized
-
Advantage:
-
High Efficiceny
-
Brand:
-
ZHONGWEI

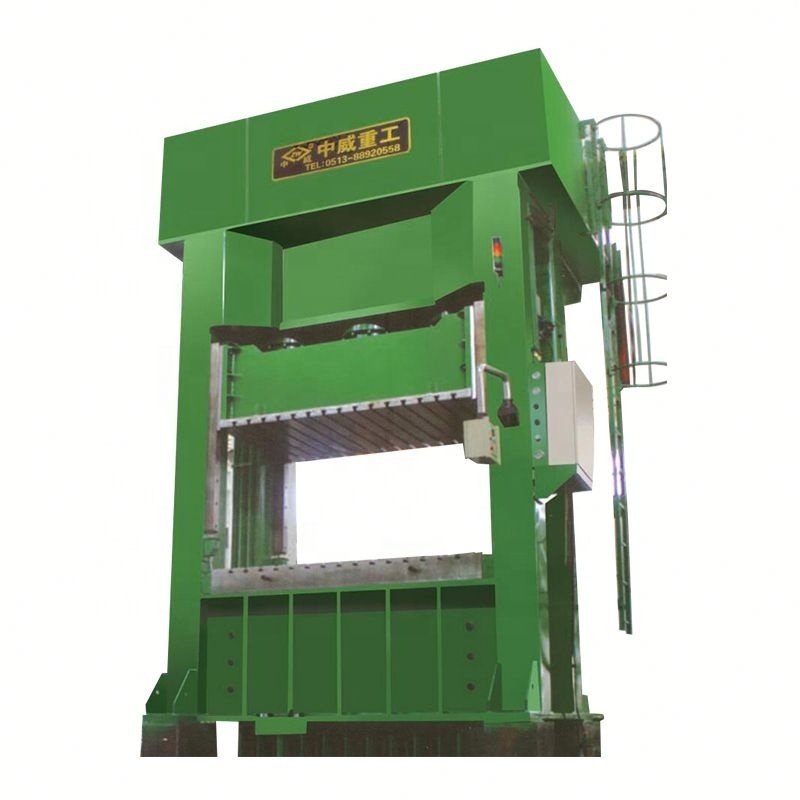

YZWK34-2000T H Frame Hydraulic Press with movable working table for Composite Moulding
Feature:
Application
This machine is widely used in forging industry, for produce stamping parts, stretch steel, cutting, punching and so on.
1. Auto parts, brake pads, fuel tanks, chassis, bumpers;
2. Household appliances: washing machines, rice cookers, televisions, refrigerators, air conditioners and other parts;
3. Kitchen appliances: washing tanks, pots, stainless steel cutlery, and other various containers;
4. Others: tractors, motorcycles, aviation, and aerospace.
Technical Performance
The design is mature, stable, safe and high efficiency, machine has a high market share.
The machine passed the EU CE certification and ISO quality system certification
Manual and semi-automatic operation methods
The working pressure, travel range of slider can be adjusted according to process requirements. Two process modes for choose:
constant pressure process and constant stroke process
The slider has two speeds, fast and slow speed mode , is convenient for the operator to control the workpiece.
Sliders and tables have T –slots, easy for installation of molds.
Four-column guides ensure stable accuracy and easy maintenance .
YZWK34-2000T H Frame Hydraulic Press with movable working table for Composite Moulding
Machine model:
| MODEL |
Nominal
force |
Knock-out
pressure |
Max.hydraulic
pressure |
Slide
Stroke |
Daylight | Effective table | Dimension | Motor | |||
| L-R | F-B | L-R | F-B | Height | |||||||
| KN | KN | MPa | mm | mm | mm | mm | mm | mm | mm | KW | |
| YZWK34-40 | 400 | 120 | 25 | 350 | 500 | 500 | 460 | 1800 | 1200 | 2600 | 4 |
| YZWK34-63 | 630 | 190 | 25 | 400 | 700 | 560 | 500 | 2400 | 1400 | 3100 | 7.5 |
| YZWK34-100A | 1000 | 190 | 25 | 600 | 900 | 720 | 580 | 2500 | 1500 | 3150 | 7.5 |
| YZWK34-100 | 1000 | 110 | 25 | 600 | 900 | 720 | 580 | 2700 | 1700 | 3400 | 11 |
| YZWK34-160C | 1600 | 400 | 25 | 700 | 1000 | 1000 | 800 | 2700 | 1700 | 3400 | 11 |
| YZWK34-200 | 2000 | 400 | 25 | 700 | 1100 | 1000 | 900 | 2825 | 1500 | 3725 | 15 |
| YZWK34-315 | 3150 | 630 | 25 | 800 | 1250 | 1260 | 1200 | 3235 | 1500 | 4295 | 18.5 |
| YZWK34-400 | 4000 | 630 | 25 | 800 | 1250 | 1240 | 1200 | 3235 | 1500 | 4500 | 22 |
| YZWK34-500 | 5000 | 1000 | 25 | 900 | 1500 | 1400 | 1400 | 4060 | 1800 | 4995 | 37 |
| YZWK34-500C | 5000 | 1000 | 25 | 900 | 1500 | 2200 | 1400 | 6500 | 1800 | 4740 | 37 |
| YZWK34-630 | 6300 | 1000 | 25 | 900 | 1500 | 1500 | 1500 | 4200 | 2000 | 5600 | 44 |
| YZWK34-800 | 8000 | 1600 | 25 | 900 | 1600 | 1700 | 1600 | 4800 | 4000 | 6000 | 60 |
| YZWK34-1000 | 10000 | 2000 | 25 | 900 | 1600 | 1800 | 1700 | 5200 | 4300 | 6450 | 60 |
| YZWK34-1250 | 12500 | 2000 | 25 | 900 | 1600 | 2000 | 1800 | 5200 | 4300 | 6450 | 74 |
| YZWK34-1600 | 16000 | 2000 | 25 | 1000 | 1800 | 2400 | 2000 | 6500 | 4500 | 6500 | 90 |
| YZWK34-2000 | 20000 | 2000 | 25 | 1200 | 2000 | 2500 | 2000 | 6500 | 4500 | 6800 | 148 |
| YZWK34-2500 | 25000 | 4000 | 25 | 900 | 1800 | 2500 | 2400 | 6600 | 4500 | 8450 | 148 |
| YZWK34-3000 | 30000 | 4000 | 25 | 1200 | 1800 | 3000 | 2500 | 8000 | 4600 | 10000 | 180 |
| YZWK34-3500 | 35000 | 4000 | 25 | 1200 | 2500 | 3000 | 2500 | 8000 | 3500 | 11000 | 250 |
| YZWK34-4000 | 40000 | 4000 | 25 | 900 | 1500 | 4500 | 2500 | 9500 | 3700 | 7650 | 350 |
| YZWK34-5000 | 50000 | 8000 | 25 | 900 | 1500 | 4500 | 2500 | 10000 | 3700 | 7850 | 450 |
