Quick Details
-
Use:
-
Warehouse Rack
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
URGO
-
Model Number:
-
HWPR-170609
-
Depth:
-
1.5-3.0mm
-
Weight Capacity:
-
500-4000kg/layer
-
Width:
-
According to your requirments
-
Height:
-
According to your requirments
-
Size:
-
Customized according to your needs
-
Structure:
-
Assemble
-
Welding:
-
Weld for automatic welding
-
Color:
-
Customized RAL color
-
Surface finish:
-
Powder coating
-
Packing:
-
Knockdown
-
Product name:
-
Metal Storage Shelf
-
Usage:
-
Warehouse Storage System
-
Surface treatment:
-
Powder Coated
-
Application:
-
Goods Storage
Quick Details
-
Type:
-
Q235B
-
Material:
-
Steel
-
Feature:
-
Suitable for Outdoors
-
Use:
-
Warehouse Rack
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
URGO
-
Model Number:
-
HWPR-170609
-
Depth:
-
1.5-3.0mm
-
Weight Capacity:
-
500-4000kg/layer
-
Width:
-
According to your requirments
-
Height:
-
According to your requirments
-
Size:
-
Customized according to your needs
-
Structure:
-
Assemble
-
Welding:
-
Weld for automatic welding
-
Color:
-
Customized RAL color
-
Surface finish:
-
Powder coating
-
Packing:
-
Knockdown
-
Product name:
-
Metal Storage Shelf
-
Usage:
-
Warehouse Storage System
-
Surface treatment:
-
Powder Coated
-
Application:
-
Goods Storage

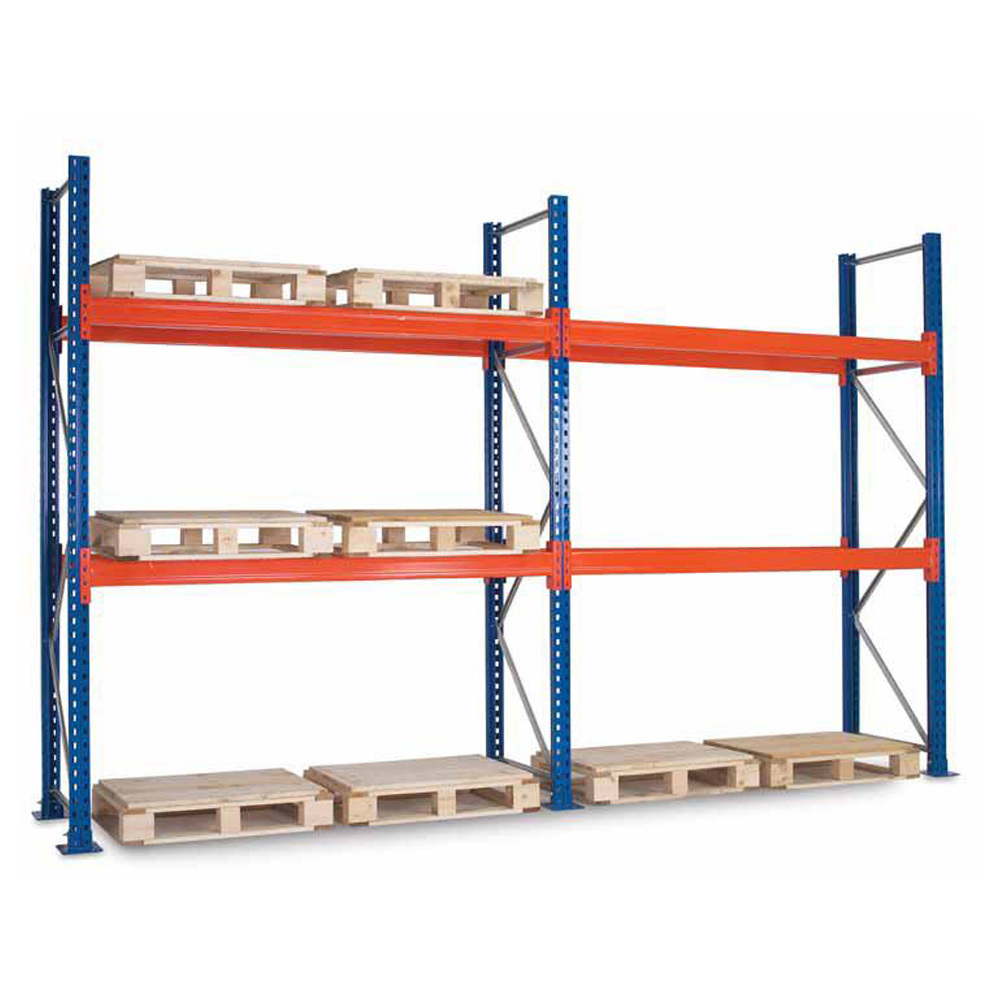

URGO Heavy duty pallet rack is very cost-effective, providing high capacity storage and easy access to all pallets. It offers direct access to all pallets with great load flexibility. It installs quickly and adjusts easily to your specific needs.
At present, our all raw materials are from the large domestic steel corps, stable quality, combined with our own advantages and provide the prefect logistics storage system to the clients. Applications: warehouse & logistics, food/drug distribution, petroleum/chemical plants, automotive distributors, big box retail hardware and home improvement stores.
We according to the different requirements of bearing, in accordance with the column section size can be divided into: type 80, type 85, type 90, type 100, type 120 and type 140.
According to the structure and cross section of the beam height can be divided into:
Rectangular tube beam: 60 / 80 / 100 / 120mm
C shape tube beam:
80 / 100 / 120 / 140mm
Box beam:
80 / 90 / 100 / 110 / 120 / 140 / 160 / 180mm
Corbel box beam:
80 / 90 / 100 / 110 / 120 / 140 / 160mm
P type box Beam:
76.2 / 80 / 101.6 / 110 / 114.3mm
URGO Heavy weight pallet rack features:
1. 100% accessibility to individual pallets;
2. Easy picking lower levels;
3. Good storage density;
4. Easily installed and repositioned;
5. No special lift trucks required;
The Following Related Products Show:
welcome to shop of choose and buy
The structure of URGO heavy duty pallet rack includes uprights and beams, According to the customer's actual pallet load capacity and warehouse size, select the column and beam specifications, as well as increasing racking accessories.
Upright:
1. High load capacity up to 21000kg.
2. Frames include all the elements needed for assembly: bracing, feet and nuts & bolts.
3. Blue epoxy coated (RAL 5012/5015/5017).
4. Standard heights : From 2 to 11.5m.
5. Adjusted by 50/75mm pitch.
Column Profiles:
| Column Specification (mm) | Thickness (mm) | Upright Loading (kg) |
| W80 x D60 | 1.8-2.0 | 4000-6000 KG |
| W85 x D67 | 1.8-2.3 | 7500-12500 KG |
| W90 x D60 | 1.8-2.5 | 8000-10000 KG |
| W90 x D70 | 1.8-2.5 | 10000-12000 KG |
| W100 x D70 | 2.0-2.5 | 11000-14000 KG |
| W120 x D95 | 2.3-3.0 | 17000-21000KG |
Beam:
1. High load capacity up to 5000kg.
2 .Manufactured with the highest quality steel Q235.
3. Orange epoxy coated (RAL 2004).
4. Lengths available: 1500/2000/2300/2700/3000/3300/3600/3900mm
5. Boltless connection with 3/ 4/ 5 connector hooks.
6. A security pins per beam to prevent accidental dislodgement.
7. Powder coating finish
Beam Profiles:
|
Load ing (kg) Spe cification (mm) |
The Length of Box Beam (mm) | ||||||||
| 1500 | 2000 | 2300 | 2500 | 2700 | 3000 | 3300 | 3600 | 3900 | |
| 80 x 50 x 1.5 | 3000 | 1740 | 1340 | 1160 | 1010 | ||||
| 90 x 50 x 1.5 | 4080 | 2350 | 1800 | 1645 | 1345 | 1010 | 850 | ||
| 100 x 50 1.5 | 2960 | 2260 | 1930 | 1680 | 1380 | 1040 | |||
| 110 x 50 x 1.5 | 2640 | 2250 | 1950 | 1600 | 1340 | 1140 | |||
| 120 x 50 x 1.5 | 3200 | 2730 | 2358 | 1930 | 1518 | 1379 | |||
| 140 x 50 x 1.5 | 3868 | 3330 | 2720 | 2370 | 2020 | ||||
| 160 x 50 x 1.5 | 4220 | 3690 | 2970 | 2600 | 2340 | ||||
| 160 x 50 x 1.8 | 4400 | 3420 | 3020 |
2590 |
|||||
| 160 x 50 x 2.0 | 4130 | 4170 | 3320 |
2840 |
|||||
|
Load ing (kg) Spe cification (mm) |
The Length of P Box Beam (mm) | ||||||||
| 1500 | 2000 | 2300 | 2500 | 2700 | 3000 | 3300 | 3600 | 3900 | |
| 100 x 50 x 1.5 | 4470 | 2512 | 1900 | 1610 | 1380 | 1120 | 920 | ||
| 110 x 50 x 1.5 | 5484 | 3085 | 2332 | 1974 | 1693 | 1371 | 1133 | 952 | |
|
120 x 50 x 1.5
|
3910 | 2957 | 2503 | 2146 | 1738 | 1436 | 1207 | 1030 | |
| 140 x 50 x 1.5 | 5722 | 4330 | 3662 | 3140 | 2543 | 2102 | 1766 | 1505 | |
Main Spare Parts Profiles:
Urgo heavy weight pallet rack conventional accessories include: cross beam, back brake beam, back mesh, side mesh, steel plate, grid plate, wood plate, column protector, guard bar etc.
URGO Packaging and Shipping Are Your Cargo’s Safeguard.
We owns a professional logistics team. First-class packaging technique meets your customized packing plan. Every step of logistics progress is thoroughly under our strictly control. We ensure your order received safely within the agreed duration. On-time delivery is our supreme promise.
