2.width:80mm,90mm,100mm,110mm,120mm, etc.
3.Thickness:10mm,15mm,20mm,25mm etc.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
LCPSF001
-
Type:
-
Water stop
-
Material:
-
Rubber
-
Application:
-
waterproof for concrete joint
-
thickness:
-
10/15/20/25mm
-
DIameter:
-
30/45/60mm
-
Keyword:
-
P gate seal waterstop
-
Advantage:
-
Stable
-
Package:
-
In roll on Pallet
-
MOQ:
-
50m
-
Width:
-
80/100/110/120mm
Quick Details
-
Processing Service:
-
Moulding
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
HSLC
-
Model Number:
-
LCPSF001
-
Type:
-
Water stop
-
Material:
-
Rubber
-
Application:
-
waterproof for concrete joint
-
thickness:
-
10/15/20/25mm
-
DIameter:
-
30/45/60mm
-
Keyword:
-
P gate seal waterstop
-
Advantage:
-
Stable
-
Package:
-
In roll on Pallet
-
MOQ:
-
50m
-
Width:
-
80/100/110/120mm
Product Description

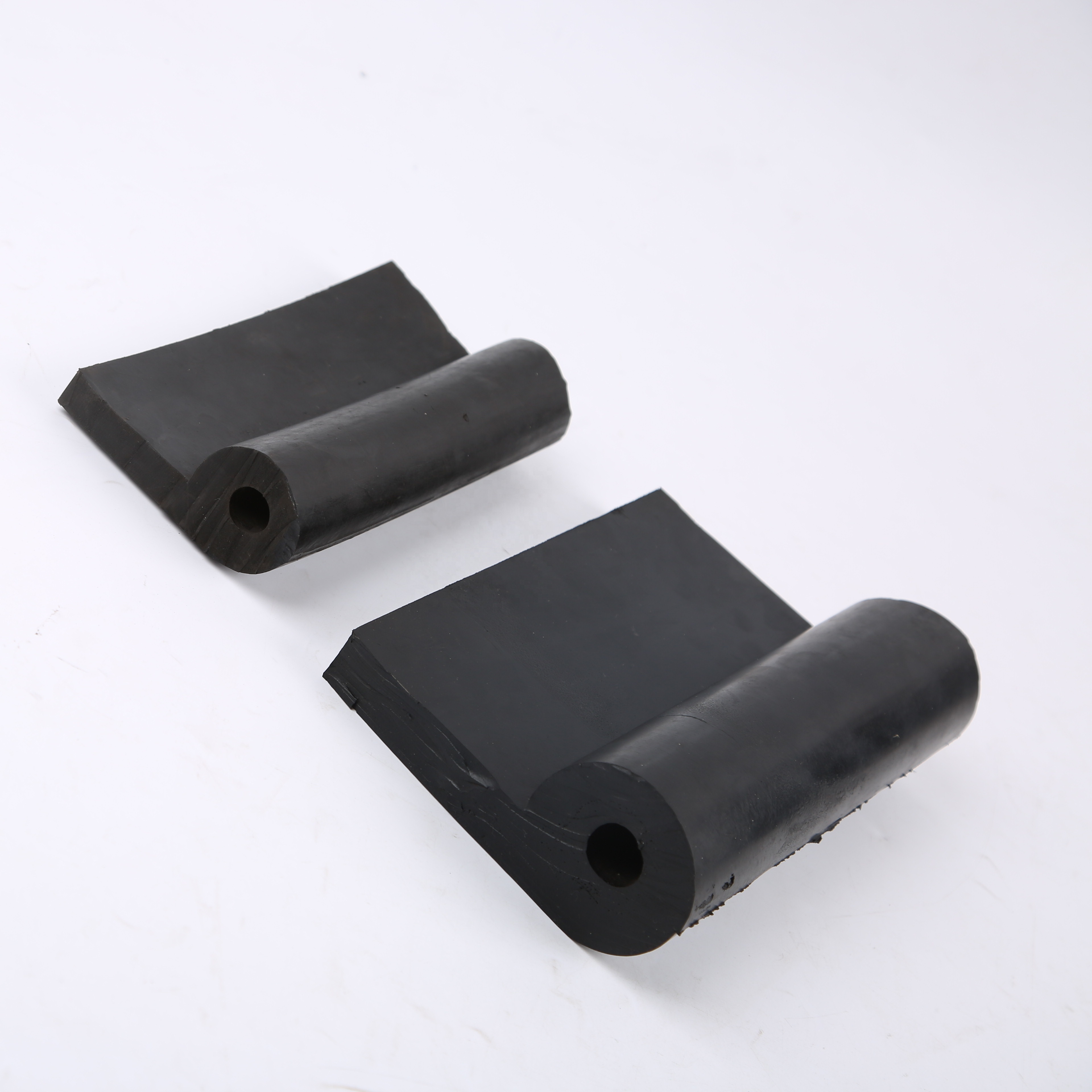

Rubber Gate seal, also known as P-type rubber water-stop, gate seal is an important part of the hydropower project gate, the gate is to ensure airtight seal water, the key components of normal operation.
There are different types with or without PTFE cladding for
increasing in sliding friction that P Type, L Type, W Type, Ω Type, V Type, U Type, Customized Type etc.
Details Images
Size
2.width:80mm,90mm,100mm,110mm,120mm, etc.
3.Thickness:10mm,15mm,20mm,25mm etc.
Specification
|
No.
|
Items
|
Index
|
|
|
|
|
||||
|
|
|
Type I
|
|
|
Type II
|
|
||||
|
|
|
S7774
|
S6674
|
S6474
|
S6574
|
SG6574
|
||||
|
1
|
Hardness, IRHD/Shore A
|
70±5
|
60±5
|
60±5
|
60±5
|
60±5
|
||||
|
2
|
Tensile Strength, Mpa,≧
|
22
|
18
|
18
|
14
|
14
|
||||
|
3
|
Elongation at break,%,≧
|
400
|
450
|
450
|
400
|
400
|
||||
|
4
|
Compression set(70℃×22h),%,≦
|
40
|
40
|
40
|
40
|
40
|
||||
|
5
|
Bonding strength, Kn/m,≧
|
6
|
6
|
6
|
6
|
6
|
||||
|
6
|
Distilled water rate(70℃×96h)%,≦
|
5
|
5
|
5
|
5
|
5
|
||||
|
7
|
Brittleness temperature,℃,≦
|
-40
|
-40
|
-40
|
-30
|
-50
|
||||
|
8
|
Density, Mg/m3
|
1.1-1.3
|
1.0-1.2
|
1.1-1.3
|
1.2-1.5
|
1.0-1.3
|
||||
|
9
|
Compression modulus,Mpa,20%
Compression modulus,Mpa,30%
Compression modulus,Mpa,40%
|
5.8-8.0
5.6-8.0
6.0-9.0
|
5.5-6.0
5.6-6.0
6.2-6.8
|
5.5-6.0
5.6-6.0
6.2-6.8
|
5.5-6.0
5.6-6.0
6.2-6.8
|
5.5-6.0
5.6-6.0
6.2-6.8
|
||||
|
10
|
Set the stretching stress,Mpa,100%
Set the stretching stress,Mpa,200%
|
2.0-4.0
2.5-5.0
|
1.6-2.0
1.8-4.5
|
1.6-2.0
1.8-4.5
|
1.6-2.0
1.8-4.5
|
1.6-2.0
1.8-4.5
|
||||
Gate seal is an important part of the hydro-power project gate, it is a key component to ensure hermetic sealing water gate, normal operation. Gate seal material can be selected according to specific conditions and the level of head orifice size, than the most commonly used rubber gate seal.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
