Quick Details
-
Circulation Type:
-
Direct / Open Loop (Active)
-
Capacity:
-
180
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SANNENG
-
Model Number:
-
SN-NPCS18
-
Certification:
-
ce
-
Outer Tank Diameter:
-
460mm
-
Inner Tank Diameter:
-
360mm
-
Innter tank material:
-
SUS 304
-
Inner Tank Thickness:
-
0.31~0.40mm
-
Insulation:
-
polyurethane integral foam(50-60mm)
-
Vacuum tube:
-
Three target tube,coating CU-SS-ALN/ALN
-
Bracket:
-
coated steel sheet(1.5mm), Aluminum alloy (2.0mm)
-
Outer tank:
-
coated steel sheet (0.3mm-0.4mm)
-
Pressure:
-
Unpressurized
Quick Details
-
Warranty:
-
5 years
-
Application:
-
Outdoor, Commercial
-
Type:
-
Evacuated Tube
-
Circulation Type:
-
Direct / Open Loop (Active)
-
Capacity:
-
180
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SANNENG
-
Model Number:
-
SN-NPCS18
-
Certification:
-
ce
-
Outer Tank Diameter:
-
460mm
-
Inner Tank Diameter:
-
360mm
-
Innter tank material:
-
SUS 304
-
Inner Tank Thickness:
-
0.31~0.40mm
-
Insulation:
-
polyurethane integral foam(50-60mm)
-
Vacuum tube:
-
Three target tube,coating CU-SS-ALN/ALN
-
Bracket:
-
coated steel sheet(1.5mm), Aluminum alloy (2.0mm)
-
Outer tank:
-
coated steel sheet (0.3mm-0.4mm)
-
Pressure:
-
Unpressurized
Unpressurized vacuum tube solar water heater,Solar geyser

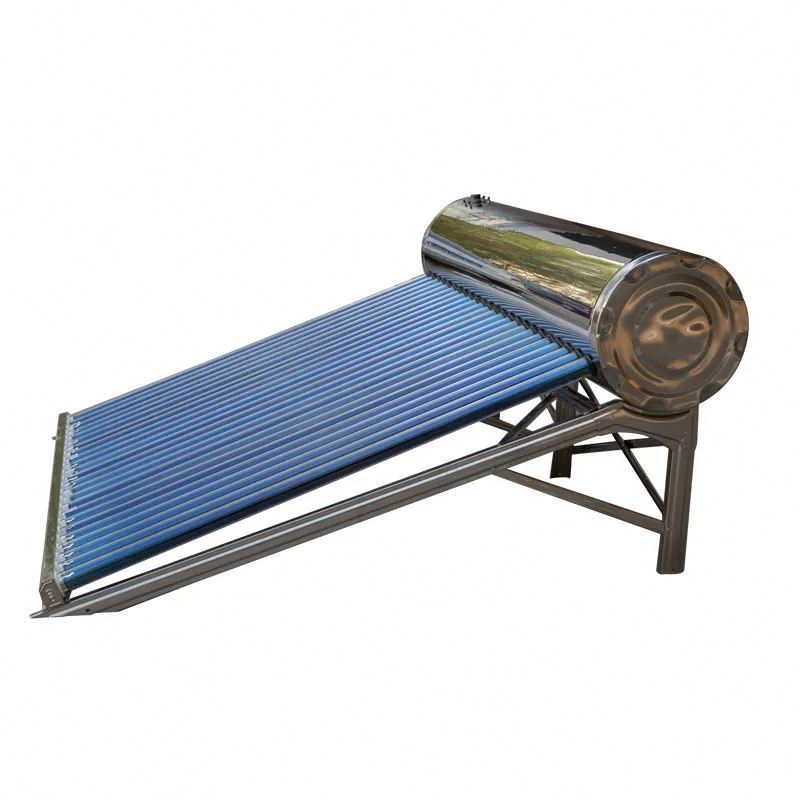

1 . Product Photos
2 . Features And Advantages
Advantages of side feeder/assistant tank:
1. Without feeder tank, you should feed cold water manually. It is very inconvenient.
2. With the big container on the roof, the main tank is full of water. When the water gets hot, if the hot air can't get
out quickly, there is much pressure in the tank. The pressure will damage the non-pressure tank soon. Secondly, because the tank is full of water, the above welding is dipped in the hot water all the
time. It will make the welding place leak soon.
3. Using side feeder tank, there is a little space on the top of tank, so it will decrease the pressure in the tank.
Because there is no water on the top, the welding will not be dipped in the tank. It makes the tank have longer lifetime
Advantages of no welding:
Welding is a damage to stainless steel. We wrap the cover on the main inner tank,
there is no welding, so there is no leaking.
1.With the common silicon ring,it's easy to fall down when installation, but with our new ones, this problem can be solved.
2. We use special water pipe. It is not easy to move, as firm as welding.
3. We use the special red anti-dust ring. It will be easy to change the silicon ring when there is something wrong.
3 . Specifications of Non-welding Low Pressure Vacuum Tube Solar Water Heater
| Brand name | SANENG |
| Description | Low pressure vacuum tube solar water heater |
| Material of inner tank | Food grade SUS 304 stainless steel, 0.4mm (Diameter:360mm) |
| Material of outer tank | Galvanized/Stainless steel, 0.4mm(Diameter:460mm) |
| Assistant tank | Galvanized/Stainless steel (8L) |
| Tank insulating layer | 50mm high-density polyurethane foamed |
| Inlet and outlet hole | Male 3/4 |
| Max pressure of tube | 0.05 Mpa |
| Solar collector tube | 3.3 Borosilicate glass with three-layer coating |
| Thickness of glass tube | 1.6mm |
| Vacuum tube tightness | P≤0.005 Pa |
| Absorption | as=0.93-0.96(AM1.5) |
| Emission ratio | εh=0.04-0.06(80°C±5°C) |
| Idle sunning property parameters | Y=220~260m2.°C/KW |
| Average heat loss coefficient | ULT=0.6~0.7W/(m2*°C) |
| Bracket | Stronger galvanized steel sheet (25°, 27°, 30°, 35°, 45°, 50°) |
| Structure of tank | 5 holes: air vent/overflow hole/water inlet /water outlet/electric element hole |
| Fastening pieces | Stainless steel screws & nuts |
| Heat preservation | 72 hours |
| Certification | Passed CE/ISO9001/CCC |
4 . Non-pressurized Solar Water Heater Series
7 . Solar Water Heater Installation
8 . Non-pressureized Solar Water Heater Model for Your Reference
