Quick Details
-
Battery Size:
-
12V 7Ah
-
Brand Name:
-
Urgely
-
Model Number:
-
RE12-70
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
1.95kg
-
Product name:
-
Lead Acid Battery
-
Cells Per Unit:
-
6
-
Voltage Per Unit:
-
12
-
Nominal Capacity:
-
7Ah@20hour-rate to 1.75V per cell @25℃
-
Internal Resistance:
-
Approx. 36 mΩ
-
Terminal:
-
F1/F2
-
Max. Discharge Current:
-
70A (5 sec)
-
Short Circuit Current:
-
340A
-
Design Life:
-
6~8 years (Float charging)
-
Max. Charging Current:
-
2.1 A
Quick Details
-
Chargeable:
-
Yes
-
Battery Type:
-
Deep Cycle: Sealed Gel
-
Storage Type:
-
25℃±5℃
-
Battery Size:
-
12V 7Ah
-
Brand Name:
-
Urgely
-
Model Number:
-
RE12-70
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
1.95kg
-
Product name:
-
Lead Acid Battery
-
Cells Per Unit:
-
6
-
Voltage Per Unit:
-
12
-
Nominal Capacity:
-
7Ah@20hour-rate to 1.75V per cell @25℃
-
Internal Resistance:
-
Approx. 36 mΩ
-
Terminal:
-
F1/F2
-
Max. Discharge Current:
-
70A (5 sec)
-
Short Circuit Current:
-
340A
-
Design Life:
-
6~8 years (Float charging)
-
Max. Charging Current:
-
2.1 A
Product Description
Product Paramenters

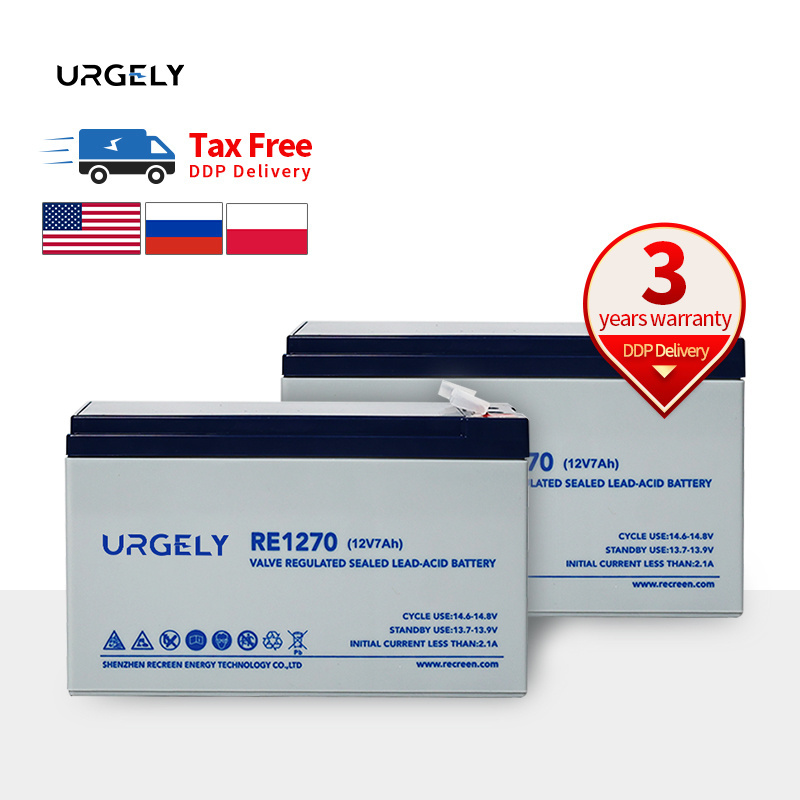

RE-1270
RE series is a general purpose battery with 6~8 years design life in float service.
It meets with IEC, JIS, BS ,GB/T and YD/T standards.
With advanced AGM valve regulated technology and high purity raw material, the RE series battery maintains high consistency for better performance and reliable standby service life.
It is suitable for UPS/EPS, medical equipment, emergency light and security system applications.
|
Specification
|
|
|
|
Cells Per Unit
|
6
|
|
|
Voltage Per Unit
|
12
|
|
|
Nominal Capacity
|
7Ah@20hour-rate to 1.75V per cell @25℃
|
|
|
Weight
|
Approx. 1.95 Kg (Tolerance±5.0%）
|
|
|
Internal Resistance
|
Approx. 36 mΩ
|
|
|
Terminal
|
F1/F2
|
|
|
Max. Discharge Current
|
70A (5 sec)
|
|
|
Design Life
|
6~8 years (Float charging)
|
|
|
Recommended Maximum Charging Current
|
2.1 A
|
|
|
Reference Capacity
|
C3 5.42AH,C20 7.00AH,C5 6.11AH,C10 6.54AH
|
|
|
Standby Use Voltage
|
13.7 V~13.9 V @ 25℃, Temperature Compensation: -3mV/℃/Cell
|
|
|
Cycle Use Voltage
|
14.6 V~14.8 V @ 25℃, Temperature Compensation: -4mV/℃/Cell
|
|
|
Operating Temperature Range
|
Discharge: -20℃~60℃, Charge: 0℃~50℃, Storage: -20℃~60℃
|
|
|
Normal Operating Temperature Range
|
25℃±5℃
|
|
|
Self Discharge
|
Valve Regulated Lead Acid (VRLA) batteries can be stored for up to 6 months at 25℃ and then recharging is recommended. Monthly Self-discharge ratio is less than 3% at 25℃.Please charged batteries before using.
|
|
|
Container Material
|
A.B.S. UL94-HB, UL94-V0 Optional.
|
|
Kindly Notice,pls reconfirm the detailed information with our sales team due to the update technical information
