Quick Details
-
Usage:
-
Wood surface 4 side Planning and cutting
-
Voltage:
-
380,415,440V,Customized
-
Dimension(L*W*H):
-
2900x1650x1580mm
-
Application:
-
Woodworking factory, Door and window factory, Furniture factory
-
Weight (KG):
-
1800 KG
-
Power (kW):
-
36.25
-
Core Components:
-
planning spindle
-
Product name:
-
Woodworking Combined Planing And Sawing Surface Planer Machine
-
Function:
-
Double,four side wood thicknesser plan,mould and cut
-
Max.working width:
-
230mm
-
Max.working thickness:
-
120mm
-
Motor Power:
-
21.25,25.75,29.75,36.25,46.32kw
-
Feeding speed:
-
10-35m/min Frequency
-
Cutting knives:
-
Plain knives,spiral knives
-
Machine type:
-
Double side plan, four side plan
-
Spindles quantity:
-
4,5,6 spindles, optional
-
Final product application:
-
Furniture,window,shutters,door profile,customized shape
Quick Details
-
Type:
-
Four side wood planer mould machine
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ZZCHRYSO
-
Usage:
-
Wood surface 4 side Planning and cutting
-
Voltage:
-
380,415,440V,Customized
-
Dimension(L*W*H):
-
2900x1650x1580mm
-
Application:
-
Woodworking factory, Door and window factory, Furniture factory
-
Weight (KG):
-
1800 KG
-
Power (kW):
-
36.25
-
Core Components:
-
planning spindle
-
Product name:
-
Woodworking Combined Planing And Sawing Surface Planer Machine
-
Function:
-
Double,four side wood thicknesser plan,mould and cut
-
Max.working width:
-
230mm
-
Max.working thickness:
-
120mm
-
Motor Power:
-
21.25,25.75,29.75,36.25,46.32kw
-
Feeding speed:
-
10-35m/min Frequency
-
Cutting knives:
-
Plain knives,spiral knives
-
Machine type:
-
Double side plan, four side plan
-
Spindles quantity:
-
4,5,6 spindles, optional
-
Final product application:
-
Furniture,window,shutters,door profile,customized shape
Product Description

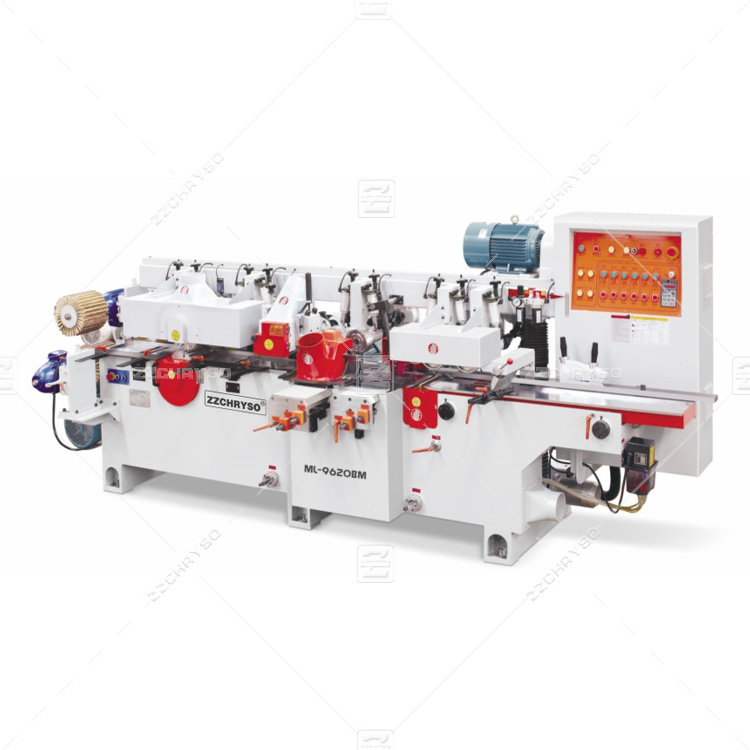

ZZCHRYSO wood planer machine is designed for woodworking factory to process wood plank, plan the wood surface to be smooth and beautiful.
Customized cutting knives for making special-shaped board.
Especially widely used in window, door and furniture factory.
Model such as double side planer and four side planer with 5 spindles or 6 spindles.
The cutting knives can choose spiral or plain knives as demands.
Application
The final planned wood profile is widely applied in different
occasions,such as furniture,window and door production,construction sites.
Planer Machine,
Four Side Wood Planer,
Moulding Planer,
Woodworking Surface Planer Machine,
4 Sides Thickness Planer,
6 Spindles Moulder Machine,
Wood Moulding Machine,
Wood Thicknesser Planer,
Lumber Planer Moulder,
Wood Moulder Milling Machine,
Shaper Moulding Machine
Children's Bed
Bed Board
Wall Panel
Special Shaped Boards
Special Shaped Boards
Sound Absorbing
Door
Photo Frame
Bed
Stream Room
Tables and Chairs
Children Bed
Specification
|
Product Name
|
Wood planer machine from ZZCHRYSO
|
|
|
|
|
||||
|
Model
|
CRS415
|
CRS420
|
CRS515
|
CRS523
|
CRS623
|
||||
|
Max. Processing Width
|
150mm
|
200mm
|
150mm
|
230mm
|
230mm
|
||||
|
Min. Porcessing Width
|
15mm
|
|
|
|
|
||||
|
Max. Processing Thickness
|
120mm
|
|
|
|
|
||||
|
Min. Processing Thickness
|
10mm
|
|
|
|
|
||||
|
Min. Processing Length
|
550mm
|
|
|
|
|
||||
|
Feeding Speed
|
10-35 m/min
|
|
|
|
|
||||
|
Total Power
|
21.25 kw
|
25.75 kw
|
29.75 kw
|
36.25 kw
|
41.75 kw
|
||||
|
Dimension
(mm)
|
2900*1600*
1580
|
2900*1650*
1580
|
3500*1600*
1600
|
3500*1650*
1600
|
4050*1650*
1600
|
||||
|
Weight(kgs)
|
1800
|
2300
|
2400
|
3000
|
3300
|
||||
Advantages
Features and Advantages of Wood Planer Machine
2. This adopt step-less feeding,material feeding speed ranges from 10 to 35 meters/min.
3
. Each spindle driven by an independent motor, with strong cutting force.
4. International brands electrical parts for good stability.
5. Fully enclosed safety shield, effectively avoid sawdust flying and isolate noise.
6. Pneumatic compress feeding roller is applied,that can be adjusted by stages,favorable for timbers with different thickness.
7. Up and down saws are responsible for 50% machining,high efficiency,energy saving and material saving.
8. Configured auxiliary device for short profile to promote the smooth feed.
9. Button on machine,power cut protection device for checking and saw blade replacing,provide people and machine safety.
10. Precision spindle, stable performance and high precision.
Planer Machine,Four Side Wood Planer,Moulding Planer,Woodworking Surface Planer Machine,4 Sides Thickness Planer, 6 Spindles
Moulder Machine,Wood Moulding Machine,Wood Thicknesser Planer, Lumber Planer Moulder, Wood Moulder Milling Machine,Shaper Moulding
Machine
Moulder Machine,Wood Moulding Machine,Wood Thicknesser Planer, Lumber Planer Moulder, Wood Moulder Milling Machine,Shaper Moulding
Machine
Anti rebound Equipment
It can effectively prevent broken wood chips, tumor joints, etc. From flying and injuiring people, and is equipped with a back-up device to lift and break the electric safety protection mechanism to fully protect the safety of human and machine. The rubber wheel does not hurt the workpiece. Multi row design feed is more stable and prevents springboard.
High precision spare parts
All spindles are precision constructed and specially heat treated to provide maximum cutting stability and permanent accuracy.
Professional electrical appliance
Schneider and Tracy electrical products and appliance insure the whole machine run well with a stable performance, and greatly improve service life.
Outstanding Feeding Performance
There are more top and bottom powered rollers than in most competitors’ model, and this is an important reason for outstanding feeding performance
Control panel
The operation panel integrates the overload power indicator and various switches, which is easy to operate and easy to use.
Digital display for precise adjustment of cutting volume
