Hat ironing is an important process in hat production. Our hat ironing machine has a built-in steam boiler, the steam generated makes the hat ironing and shaping. In addition, it is equipped with automatic water system and water shortage alarm system, which improves the work efficiency and safety.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
YIZE
-
Power:
-
7KW
-
Dimension(L*W*H):
-
770*680*1310/1470*760*1310
-
Weight:
-
180
-
Application:
-
Common Baseball Cap
-
Product name:
-
Cap Ironing Machine
-
Name:
-
Cap Making roning Machine
-
Usage:
-
Cap Porcessing
-
Keywords:
-
Cap Ironing Machine
-
Kw:
-
Headwear Facilities Cap Ironing Machine-1head
-
Material:
-
Aluminium Alloy
-
Head:
-
Single Head/Double head/muti head
-
Cap type:
-
Fisherman's hat, baseball cap, top hat;peaked cap
-
Function:
-
Hat ironing machine
Quick Details
-
Voltage:
-
220V
-
Marketing Type:
-
Hot Product 2023
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YIZE
-
Power:
-
7KW
-
Dimension(L*W*H):
-
770*680*1310/1470*760*1310
-
Weight:
-
180
-
Application:
-
Common Baseball Cap
-
Product name:
-
Cap Ironing Machine
-
Name:
-
Cap Making roning Machine
-
Usage:
-
Cap Porcessing
-
Keywords:
-
Cap Ironing Machine
-
Kw:
-
Headwear Facilities Cap Ironing Machine-1head
-
Material:
-
Aluminium Alloy
-
Head:
-
Single Head/Double head/muti head
-
Cap type:
-
Fisherman's hat, baseball cap, top hat;peaked cap
-
Function:
-
Hat ironing machine
Product Description
industrial hat cap ironing machine mould single/double head customizable automatic cap making machines
Hat pressing machine line has many products:
Automatic baseball cap pressing machine (single mold, double mold, multi-mold); Simple ironing machine, three head cold machine; Bending eyebrow, front piece, ironing cap in one machine; Top hat, baseball cap in one machine; Automatic cowboy hat ironing machine; Automatic trekking hat ironing machine; Empty cap machine; Airbag ironing machine; Press the hat before the piece machine; Eyebrow bending machine; Cooler; Bag buckle machine; Nailing machine; Conveying cooling table; Hat dust removal equipment, etc.
Detailed Images

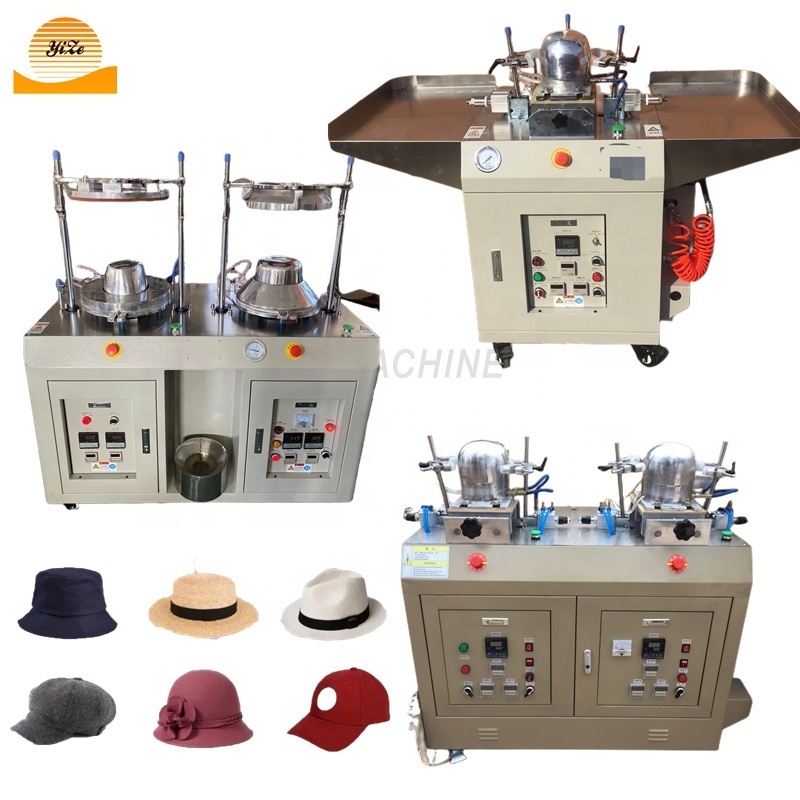

This product is mainly single mold and double mold hat ironing machine
A mold picture and size introduction: 770*680*1310mm
Double head mold picture and size description:1470*760*1310mm
|
Model number
|
YZLZ-1-A1
|
Boiler starting low pressure
|
1.5 pa
|
|
voltage
|
220V
|
Boiler high pressure stop
|
3.0 pa
|
|
power
|
6KW
|
Boiler relief valve take-off pressure
|
6pa
|
|
volume
|
130*75*120cm
|
Overall air pressure setting of equipment
|
4-6pa
|
|
weight
|
220kg
|
Mold temperature setting
|
Adjustable (regular 10s)
|
|
Working system
|
pneumatic
|
Water shortage protection
|
yes
|
|
boiler
|
Built-in steam boiler
|
Water shortage alarm
|
yes
|
|
Support plate
|
yes
|
Dehydration and replenishment
|
automatic
|
|
Mold adjustment range
|
0-2.5 cm
|
Boiler heating power
|
4kw
|
|
Die heating power
|
1KW
|
Neat time
|
Adjustable (regular 1s)
|
|
Setting time
|
Adjustable (regular 3s)
|
Clamping time
|
Adjustable (regular 1s)
|
|
Wiring requirements
|
6 square copper wire
|
Air compressor requirements
|
60L
|
Features
:
1. The rear can transport cooling table, conveying cooling baseball cap
2. Steam time, clip cap time, steam output, air volume can be automatically adjusted
3. Built-in steam generator, no external boiler, automatic water supply, suitable for mass production needs
4 manipulator can grasp the hat automatically, just put the hat on the cap die to finish ironing
5. This product category includes 1 head, 2 head, many first-class different models
Different cap mold:
fisherman's cap mold, baseball cap mold, each mold can be customized according to your needs do not understand
the size
the size
Accessories: Size, packaging
.
Packing & Delivery
Packing
We send the machine picture which you order . then packing it with standard export wooden box after you confirm machine is ok .
Different machines package will different . we supply standard export wooden box ,carton box package . if big machine and production line machine it will be loaded in the container directly.
Delivery
1.Delivery by sea :After delivery it to seaport . will tell you the shipping time and addrive time . Finally , send all origin documents to you by Express for free .
2.Delivery by Express to your door (DHL/TNT/Fedex/UPS etc ) or by air to your city airport .Will tell you the Express tracking number .
3.Delivery to the warehouse which you reques . Will tell you
logistic or express tracking number .
Company and Workshop
Welcome to Zhengzhou Yize Machinery Co.,ltd.
Zhengzhou Yize engaged in a wide range of machine business, We are in this line for more than 10 years. We provide best quality machines and solutions for global users in machinery fields. Some of them also visit us and check our machines. From the single machine to the automatic product line, From china to the whole world. Zhengzhou Yize committed to machine manufacturing and high efficiency producing. We also have development on new material and key technology. We welcome you to visit us and make a deal.
