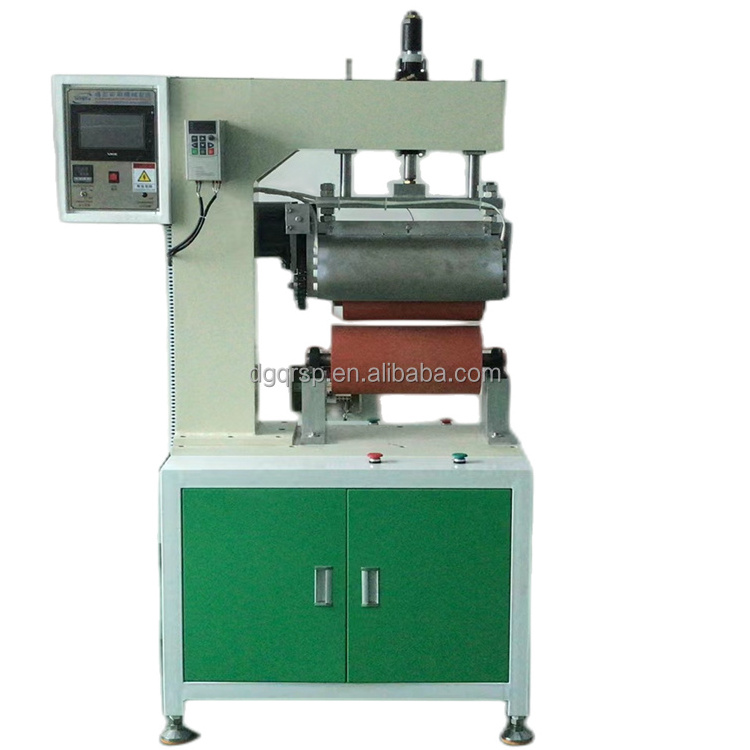

QR-280T1MYC single head heat transfer machine for skateboard

QR-280T1MYC single head heat transfer machine for skateboard

I. Characteristics:

1. Adopt PLC programmable controller, high sensitivity, touch screen operation interface, simple and convenient.

2. 2P hydraulic cylinder down pressure, transfer pressure is large.

3. Adopt double straight elbow hydraulic cylinder lifting type, adjustable stroke is 75MM, adjustable stroke is 50MM; The machine runs more stably.

4. 200W motor/inverter speed control drive, large torque, fast speed.

5. Adjustable temperature and transfer time. High precision, the stability of the whole machine is super good.

6. The height of stamping head can be adjusted;. The heating pipe is made of stainless steel, which can withstand high temperature of 800℃. Single series heat conduction, so that hot stamping rubber head temperature to maintain uniform.

II. Parameters:

1, printing monochrome/multicolor.

2. Single cycle is OK.

3. Continuous exercise can.

4. Item counting is OK.

5, speed adjustment can be.

6, each part of the delay can.

7, printing speed 200-300 times/hour.

8, drive hydraulic, frequency conversion motor.

9, control system PLC control.

10, the size of the rubber roller:250×280mm (can hold 12 inches wide rubber wheels).

11, hydraulic cylinder up and down stroke: 75 mm.

12, the maximum workpiece height: 30mm.

13, stamping temperature selection range: room temperature ~ 300℃.

14, hot stamping pressure selection range: ≤2000kgf.

15, heating power: 4KW.

16. Total power: 6.5KW.

17. Net weight/total package weight: 470KG/530KG.

18. Net size/wooden box size: 1150*750*2050mm/1250*850*2150mm.

III. Machine operation safety performance: QR-280T1MYC single-head heat transfer machine for sliding plate conforms to the latest engineering style. After the program is set to stop the main power supply, the hot head motor will automatically power off after continuous working for 50 minutes (to protect the cots from being burned off at high temperature). Absolutely reliable if used as required.

The machine is equipped with an emergency switch: when the emergency switch is pressed, the machine will be powered off immediately. Return to the starting position, and when things are done, turn the emergency switch, and you can safely start back to normal.

Iv. Precautions:

(1) When the machine needs to be moved or repaired, the power and air source must be cut off.

(2) When adjusting or cleaning the machine, please follow the steps.

(3) Strengthen the awareness of fire prevention, equipped with fire equipment.

Wooden box.
