Quick Details
-
Dimension(L*W*H):
-
5900*2250*2400mm
-
Weight:
-
8500 KG
-
Rated power:
-
113kw
-
Max. Torque:
-
200kN
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Tewrex
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
5900*2250*2400mm
-
Weight:
-
8500 KG
-
Rated power:
-
113kw
-
Max. Torque:
-
200kN

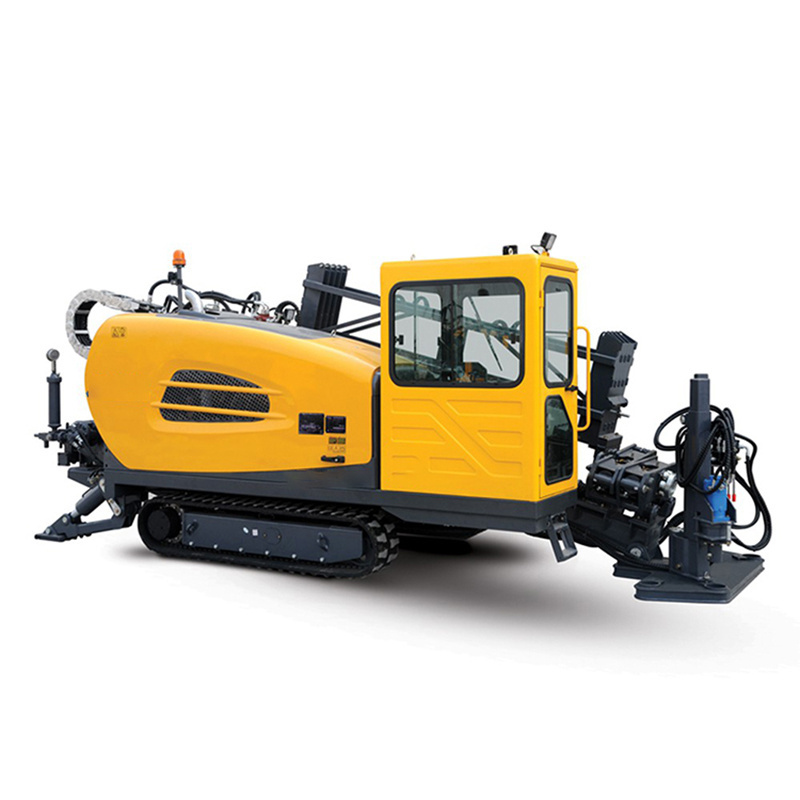

Product Description
1,Hydraulic pilot control, with comfortable handling and flexible regulation, first-class brand of hydraulic components to ensure the reliability of the whole hydraulic system.
2,Rack and pinion sliding, to ensure the stability of the carriage and the reliability of drive operational. Carriage floating,
floating vise patented technology can greatly protect the drill pipe thread, increase the service life of the drill pipe.
3,High-speed sliding systems, variable motor to achieve high and low carriage sliding change, increasing the ability to adapt the drilling rig working conditions, improve the efficiency of the drilling rig construction.
4,Stable chassis support, using the classic H-beam structure, high quality rubber track, breaststroke leg structure, provide a strong guarantee for the stability of the whole construction.
5,Support the diverse needs of customers, the machine can be increased with the automatic (semi-automatic) drill pipe handling device, automatic anchoring system, cab, air conditioning wind, freezing mud, mud washing and other devices, can also optional more environmentally friendly.
2,Rack and pinion sliding, to ensure the stability of the carriage and the reliability of drive operational. Carriage floating,
floating vise patented technology can greatly protect the drill pipe thread, increase the service life of the drill pipe.
3,High-speed sliding systems, variable motor to achieve high and low carriage sliding change, increasing the ability to adapt the drilling rig working conditions, improve the efficiency of the drilling rig construction.
4,Stable chassis support, using the classic H-beam structure, high quality rubber track, breaststroke leg structure, provide a strong guarantee for the stability of the whole construction.
5,Support the diverse needs of customers, the machine can be increased with the automatic (semi-automatic) drill pipe handling device, automatic anchoring system, cab, air conditioning wind, freezing mud, mud washing and other devices, can also optional more environmentally friendly.
Contact us: Monica Yin
|
Description
|
Unit
|
|
|
Parameter value
|
||
|
Engine
|
Manufacturers
|
|
|
Imported Engine
|
||
|
|
China III
|
Model
|
|
QSB5.9-C150
|
||
|
|
|
Rated Power
|
kW /(r/min)
|
113 / 2200
|
||
|
|
China II
|
Model
|
|
6BTAA5.9-C150
|
||
|
|
|
Rated Power
|
kW /(r/min)
|
112/ 2200
|
||
|
|
China III
|
Model
|
|
QSB4.5-C160
|
||
|
|
|
|
|
|
||
|
|
EU Stage IIIA
|
Rated Power
|
kW /(r/min)
|
119/2200
|
||
|
Thrust-Pull
|
Type
|
|
|
Pinion and rack drive
|
||
|
|
Max thrust-pull force
|
|
kN
|
225/225
|
||
|
|
Max thrust-pull speed
|
|
m/min
|
26
|
||
|
Rotation
|
Type
|
|
|
two motor
|
||
|
|
Torque
|
|
N·m
|
6350
|
||
|
|
Max spindle speed
|
|
r/min
|
160
|
||
|
Loader Crance
|
/
|
|
|
/
|
||
|
Max inclination angle
|
°
|
|
|
22
|
||
|
Pipe
|
Diameter × Length
|
|
mm×mm
|
Φ60×3000
|
||
|
Mud pump
|
Max Flow rate
|
|
L/min
|
250
|
||
|
|
Max pressure
|
|
MPa
|
8
|
||
|
Weight
|
kg
|
|
|
8500
|
||
