Quick Details
-
Packaging Type:
-
Bulk
-
Application:
-
High Frequency
-
Package / Case:
-
Mylar Tape
-
Series:
-
Axial Lead
-
Description:
-
Axial Lead Tubular Film Capacitor
-
Capacitance:
-
Axial Film Capacitor, 0.1uF~35uF
-
Coating:
-
Wrapped in flame retardant tape and epoxy resin end seal
-
Certificate:
-
RoHS
-
Color:
-
Yellow
-
Applications:
-
High Frequency, Impulse Voltage
-
Rated Voltage:
-
250 ~ 2000VDC
-
Packing:
-
Box
-
Climatic Category:
-
40/110/21
-
Sample:
-
0.01
-
Rate Temperature:
-
-40℃~+110℃
Quick Details
-
Place of Origin:
-
Taiwan, China
-
Brand Name:
-
CT
-
Model Number:
-
MPT
-
Packaging Type:
-
Bulk
-
Application:
-
High Frequency
-
Package / Case:
-
Mylar Tape
-
Series:
-
Axial Lead
-
Description:
-
Axial Lead Tubular Film Capacitor
-
Capacitance:
-
Axial Film Capacitor, 0.1uF~35uF
-
Coating:
-
Wrapped in flame retardant tape and epoxy resin end seal
-
Certificate:
-
RoHS
-
Color:
-
Yellow
-
Applications:
-
High Frequency, Impulse Voltage
-
Rated Voltage:
-
250 ~ 2000VDC
-
Packing:
-
Box
-
Climatic Category:
-
40/110/21
-
Sample:
-
0.01
-
Rate Temperature:
-
-40℃~+110℃

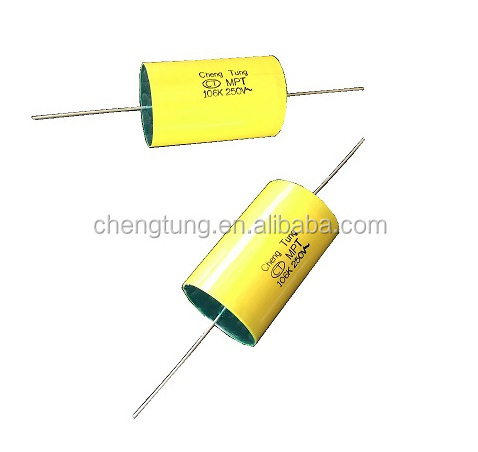

| High Frequency Axial Leads Polyester Film Capacitor |
METALLIZED POLYPROPYLENE (POLYESTER) FILM CAPACITOR
|
TYP E : MPT/MFT (Tubular) |
|
|
FEATURES |
APPLICATIONS |
|
|
|
|
|
|
|
SPECIFICATIONS |
|
|
Dielectric |
Polypropylene film Polyester film |
|
Electrodes |
Vacuum evaporated metal |
|
Coating |
Wrapped in flame retardant tape and epoxy resin end seal. |
|
Leads |
Axial leads of tinned wire |
|
Climatic Catalogue |
40 / 100 / 21 |
|
Capacitance versus Rated Voltage (U R ) |
250 ~ 2000VDC 0.1 uF ~ 35uF |
|
Capacitance Tolerance |
J = ± 5% K = ±10% M = ± 20% |
|
Dissipation Factor (Tangent of Loss) |
<=0.1% at 1KHz and 20℃(MPT/MPF) <= 1.0% at 1KHz and 20℃(MFT/MFF) |
|
Voltage Proof |
T-T WV x 1.6 1min T-C 2000V.DC 1min |
|
TYP E : MPF/MFF (Flat Oval) |
|
|
FEATURES |
APPLICATIONS |
|
|
|
|
|
|
|
SPECIFICATIONS |
|
|
Dielectric |
Polypropylene film Polyester film |
|
Electrodes |
Vacuum evaporated metal |
|
Coating |
Wrapped in flame retardant tape and epoxy resin end seal. |
|
Leads |
Axial leads of tinned wire |
|
Climatic Catalogue |
40 / 100 / 21 |
|
Capacitance versus Rated Voltage (U R ) |
250 ~ 2000VDC 0.1 uF ~ 35uF |
|
Capacitance Tolerance |
J = ± 5% K = ±10% M = ± 20% |
|
Dissipation Factor (Tangent of Loss) |
<= 0.1% at 1KHz and 20℃(MPT/MPF) <= 1.0% at 1KHz and 20℃(MFT/MFF) |
|
Voltage Proof |
T-T WV x 1.6 1min T-C 2000V.DC 1min |
|
Insulation Resistance |
C<=0.33uF IR>=30,000MΩ C>0.33uF IR >= 10,000MΩ / uF |
