Quick Details
-
Brand Name:
-
DELL
-
Model Number:
-
PowerSwitch N3024
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
Dell EMC PowerSwitch N3024 24-Port L3 Switch
-
MOQ:
-
1 Pcs
-
Packing:
-
Original packing
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
Other
-
Brand Name:
-
DELL
-
Model Number:
-
PowerSwitch N3024
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
Dell EMC PowerSwitch N3024 24-Port L3 Switch
-
MOQ:
-
1 Pcs
-
Packing:
-
Original packing

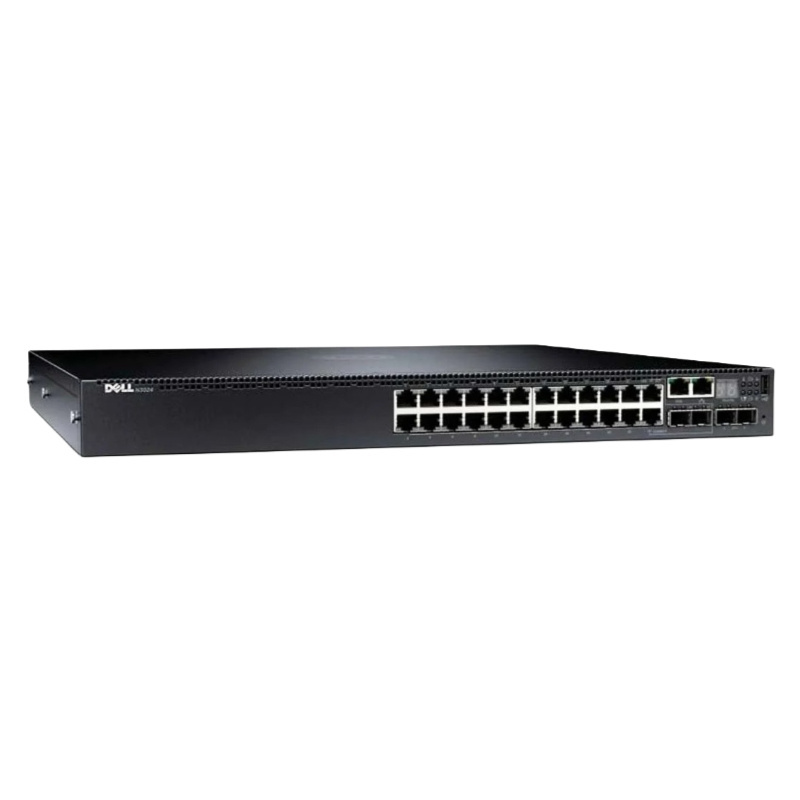

Dell EMC Networking PowerSwitch N3024 24-Port L3 Switch N3000 Switches
Dell Networking N3024, L3 ,24x1GbE, 2xCombo, 2x10GbE SFP+Fixed port, stack, airflow from IO to PSU, 1x AC PSU
Energy-efficient, cost-effective 1GbE switches for modernizing and scaling network infrastructure
The N3024/N3024P I/O-side provides 24 Gigabit Ethernet (10/100/1000BASE-T) RJ-45 ports that support auto-negotiation for speed, flow control, and duplex. The N3024/N3024P models support two SFP+ 10G ports. Dell-qualified SFP+ transceivers are sold separately.
The N3000 switch series offers a power-efficient and resilient Gigabit Ethernet (GbE) switching solution with integrated 10GbE uplinks for advanced Layer 3 distribution for offices and campus networks. The series has high-performance capabilities and wire-speed performance utilizing a non-blocking architecture to easily handle unexpected traffic loads. Use dual internal hot-swappable 80PLUS-certified power supplies for high availability and power efficiency. The switches offer simple management and scalability via an 84Gbps (full duplex) high-availability stacking architecture that allows management of up to 12 switches from a single IP address. Note: With OS 6.5.1.x and higher, max stack for N3000 series is 8; however, N3000E series and N3132PX-ON support max stack of 12 members. N3000 series can be stacked with N3000E series; however, stack size is limited to 8 and active VLANs to 1024.
N3024 Features:
- 24x RJ45 10/100/1000Mb auto-sensing ports,
- 2 integrated front 10GbE SFP+ dedicated ports
- 2x GbE combo media ports
- 2 rear stacking ports (21Gbps) supporting up to 84Gbps (full duplex)
- 1x hot swap expansion module bay (Default comes with blank)
· Options:
· 2-port 10 Gigabit BASE-T RJ-45 hot swappable uplink module
· 2-port 10 Gigabit SFP+ hot swappable uplink module
-
1x 200W AC hot swappable with V-Lock,
(Dual hot-swap power supply bays (optional power supply available))
· Power Cord Options:
· C13 to NEMA 5-15, 3M
· C13 to C14, 2M
Performance
- MAC addresses: 32K
- Comes with Auto-MDI/MDIX
- Static routes: 1,024 (IPv4)/1,024 (IPv6)
- Dynamic routes: 8,160 (IPv4)/4,096 (IPv6)
- Switch fabric capacity: 212Gbps (full duplex)
- Forwarding rate:158Mpps
- Line-rate Layer 2 switching: All (non-blocking)
- Line-rate Layer 3 routing: All (non-blocking)
- Flash memory: 256MB
- VLAN routing interfaces: 128
- VLANs supported: 4,094
- Max VLAN interfaces with ACLs applied: 24
- Select N3000 switches now support the OpenNetwork Install Environment (ONIE), enabling installation of alternatenetwork operating systems.
Modernize campus network architectures
Modernize campus network architectures with a power-efficient and resilient 1/10GbE switching solution with dense Power over Ethernet Plus (PoE+) and PoE 60W. Select N3000 models offer 24 or 48 ports of PoE+, or up to 32 ports of PoE 60W to deliver clean power to network devices such as wireless access points (APs), Voice-over-IP (VoIP) handsets, video conferencing systems and security cameras. For greater interoperability in multivendor networks, N3000 series switches offer the latest open-standard protocols and include technology to interface with Cisco protocol RPVST+ and devices using CDP.
N3024, N3024F switches support two 200-watt field replaceable unit (FRU) power supplies which give full power redundancy for the switch. The N3024, N3024F switches offer the V-lock feature for users desiring the need to eliminate accidental power disconnection. The V-lock receptacle on the PSU allows you to use a power cord that has the V-lock feature to create an integral secure locking connection
| Product | Description |
| N3000 series |
N3024: 24x RJ45 10/100/1000Mb auto-sensing ports, 2x SFP+ ports, 2x GbE combo media ports, 1x hot swap
expansion module bay, 1x 200W PSU included N3024ET-ON: 24x RJ45 10/100/1000Mb auto-sensing ports, 2x SFP+ ports, 2x GbE combo media ports, 1x hot swap expansion module bay, 1x 200W PSU included, 2Gb memory and 1Gb of flash N3024F: 24x 1000-SX (up to 500m distance) or 1000-LX (up to 10km distance) SFP GbE ports, 2x SFP+ ports, 2x GbE combo media ports, 1x hot swap expansion module bay, 1x 200W PSU included N3024EF-ON: 24x 1000-SX (up to 500m distance) or 1000-LX (up to 10km distance) SFP GbE ports, 2x SFP+ ports, 2x GbE combo media ports, 1x hot swap expansion module bay, 1x 200W PSU included, 2Gb memory and 1Gb of flash N3024P: 12x RJ45 10/100/1000Mb PoE+ (up to 30.8W) auto- sensing ports, 12x RJ45 10/100/1000Mb PoE 60W auto-sensing ports, 2x SFP+ ports, 2x GbE combo media ports, 1x hot swap expansion module bay, 1x 715W PSU included (requires C15 plug) N3024EP-ON: 12x RJ45 10/100/1000Mb PoE+ (up to 30.8W) auto- sensing ports, 12x RJ45 10/100/1000Mb PoE 60W auto-sensing ports, 2x SFP+ ports, 2x GbE combo media ports, 1x hot swap expansion module bay, 1x 715W PSU included (requires C15 plug), 2Gb memory and 1Gb of flash N3048: 48x RJ45 10/100/1000Mb auto-sensing ports, 2x SFP+ ports, 2x GbE combo media ports, 1x hot swap expansion module bay, 1x 200W PSU included N3048ET-ON: 48x RJ45 10/100/1000Mb auto-sensing ports, 2x SFP+ ports, 2x GbE combo media ports, 1x hot swap expansion module bay, 1x 200W PSU included, 2G memory and 1Gb of flash N3048EP-ON: 48x RJ45 10/100/1000Mb PoE+ (up to 30.8W) auto-sensing ports; first twelve RJ45 10/100/1000Mb can provide PoE 60W auto-sensing ports, 2x SFP+ ports, 2x GbE combo media ports, 1x hot swap expansion module bay, 1x 1100W PSU included (requires C15 plug); 2GB memory and 1GB flash N3048P: 48x RJ45 10/100/1000Mb PoE+ (up to 30.8W) auto- sensing ports; first twelve RJ45 10/100/1000Mb PoE 60W auto-sensing ports, 2x SFP+ ports, 2x GbE combo media ports, 1x hot swap expansion module bay, 1x 1100W PSU included (requires C15 plug) N3132PX-ON: 24x RJ45 10/100/1000Mb PoE 60W auto-sensing ports, 8x RJ45 10/100/1000/2500/5000Mb PoE 60W auto-sensing ports, 4x SFP+ ports, 1x hot swap expansion module bay, 1x 1100W PSU included (requires C15 plug) |
| Power cords |
C13 to NEMA 5-15, 3M
C13 to C14, 2M C15 to NEMA 5-15, 2M (C15 for POE N-Series only) |
| Modules (optional) |
2-port 10 Gigabit BASE-T RJ-45 hot swappable uplink module
2-port 10 Gigabit SFP+ hot swappable uplink module 2-port 40 Gigabit QSFP+ hot swappable module (N3132PX-ON only) Stacking module (N3132PX-ON only) |
| Power supplies (optional) |
200W AC hot swappable with V-Lock, adds redundancy to non- PoE switches (N3024, N3024ET-ON, N3024F,
N3024EF-ON, and N3048 and N3048ET-ON only) 715W AC hot swappable, adds redundancy to N3024P and N3024EP-ON (N3024P only) 1100W AC hot swappable, adds redundancy to N3048P and N3048EP-ON or upgrade N3024P and N3024EP-ON for additional PoE+ power (N3024P, N3024EP-ON, N3048P, N3048EP-ON, N3132PX-ON only) |
| Optics (optional) |
Transceiver, SFP, 100BASE-FX, 1310nm wavelength, up to 2km reach
Transceiver, SFP, 1000BASE-T Transceiver, SFP, 1000BASE-SX, 850nm wavelength, up to 550m reach Transceiver, SFP, 1000BASE-LX, 1310nm wavelength, up to 10km reach Transceiver, SFP, 1000BASE-ZX, 1550nm wavelength, up to 80km reach Transceiver, SFP+, 10GbE, LRM, 1310nm wavelength, up to 220m reach Transceiver, SFP+, 10GbE, SR, 850nm wavelength, up to 300m reach Transceiver, SFP+, 10GbE, LR, 1310nm wavelength, up to 10km reach Transceiver, SFP+, 10GbE, ER, 1550nm wavelength, up to 40km reach |
| Cables (optional) |
Stacking cable 0.25m, 1m and 3m
Dell EMC Networking cable, SFP+ to SFP+, 10GbE, copper twinax direct attach cable, 0.5m, 1m, 3m, 5m and 7m |
