Quick Details
-
Name:
-
volumetric water meter
-
Color:
-
Blue
-
Material:
-
Brass
-
Reed switch option:
-
1 liter 1 pulse/10 lites 1 pulse
-
Size:
-
DN15~DN50
-
Standard:
-
ClassB
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
XINGYUAN
-
Model Number:
-

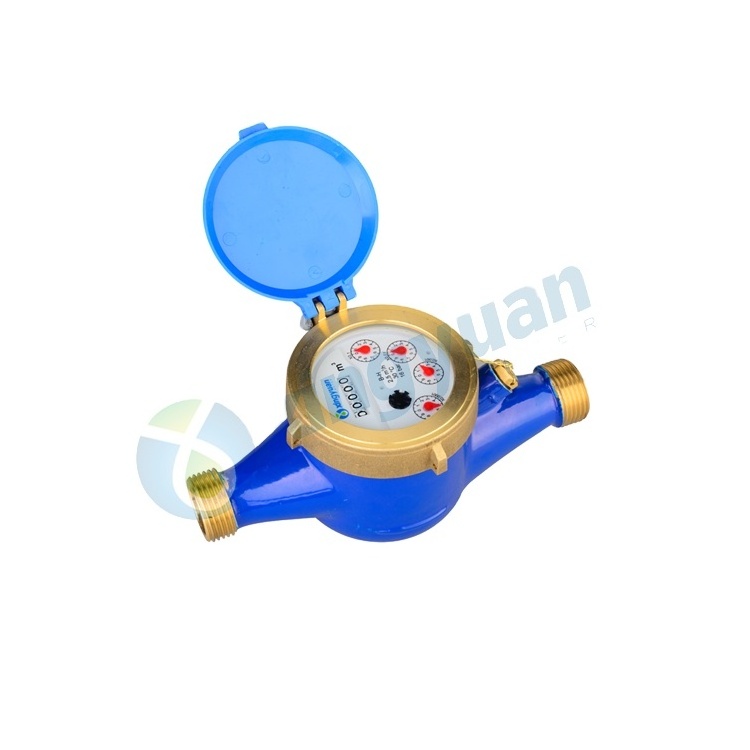

LXSC-E1 Multi jet semi dry water meter
-
Name:
-
volumetric water meter
-
Color:
-
Blue
-
Material:
-
Brass
-
Reed switch option:
-
1 liter 1 pulse/10 lites 1 pulse
-
Size:
-
DN15~DN50
-
Standard:
-
ClassB
Competitive Price Custom Design wet type single-jet water meter
| INDICATION | Cubic meter(m³) and U.S gallon(USG) for selecting. | |
| WORKING CONDITIONS | Cold Water meter | ≤40 °C |
| Hot water meter | ≤90 °C | |
| REED SWITCH OPTION | 1 liter 1 pulse | |
| 10 liters 1 pulse | ||
| Nominal diameter | DN | 15 | 20 | 25 |
32 |
40 | 50 |
| Body Thread | D | G3/4B | G1B | G1 1/4B | G1 1/2B | G2B | G2 1/2B |
| Connector Thread | d | R1/2 | R3/4 | R1 | R1 1/4 | R1 1/2 | R2 |
| Body Length(mm) | L | 165 | 190 | 225/260 | 230/260 | 245/300 | 300 |
| Overall Lehgth(mm) | L1 | 259 | 294 | 345/380 | 354/384 | 376/431 | 448 |
| Width(mm) | W | 94 | 94 | 98 | 98 | 122 | 145 |
| Meter Height(mm) | H | 107.5 | 107.5 | 117.5 | 117.5 | 141.5 | 177 |
| Working Height(mm) | H1 | 191 | 191 | 206.5 | 06.5 | 256.5 | 292 |
| Weight without connectors Kg | 1.5 | 1.6 | 2.2/2.4 | 2.7/2.9 | 4.8/5.1 | 8.5 | |
| Weight with connectors Kg | 1.68 | 1.88 | 2.72/2.92 | 3.497/3.69 | 5.84/6.14 | 11.5 | |
| Q/DN | 15 | 20 | 25 | 32 | 40 | 50 | |
|
Q 4=1.25 Q 3 |
1/h | 3125 | 5000 | 7875 | 12500 | 20000 | 31250 |
|
Q 3 |
2500 | 4000 | 6300 | 10000 | 16000 | 25000 | |
|
R= Q 3 / Q 1 |
160 | 160 | |||||
|
Q 2 =1.6 Q 1 |
1/h | 25 | 40 | ||||
| Q 1 | 15.625 | 25 | |||||
| R= Q 3 / Q 1 | 80 | 80 | 80 | 80 | 80 | 80 | |
| Q 2 =1.6 Q 1 | 1/h | 50 | 80 | 126 | 200 | 320 | 500 |
| Q 1 | 31.25 | 50 | 78.75 | 125 | 200 | 312.5 | |
| Pressure Loss Group At Q 4 | Bar | 1 | |||||
| Maximun Admissible Pressure | Bar | 16 | |||||
| Testing Pressure | Bar | 25 | |||||
| Minimun Scale Interval | L | 0.5 | |||||
| Max. Reading | 99999.9999 | ||||||
Main Techncial Data-1 Techncial Date Conforms To ISO 4064 Class B Standard
| Nominal Diameter | DN | 15 | 20 | 25 | 32 | 40 | 50 |
| Maximun Flow Rate m 2 /h | Qmax | 3.0 | 5.0 | 7.0 | 12.0 | 20.0 | 30.0 |
| Nominal Flow Rate m 2 /h | Qn | 1.5 | 2.5 | 3.5 | 6.0 | 10.0 | 15.0 |
| Transition Flow Rate l /h | Qt | 120 | 200 | 280 | 480 | 800 | 1200 |
| Minimun Flow Rate l /h | Qmin | 30 | 50 | 70 | 120 | 200 | 300 |
Maximum permissible error:
* In the lower zone from Qmin inclusive up to but excluding Qt is ±5%
* In the upper zone from Qt inclusive up to and excluding Qmax is ±2%
