Quick Details
-
Weight:
-
14 KG, 3.3-100KG
-
Dimension(L*W*H):
-
610*5*97MM
-
Core Components:
-
Other
-
Diameter:
-
12-46''
-
thickness:
-
3.5-12mm
-
material:
-
65Mn,60Si2Mn,30MnB5
-
hardness:
-
38-45HRC
-
Function:
-
for the disc harrow, disc plough
-
Working depth:
-
10-25cm
-
MOQ:
-
100pcs
-
Size:
-
Custom Size
-
shape:
-
Smooth, notch, wavy
Quick Details
-
Use:
-
farm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
CHENS-LIFT
-
Weight:
-
14 KG, 3.3-100KG
-
Dimension(L*W*H):
-
610*5*97MM
-
Core Components:
-
Other
-
Diameter:
-
12-46''
-
thickness:
-
3.5-12mm
-
material:
-
65Mn,60Si2Mn,30MnB5
-
hardness:
-
38-45HRC
-
Function:
-
for the disc harrow, disc plough
-
Working depth:
-
10-25cm
-
MOQ:
-
100pcs
-
Size:
-
Custom Size
-
shape:
-
Smooth, notch, wavy

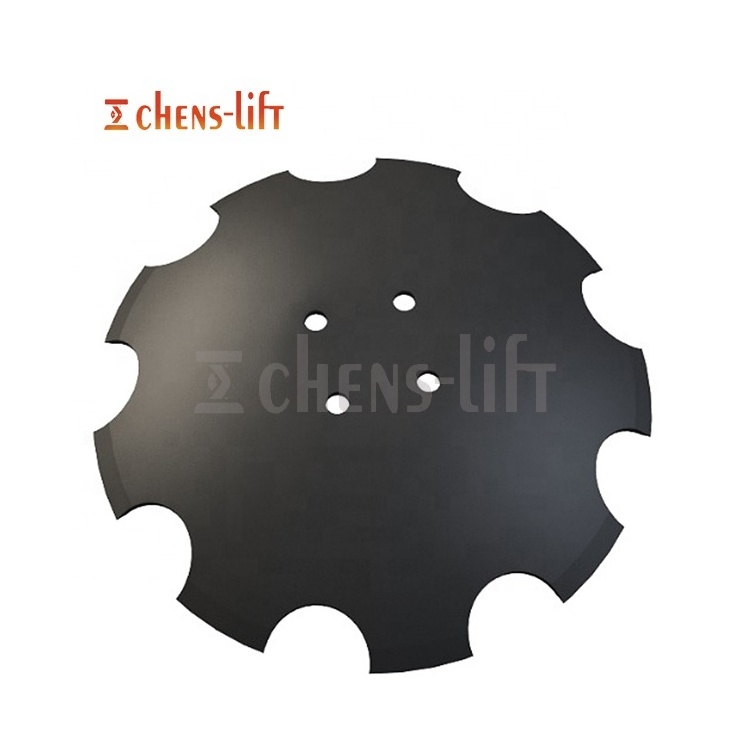

660x6mm Plough And Harrow Disc Blade
Product Details
Disc harrow plow blades are made of carbon steel and boron steel, and Angang Steel is used as raw material. According to different
materials, the ideal hardness value can be achieved after different heat treatment processes. The hardness of 65Mn manganese steel
is 38-45HRC, and the hardness of 28-30MnB is 47-53HRC.
The diameter range that can be produced is 12inch-46inch, and the thickness is 3mm-12mm. The shape is notched, disc, flat,
corrugated and so on. If you need a new type, we can also produce according to your drawings or samples.
The monthly output is 5000-8000 pieces. We provide OEM customization for customers all over the world.
materials, the ideal hardness value can be achieved after different heat treatment processes. The hardness of 65Mn manganese steel
is 38-45HRC, and the hardness of 28-30MnB is 47-53HRC.
The diameter range that can be produced is 12inch-46inch, and the thickness is 3mm-12mm. The shape is notched, disc, flat,
corrugated and so on. If you need a new type, we can also produce according to your drawings or samples.
The monthly output is 5000-8000 pieces. We provide OEM customization for customers all over the world.
|
Diameter
|
|
Dimension
|
Thickness
|
|
|
mm
|
inch
|
mm
|
mm
|
|
|
305
|
12
|
19
|
3
|
|
|
330
|
13
|
25
|
3
|
|
|
355
|
14
|
38
|
3,4,5
|
|
|
410
|
15
|
38-50
|
3,4,5
|
|
|
430
|
17
|
57
|
3,4,5
|
|
|
460
|
18
|
38-60
|
3,4,5,6
|
|
|
480
|
19
|
57
|
3,4,5,6
|
|
|
510
|
20
|
44-63
|
3,4,5,6
|
|
|
535
|
21
|
63
|
3,4,5,6
|
|
|
560
|
22
|
60-85
|
4,5,6
|
|
|
585
|
23
|
75-90
|
4,5,6
|
|
|
610
|
24
|
75-95
|
4,5,6
|
|
|
660
|
26
|
86-115
|
5,6,7,8
|
|
|
710
|
28
|
100-130
|
5,6,7,8
|
|
|
760
|
30
|
120-135
|
6,7,8,10,12
|
|
|
810
|
32
|
120-140
|
8,10,12
|
|
