Quick Details
-
panel size:
-
4x4x4mm or 6x6x6mm or 8x8x8mm
-
material:
-
can be metal or plastic
-
taps:
-
can insert one or used for PCB board.
-
Color:
-
Black,silver tone, white
-
Certification:
-
ROHS SGS ISO9001/14001
-
Current:
-
50mA
-
Voltage:
-
12V
-
Action Type:
-
Momentary
-
Mounting Type:
-
Through Hole
-
Material::
-
Plastic, Metal, Electric Parts
Quick Details
-
Protection Level:
-
IP40
-
Max. Current:
-
50mA
-
Max. Voltage:
-
12Vdc
-
panel size:
-
4x4x4mm or 6x6x6mm or 8x8x8mm
-
material:
-
can be metal or plastic
-
taps:
-
can insert one or used for PCB board.
-
Color:
-
Black,silver tone, white
-
Certification:
-
ROHS SGS ISO9001/14001
-
Current:
-
50mA
-
Voltage:
-
12V
-
Action Type:
-
Momentary
-
Mounting Type:
-
Through Hole
-
Material::
-
Plastic, Metal, Electric Parts

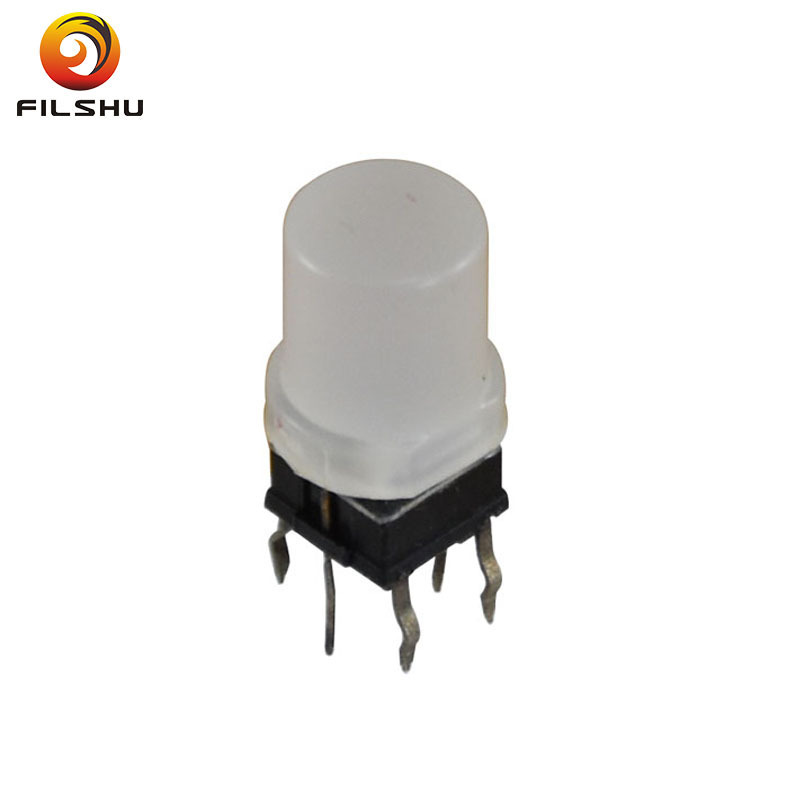

PCB Mounted Illuminated Tactile Tact Switch With Blue Led Light Inside
Specification :
Tact Switch or Mini push button switch
1.UL,VDE, RoHS approved..ISO9001:2008;
2. 50mA,12DC;
Waterproof function;
3.Can be used for electrical toys ,PCBs,ETC. with different dimensions .
SWITCH SPECIFICATIONS
|
SPECIFICATIONS |
|
|
Rating |
12VDC 50mA |
|
Insulation Resistance |
100M Ω Min(250VDC) |
|
Dielectric Strength |
250VAC 50/60HZ for 1 min |
|
Contact Resistance |
100m Ω Max |
|
Electrically Life |
100,000cycles |
|
Operating Temperature Range |
-20 °C~+70°C |
|
Operating Force |
160 ± 50g/250 ± 50g |
|
Travel |
0.25 ± 0.1mm |
LED SPECIFICATIONS
|
Color |
VR |
IF |
Recommended Operating Current |
VF |
|
|
Nom. |
Max. |
||||
|
Red |
DC5V |
20mA |
20mA |
2.0 V |
2.4 V |
|
Yellow |
DC5V |
20mA |
20mA |
2.3 V |
2.5 V |
|
Green |
DC5V |
20mA |
20mA |
2.4 V |
2.7 V |
|
Blue |
DC5V |
20mA |
20mA |
3.3 V |
3.6 V |
|
white |
DC5V |
20mA |
20mA |
3.0 V |
3.6 V |
|
Full Green |
DC5V |
20mA |
20mA |
3.0 V |
3.6 V |
|
Amber |
DC5V |
20mA |
20mA |
2.3 V |
2.5 V |
1. Packaging : Cartons and plastic bags,depends on the customer's demand
2. Shipment : Shipping worldwidely by sea, air or Express (small quantity) like EMS,UPS,FedEx,DHL
1. Quality guaranteed : Special supervision team control quality.
2. After service guaranteed : Assure you the best services at all times.
3. Delivery time: Your shipment will be loaded in 10-30 days,depends on quantity.
4. Payment terms : T/T,PayPal,Credit card
5. OEM & ODM are available.
