Quick Details
-
Rolling thinckness:
-
0.6-0.8mm
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
XHH
-
Voltage:
-
380V/50HZ/3PH
-
Dimension(L*W*H):
-
1600*900*2000mm
-
Weight:
-
1600 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Forming Steps:
-
4steps
-
Curving Speed:
-
8-16m/min
-
Curved Thickness for Steel Roof:
-
0.6-0.8mm
-
Curved Thickness for Aluminum Roof:
-
0.6-1.0mm
Quick Details
-
Type:
-
Arching Machine
-
Tile Type:
-
Colored Glaze Steel
-
Production Capacity:
-
20 Sets/Month
-
Rolling thinckness:
-
0.6-0.8mm
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
XHH
-
Voltage:
-
380V/50HZ/3PH
-
Dimension(L*W*H):
-
1600*900*2000mm
-
Weight:
-
1600 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Forming Steps:
-
4steps
-
Curving Speed:
-
8-16m/min
-
Curved Thickness for Steel Roof:
-
0.6-0.8mm
-
Curved Thickness for Aluminum Roof:
-
0.6-1.0mm
Focus on roll forming machine for more than
19
years
Factory
Lifetime Service
CE
Certificate
Best
Quality：
select all best material for roller,shaft,cutter,PLC and driving system
Customized
Profile：
can design the profile according to customer request
Main Products
Products Description

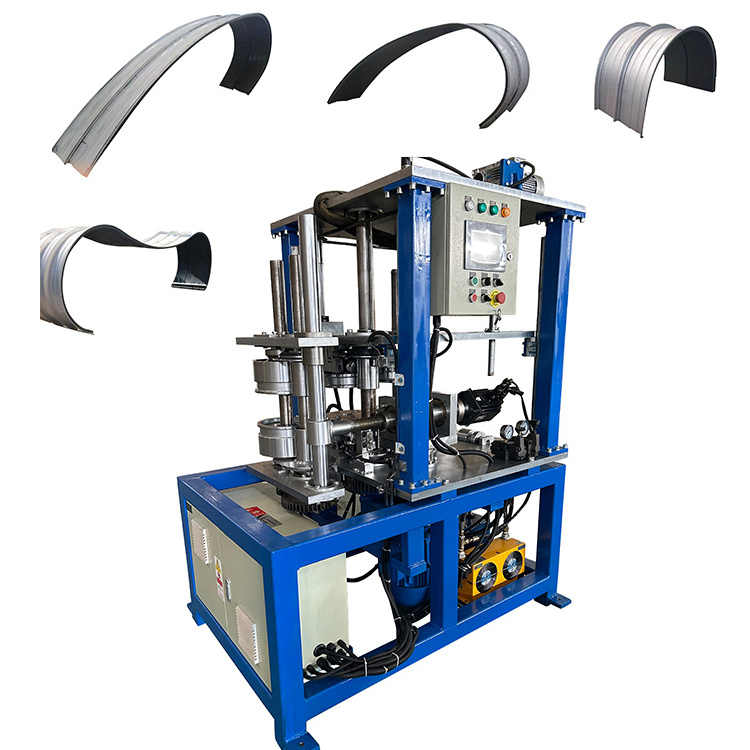

Feature:
1. Bending Min. Radius: positive curved 4m, oppositive curved 6m
2. Main usage: Bending roofing to Arc-Shaped, andwave shaped( Can bend with convex and concave shape for one pcs roofing );
3. Can automatically bending variable width of roofing from 300mm to 600mm;
4. Can curved convex and concave with smooth, and adjust any models from 300mm to 600mm of standing seam roofing
5. Usage: Bending standing seam sheets roofing panels to ARC-shaped; Bending panel is true of gym,theatre hall,railway station and so on.
2. Main usage: Bending roofing to Arc-Shaped, andwave shaped( Can bend with convex and concave shape for one pcs roofing );
3. Can automatically bending variable width of roofing from 300mm to 600mm;
4. Can curved convex and concave with smooth, and adjust any models from 300mm to 600mm of standing seam roofing
5. Usage: Bending standing seam sheets roofing panels to ARC-shaped; Bending panel is true of gym,theatre hall,railway station and so on.
|
Main Technical Data：
|
|
|
|
Dimension
|
1600*900*2000mm
|
|
|
Weight
|
1600KGS
|
|
|
Voltage
|
380V/50HZ/3PH
|
|
|
Motor Power
|
4KW
|
|
|
Forming Steps
|
4steps
|
|
|
Curving Speed
|
8-16m/min
|
|
|
Curved Thickness for Steel Roof
|
0.6-0.8mm
|
|
|
Curved Thickness for Aluminum Roof
|
0.6-1.0mm
|
|
|
Max. Width of Tapered Roofing to Curved
|
500mm
|
|
|
Min. Width of Tapered Roofing to Curved
|
250mm
|
|
|
Min. Curved Radius for Tapered Roofings
|
Convex Curved 10 meters, Concave Curved 12 meters
|
|
|
Min. Curved Radius for Steel Roofings
|
Convex Curved 8 meters, Concave Curved 10 meters
|
|
|
Min. Curved Radius for Aluminum Roofings
|
Convex Curved 4 meters, Concave Curved 6 meters
|
|
|
Material of principal axis
|
high grade 45# forged steel
|
|
|
Material of roller
|
45#steel with hard chrome plating
|
|
|
Material for frame of machine
|
Fine welded structural steel
|
|
Main Accessories:
(1) Main CNC Plate Curving Machine;
(2) PLC Computer Controlling System With Touching screen;
(3) Protective Steel Case.
(2) PLC Computer Controlling System With Touching screen;
(3) Protective Steel Case.
Product Application:
Can not find the machine you need?
Why not customize it!
We have engineers with experience more than 17 years!
The configuration is not unique, we will provide you with customized services.
Standing Seam Roofing Machine Overview
Min. Curving Radius 1M
Fixed in 20 FT Container
Straight and Tapered Profile Together in One Machine
