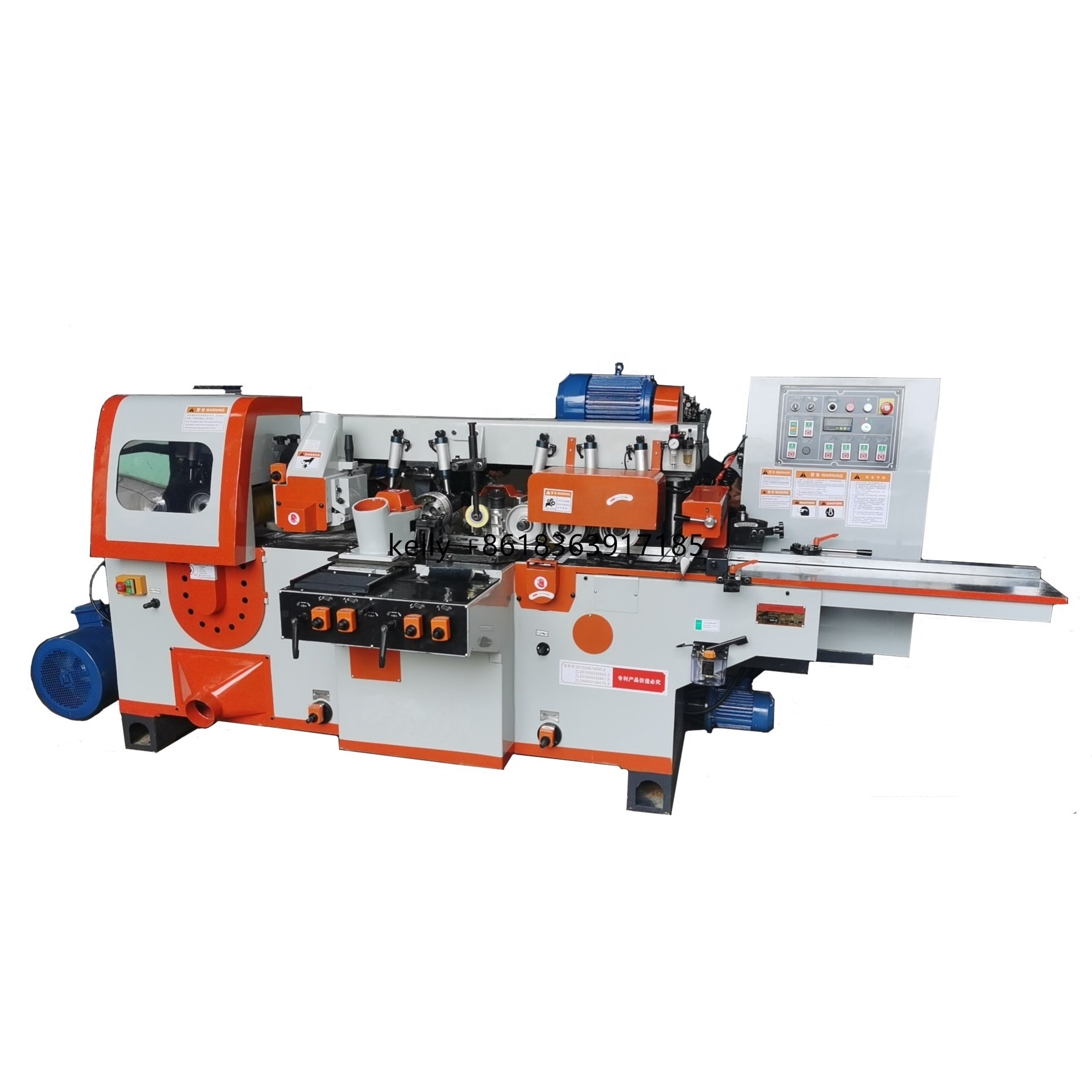

Four Side Moulder Woodworking Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $7000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Shandong, China

Brand Name:: QDZD

Voltage:: 380 V/220 V

Dimension(L*W*H):: 2500*1400*1500mm

Weight (KG):: 3000 KG

Power (kW):: 15 kW

Product Name:: Four Side Moulder

Function:: Planing Wood Surface Smooth

Keywords:: 4 Side Planer

Machine type:: Auotmatic

Spindle speed:: 5600r/min

Max working width:: 630mm

Work thickness:: 8-160mm

Feeding speed:: 10-35m/ Min Frequency

Model no:: MB4023D

Advantage:: High Effeciency

Quick Details

Max.Planing Depth(mm):: 7 mm

Max.Planing Width(mm):: 630

Marketing Type:: Hot Product

Place of Origin:: Shandong, China

Brand Name:: QDZD

Voltage:: 380 V/220 V

Dimension(L*W*H):: 2500*1400*1500mm

Weight (KG):: 3000 KG

Power (kW):: 15 kW

Product Name:: Four Side Moulder

Function:: Planing Wood Surface Smooth

Keywords:: 4 Side Planer

Machine type:: Auotmatic

Spindle speed:: 5600r/min

Max working width:: 630mm

Work thickness:: 8-160mm

Feeding speed:: 10-35m/ Min Frequency

Model no:: MB4023D

Advantage:: High Effeciency

Qingdao zhongding machinery which is a factory and company specializing of manufacture and exportation, has more than 15 years experience in woodworking machines.

Our products include panel saw machine, edge banding machine, drilling machine, press machine etc.

Welcome to visit our factory in Qingdao

Product Description

Specification

Model	MB4023
Max processing width	20-230mm
Working thickness	8-125mm
Feeding speed	7-28m/min
Main spindle diameter	40mm
First bottom spindle power	2.2kw
Right vertical spindle power	2.2kw
Left vertical spindle power	2.2kw
First top spindle power	4kw
Second bottom spindle power	4kw
Beam lifting power	0.37KW
Main spindle speed	6000r/min
Total power	36.25kw

Details of machine

Exhibition

Certifications

Packing & Delivery

Our sevice

(1)Pre-sale services:

* Provide the free consultation of the equipment .
* Provide the standard device and the flow chart.
* According to the clients' special requirement, offering the reasonable plan and free design helping to
select the equipment.
* Welcome to visit our factory.

2)Services during the sales:

* Inspect the machine before leaving the factory.
* Oversea install and debug the equipment.
* Train the first-line operator.

(3)After sale services:

* 24 hours online service.
* Provide the video of Installation .
* Provide technical exchanging
* Provide free accessories within warranty not including the human damage
