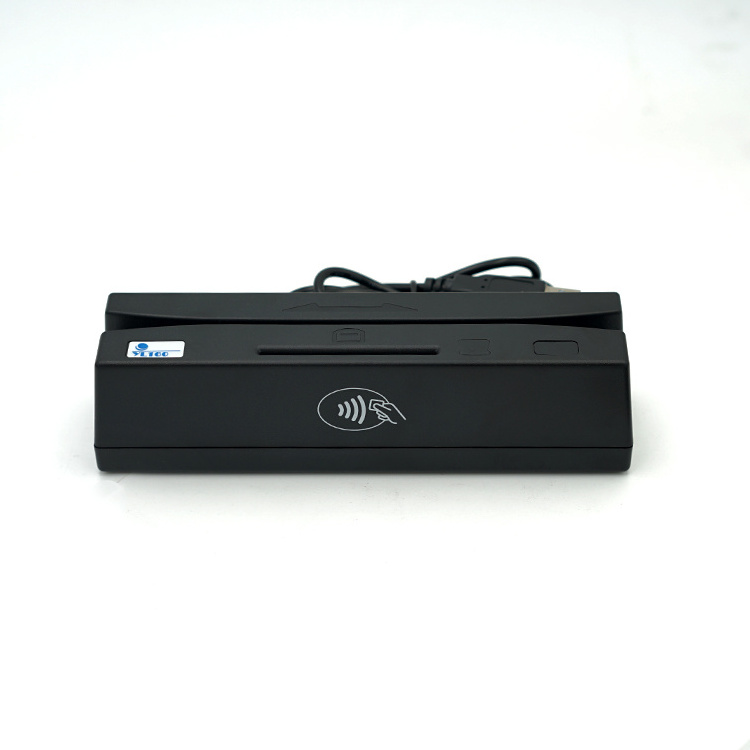

Rfid Contactless NFC Chip Card Reader Module Cloning Machine

Rfid Contactless NFC Chip Card Reader Module Cloning Machine

FOB Reference Price: Get Latest Price

≥10 Pieces

US $40

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: DEFTUN

Name:: MSR160

Size:: 160mmL *45mmW* 45mmH

Function:: Magnetic Stripe Reader + IC Chip Card / RFID Card/PSAM card

Weight:: 180g

Material:: ABS

Color:: Black

Power Supply:: 100 mW

IC card:: Read and Write

RFID:: Read and Write

Magnetic card:: Read Only

Quick Details

Frequency:: 13.56Mhz

Protocol:: ISO 14443A

Place of Origin:: Guangdong, China

Brand Name:: DEFTUN

Name:: MSR160

Size:: 160mmL *45mmW* 45mmH

Function:: Magnetic Stripe Reader + IC Chip Card / RFID Card/PSAM card

Weight:: 180g

Material:: ABS

Color:: Black

Power Supply:: 100 mW

IC card:: Read and Write

RFID:: Read and Write

Magnetic card:: Read Only

Product Description

Product Name	MSR 160
Certificate	EMV Level 1&L2
SDK	YES
Weight	180g
Support card type	Mag stripe & emv ic chip & psam &RFID
Interface	USB
Support android	YES
Application	axation, banking stored value, query management system

4-in-1 card reader writer

EMV certified
support magnetic/ic,emv chips/RFID/PSAM

Product Description

* Long Service Life Magnetic Head
* 100% Quality Confirmed 12 months Factory Warranty
* Can read&write a variety of memory card and supports T = 0 and T = 1 communication protocol CPU card
* Support the function of the SAM card operation
* Use USB to communication with PC
* Provide many development platform interface function and application example
* Cards supported ISO 7811,AMMVA,CADMV
* rfid is 13.56 M Hz

Tenchnical Specification

Magnetic card	Read only
Selectable tracks	yes
Read card	1/2/3tracks
Swipe	Double direction
Head life	Approx 500,000 passes
Parity and LRC checking	Built-in, audible and LED good read and error indicator
Cards supported	ISO 7811,AMMVA,CADMV
RFID card	Read and Write
Operating Frequency	13.56 MHz
Smart Card Interface	ISO14443-A, Mifare
Sensing Distance	About 0-5cm
Programmable sound	ON or OFF
Cards supported	ISO14443A,MifareOneS50,MifareOneS70,MF3 DESFIRE, Ultralight、 ISO14443B 、SONY felica
PSAM card	Read and Write
Head life	Approx 200,000 passes
Communications	USB
Cards supported	ISO 7816-3
operating system	Win7, Win 2008 ,Vista, Win 2003, Win 2000, XP, Linux
IC Card	Read and Write
Cards supported	AT24C01A/24C02/24C04/24C08/24C16/AT24C64，SLE4432/4442，SLE4418/4428， ISSI 24C01A/16,ISO7816-(1-4) (T=1, T=0)
Communications	USB2.0、USB-OTG（Android 3.1 above）
Swipe speed	3 ~ 60 inches per second
Maximum power consumption	100 mW
Temperature	Commercial-grade:-20°∼ 60 °C Industrial-grade:-20°∼ 60 °C
Humidity	90% non- condensing
Anti-static interference	15KV
Magnetic interference resistance	19Oersted

Product Usage

Feature

• It is widely used in industry and commerce, telecommunications, taxation, banking, insurance, health care and a variety of charges, stored value, query management system.

• Compatibility:100% compatible MSR206 instruction set

• Standards: Accord with ISO, AAMVA DMV user-defined format

• type: all kinds of memory CARDS and T = 0, T = 1 communication protocol of CPU card Support the multi-function PSAM card operation
