Quick Details
-
Rolling thinckness:
-
0.8-3mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Abena
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
9500*1300*1800mm
-
Weight:
-
10 kg
-
Feeding width:
-
Other
-
Marketing Type:
-
new product 2022
-
Product name:
-
purlin roll forming machine
-
Raw material:
-
Steel Coil GI PPGI
-
Cutting blade material:
-
Cr12 Mould Steel
-
Shaft material:
-
High Grade No.45 Steel
-
Control system:
-
PLC(detla) System
-
Certification:
-
CE ISO
-
Main frame:
-
Steel Plate Welded
-
Roller stations:
-
16Stations
-
Decoiler:
-
5T Decoiler
-
Roller material:
-
High Grade 45# Steel
Quick Details
-
Type:
-
purlin roll forming machine
-
Tile Type:
-
Steel
-
Production Capacity:
-
15 m/min
-
Rolling thinckness:
-
0.8-3mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Abena
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
9500*1300*1800mm
-
Weight:
-
10 kg
-
Feeding width:
-
Other
-
Marketing Type:
-
new product 2022
-
Product name:
-
purlin roll forming machine
-
Raw material:
-
Steel Coil GI PPGI
-
Cutting blade material:
-
Cr12 Mould Steel
-
Shaft material:
-
High Grade No.45 Steel
-
Control system:
-
PLC(detla) System
-
Certification:
-
CE ISO
-
Main frame:
-
Steel Plate Welded
-
Roller stations:
-
16Stations
-
Decoiler:
-
5T Decoiler
-
Roller material:
-
High Grade 45# Steel
Product Overview

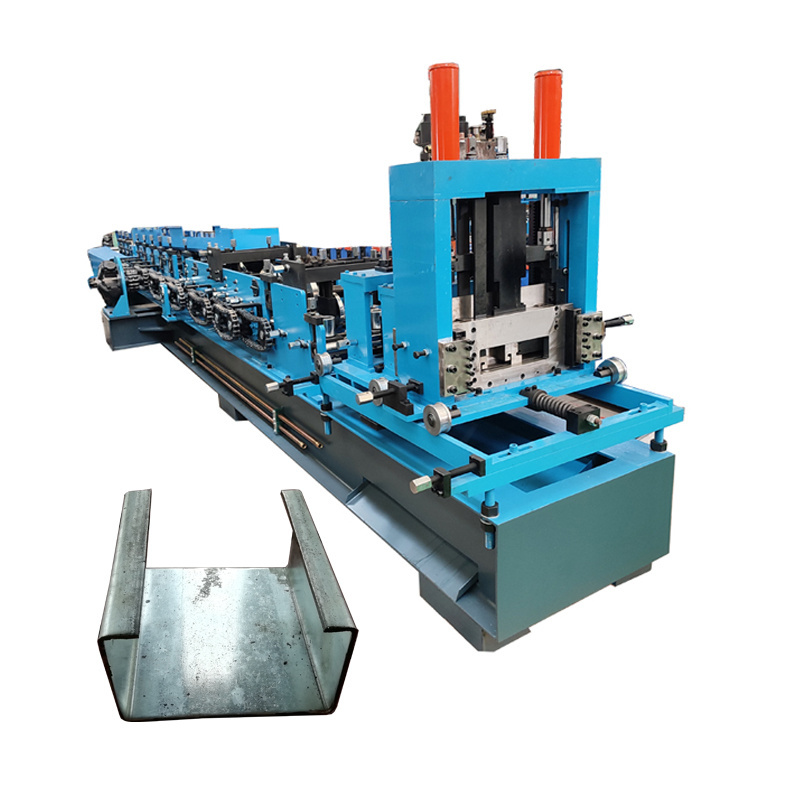

Automatic changeable c u z roof purline roll forming machine
|
No
|
TYPE
|
Data
|
SPECIFICATION
|
|
||
|
1
|
Raw material
|
material
|
PPGI GI
|
|
||
|
2
|
Bucket capacity
|
Feeding width
|
as drawing
|
|
||
|
3
|
Operating weight
|
thickness
|
0.8-3.0mm
|
|
||
|
2
|
Decoiler
|
operate
|
automatic
|
|
||
|
5
|
Max. breakout force
|
weight capacity
|
5ton
|
|
||
|
3
|
Roll forming machine
|
roller station
|
16-18
|
|
||
|
|
|
Diameter of shaft
|
85mm
|
|
||
|
|
|
Roller material
|
45# with 0.05mm chrome
|
|
||
|
|
|
Frame
|
400 H beam
|
|
||
|
|
|
Frame thickness
|
20mm
|
|
||
|
|
|
Cutting Material
|
Cr 15
|
|
||
|
|
|
Operation
|
automatic cutting
|
|
||
|
|
|
Working speed
|
15-20m/minute
|
|
||
|
|
Power
|
Driving way
|
2inch chain
|
|
||
|
|
|
Main motor
|
22kw
|
|
||
|
|
|
Voltage
|
380v 50hz
|
|
||
|
|
|
Electric box
|
PLC control system, inventer
|
|
||
|
|
|
PLC brand
|
delta
|
|
||
|
|
|
Inverter brand
|
delta
|
|
||
|
|
|
Language
|
chinese and english
|
|
||
Detail image
Decoiler
Loading capacity: 3tons
Hydraulic cutting
Controlled by oil pump
Automatic cutting as target products length Blade material: Cr12, quenching treatment
Automatic cutting as target products length Blade material: Cr12, quenching treatment
Roll forming body
Roller surfaces polish, hard plating dealing Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped
computer control system
Button press and screen touch operate Target piece`s length is adjustable Work automatically The system operate easily
Pump station
Hydraulic oil into the hydraulic oil tank, the pump drives the cutter work
Hydraulic oil: 46#
Oil add capacity: oil add 3/4 of box capacity Oil pressure: 8-10 MPa
Hydraulic oil: 46#
Oil add capacity: oil add 3/4 of box capacity Oil pressure: 8-10 MPa
