Quick Details
-
Power:
-
Accordingly
-
Dimension(L*W*H):
-
6200x2200X2800
-
Weight:
-
10000 kg
-
Product name:
-

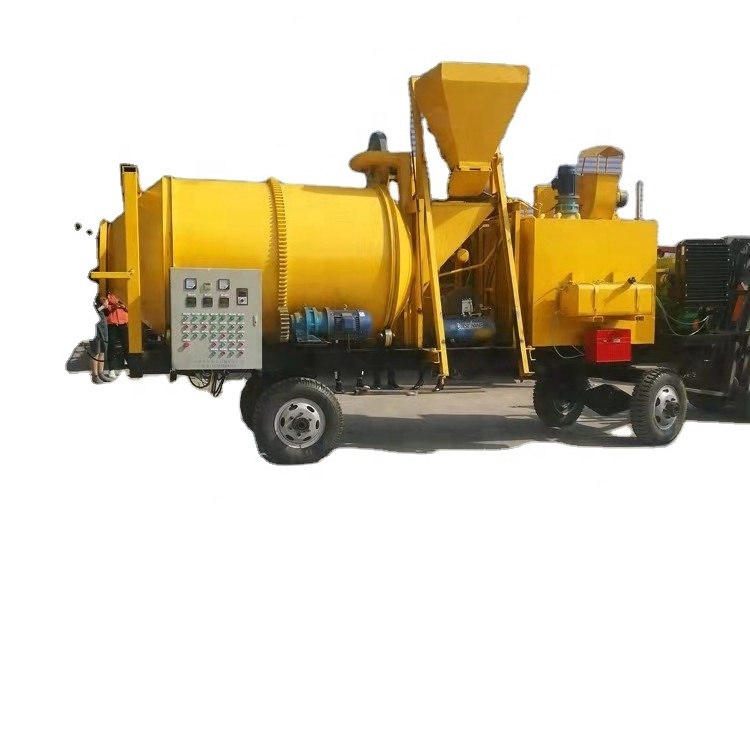

Mobile asphalt mixing plant
-
Productivity:
-
6-15t/h
-
Diesel generator:
-
30KW
-
Mixing time:
-
10-15min/batch
-
Mixing capacity:
-
1~3t per batch
-
Drum material:
-
Double manganese plate
-
Bitumen tank:
-
700L
-
Color:
-
Customized
-
Certification:
-
CE ISO
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
CINA CHARM
-
Voltage:
-
Accordingly, According to requirement
-
Power:
-
Accordingly
-
Dimension(L*W*H):
-
6200x2200X2800
-
Weight:
-
10000 kg
-
Product name:
-
Mobile asphalt mixing plant
-
Productivity:
-
6-15t/h
-
Diesel generator:
-
30KW
-
Mixing time:
-
10-15min/batch
-
Mixing capacity:
-
1~3t per batch
-
Drum material:
-
Double manganese plate
-
Bitumen tank:
-
700L
-
Color:
-
Customized
-
Certification:
-
CE ISO
Product Description
Asphalt road repair colored asphalt hot recycling mixing equipment vehicle-mounted mobile asphalt mixing machine
The asphalt mixing plant consists of batching system,drying system,fuel system,vibrating screen,heated materials storage bin,weighing system,feeding system,finding system,finished bin and control system.It can be used to produce asphalt mixture,modified asphalt mixture,colorful asphalt and so on,which has been widely used at construction of highways,municipal roads,airports and ports.
Technical Parameters
|
Model
|
Mobile Asphalt Plant
|
|
Mobile asphalt plant productivity
|
8-10t/h
|
|
Mixing drum volume
|
3.6m3
|
|
Mixing drum material
|
Double layer manganese steel 5mm thickness
|
|
Mixing motor power
|
5KW
|
|
Lifting motor power
|
3KW
|
|
Main Burner
|
440,000 Kcal burner
|
|
Heating method
|
Diesel Burner Heating
|
|
Feeding hopper
|
0.45m3
|
|
Bitumen tank
|
0.7m3
|
|
Conduct oil tank
|
170L
|
|
Rock wool thickness
|
50mm
|
|
Hot Melt Kettle
|
4 layers, each layer 5mm thickness
|
|
WEIFANG
|
30KW
|
|
Overall Size(LxWxH)
|
6200x2200X2800mm
|
https://www.alibaba.com/product-detail/Asphalt-road-repair-colored-asphalt-hot_1600221773836.html?spm=a2747.manage.0.0.217471d2tm5WgS
Specification
|
item
|
value
|
|
Applicable Industries
|
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Energy & Mining
|
|
Showroom Location
|
Germany, Viet Nam, Philippines, Indonesia, Thailand, Sri Lanka
|
|
Video outgoing-inspection
|
Provided
|
|
Machinery Test Report
|
Provided
|
|
Marketing Type
|
Ordinary Product
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
|
|
Condition
|
New
|
|
Place of Origin
|
Henan，China
|
|
Brand Name
|
CINACHARM
|
|
Voltage
|
Accordingly
|
|
Power
|
Accordingly
|
|
Weight
|
10000kg
|
|
Warranty
|
1 Year
|
|
UNIQUE SELLING POINT
|
High operating efficiency
|
|
Product name
|
Mobile asphalt mixing plant
|
|
Productivity
|
6-15t/h
|
|
Diesel generator
|
30KW
|
|
Mixing time
|
10-15min/batch
|
|
Mixing capacity
|
1~3t per batch
|
|
Drum material
|
Double manganese plate
|
|
Bitumen tank
|
700L
|
|
Voltage
|
According to requirement
|
|
Color
|
Customized
|
|
Certification
|
CE ISO
|
COMPANY INFORMATION
Zhengzhou Changli Machinery Manufacturing Co., Ltd
.
was established in
1982
.
We are a comprehensive group corporation combining the design, production and sales, located in the "Construction Machinery Base" - Xingyang, Zhengzhou City. With more than 20 years' development, Zhengzhou Changli has become one of the leading professional manufacturers and exporters of construction machinery in China.
Till now, our factory area has reached 120,000 sqm with about 1,000 people, including engineers, workers, salesmen, and service staff.
Our main products
are concrete mixing/batching plants, stabilized soil mixing stations, concrete batching machines, concrete mixers, concrete pumps, concrete mixing trucks, concrete block making machines, dry-mix mortar production lines, asphalt mixing plants, tower cranes, wheel loaders, cement silos, screw conveyors and other construction machinery.
We are ISO9001:2000 certified.
At present, our products are popular at home and abroad. Holding
"High Quality Products and Honest Operation"
as our tenet, we have developed international markets very well, such as Russia, Southeast Asia, Central Asia, the Middle East, South Africa, America, etc., totaling more than twenty countries and regions.
CUSTOMERS FEEDBACK
CERTIFICATIONS
CUSTOMER VISITING
OUR SERVICE
|
Delivery Time
|
3-5 days after receiving advance payment.
|
|
Warranty Pewriod
|
15 months after delivery from factory,12 months after installation.
|
|
Technical Support
|
We will send two engineers(two engineers excluding interpreter,one for machinery and the other for electricity) to guide installation.
|
|
Respond Promptly
|
We will online 24 hours,and reply you as soon as possible.
|
|
Sale Service
|
Door to door installation,on-site training operation technology,user training mechanical and electrical maintenance personnel free of charge.
|
