Quick Details
-
item:
-
fire fighting tank chassis
-
maximum load:
-
200-800kgs
-
size:
-
can be made to order
-
Material:
-
Natural Rubber
-
Delivery time:
-
30days
-
Color:
-
Black
-
MOQ:
-
1 PCS/SET
-
Package:
-
Wooden Case Packing
-
Apply to:
-
robot
Quick Details
-
Marketing Type:
-
New Product 2024
-
Place of Origin:
-
China
-
Brand Name:
-
HMJ
-
item:
-
fire fighting tank chassis
-
maximum load:
-
200-800kgs
-
size:
-
can be made to order
-
Material:
-
Natural Rubber
-
Delivery time:
-
30days
-
Color:
-
Black
-
MOQ:
-
1 PCS/SET
-
Package:
-
Wooden Case Packing
-
Apply to:
-
robot

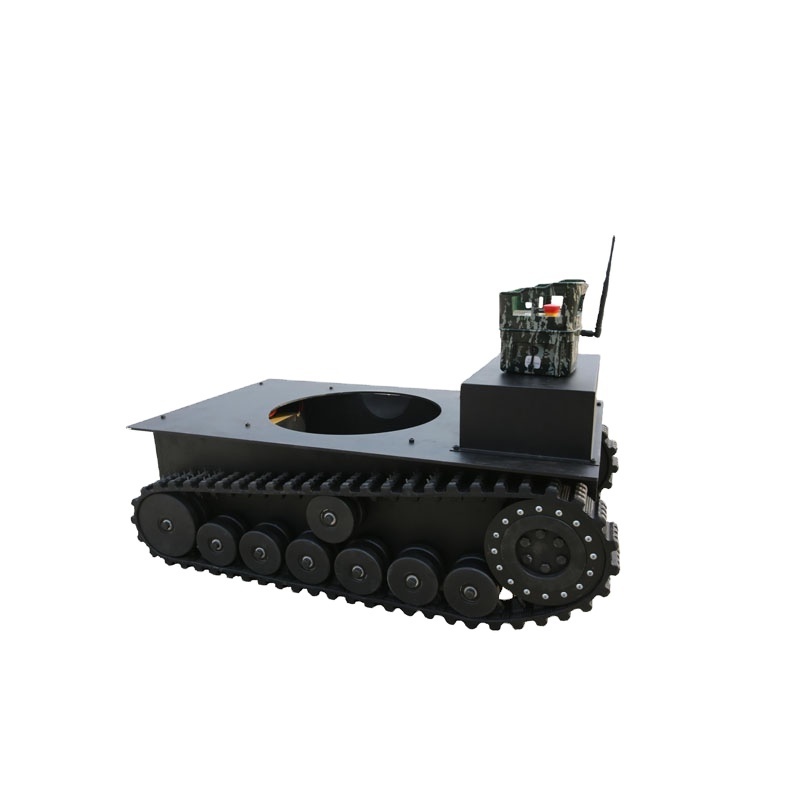

75kgs payload remote control rubber tracked robot tank chassis for fire fighting robot
We have various models of tank chassis ,More models please feel free to contact us .
Wireless remote control micro-crawler chassis, chassis with 48V,800w dual motor, wireless remote control can be achieved, remote control range of 500 meters. Double motor drive can achieve the track side of the forward rotation in order to achieve the chassis steering, track with 100mm wide striped track, suitable for use in complex road conditions, the overall chassis can load 200 kg equipment.
| Model | Length | Width | Height |
Spocket diameter |
Rubber track model / Width |
links |
Total weight |
Support weight |
Unit price |
| DP-BSD-40 | 540mm | 545mm | 150mm | 140mm | HL-40/40mm | 27links | 26.5kg | 50kg | $600-$900 |
| DP-CDLG-100 | 893MM | 600MM | 293MM | 253MM | BD-A/100mm | 49links | 70kg | 200kg | $900-$1200 |
| DP-DLSJ-100 | 970MM | 600MM | 250MM | 170MM | BD-A/100mm | 52links | 58.15kg | 200kg | $900-$1200 |
| DP-YCXY-100 | 1020mm | 820mm | 360mm | 300mm | BD-A | 55links | 42.85kg | 200kg | $900-$1200 |
| DP-TJBN-130 | 1080MM | 1000mm | 300MM | 193.72 | WJ-130/130mm | 53links | 198KG | 300kg | $1200-$1600 |
| DP-XAJD-76 | 940mm | 550mm | 210mm | 200mm | JQ-A/76mm | 138links | 24.15kg | 150kg | $3000-$4000 |
Various usuage of the Tank chassis for your reference .
What other rubber track we sell :
Staff work office . We speak english .
We will arrange the production after you pay and send it within one month by sae or air .
If you are interested in our products,please contact me!
